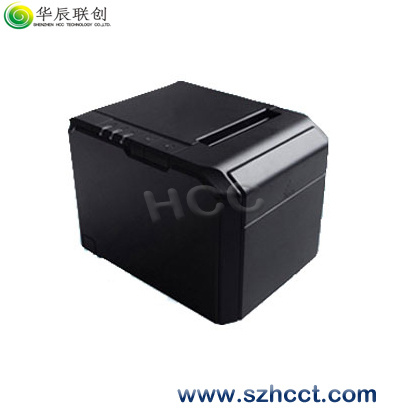

High Performance Desktop Thermal Receipt POS Printer - HGP- U80300I
Product Specifications
| Prod Model: |
HGP- U80300I |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Print Method: |
Direct Thermal Line |
| Print Width: |
64/76mm |
| DOT Density: |
512/576DOT/Line |
| Print Speed: |
300mm/S |
| Interface: |
Serial+USB+Ethernet, USB+Parallel |
| Paper Diameter: |
83mm |
Product Description
Thermal printer- HGP- U80300I
Features:
ESC/POS & START command sets compatible
Interface: Serial +USB+100M Ethernet standard, Parallel+USB optional;
Built-in WebConfig page, make ethernet setting more conveniently through IE;
100M network interface card make connection and print more faster;
Support two-dimensional bar code printing function (optional);
Standard GB18030 simplified / traditional Chinese Chinese characters library;
Built-in large data buffer to receive and store printing data;
Characters can be enlarged, underlined, character line spacing can be adjusted;
Support different density bitmap and graphics printing;
Support network printing status monitoring, computer multiple connection;
Windows driver, Linux driver, OPOS driver available
| Printing | Print method | Direct thermal line |
| Print width | 64/76mm |
| Dot density | 512/576dot/line |
| Print speed | 300mm/s |
| Interface | Serial+USB+Ethernet, USB+Parallel |
| Paper diameter | 83mm |
| Line space | 3.75mm(can be adjustive) |
| Character Size | ANK Font Font A: 12×24dots Font B: 9×17dots
Simplified/Traditional Chinese Character: 24×24dots |
| Barcode | Code page | PC437/Katakana/PC850/PC860/PC863/PC865/West Europe/
Greek/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/
PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/
1257/Thai Vietnam/PC864/PC1001/(Latvian)/(PC1001)/
(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
| Barcode mode | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128/ QRCODE |
| Fonts | GB18030 |
| Buffer | Data | 128K bytes |
| NV Flash | 256K bytes |
| Power | Cashdrawer out | DC 24V/1A |
| Power supply | AC 110V/220V,50 ~ 60Hz,DC 24V/2A |
| Physical properties | Weight | 1.25kg |
| Dimension | 175×140×137mm |
| Environment | Work environment | Temperature:0 ~ 45,Humidity:10 ~ 80% |
| Storage environment | Temperature:-10 ~ 60,Humidity:10 ~ 90% |
| Auto Cutter | Reliablity | 150km |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
