Wenzhou Jason Fan Manufacturer Co., Ltd. >> High Performance Industrial Ventilator Cabinet Ventilation (FJK6626. M)

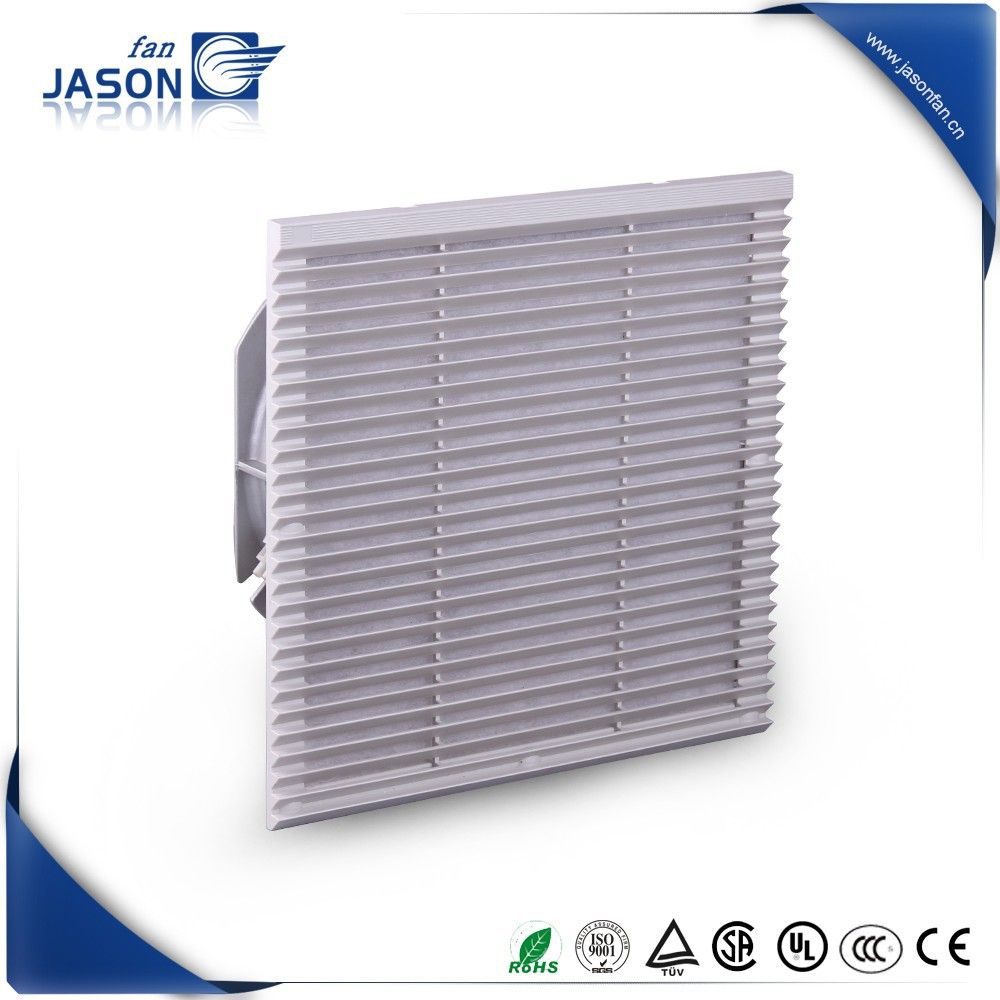

High Performance Industrial Ventilator Cabinet Ventilation (FJK6626. M)

Name: High Performance Industrial Ventilator Cabinet Ventilation (FJK6626. M)
Brand: china-manufacturer-directory.com
SKU: 606890945
Availability: InStock
Rating: 4.8 (92 reviews)

Supplier:	Wenzhou Jason Fan Manufacturer Co., Ltd.
Price:	US $ 30-34/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

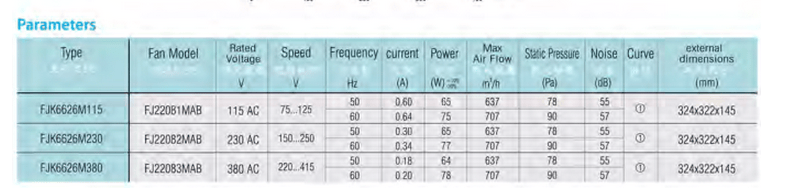

Product Specifications

Prod Model:	FJK6626. M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Product Type:	High Performance Industrial Cabinet Ventilation Fa
Warantee:	One Year Guarantee Time
Usage:	for Refrigerate, for Air Conditioner, for Manufa
Blade Material:	Cast Iron
Electric Current Type:	AC
Mounting:	Wall Fan
Certification:	CCC

Product Description

Characteristics for Ventilation

It comprises of a axial fan, a protective housing on the front and rear surfaces and filter designed to retain dust particles.

The ventilation that equip the fans must be cleaned and replaced regularly.

This ventilation can be replaced during operation without risk of touch with the rotating part.

Material of filter pad: 100g/ M3 nylon fiber compound, Filtration efficiency up to 7 3%.

Operation Temperature/Humidity Range: (under unconcretionary state) -20°C ~ +75°C (temperature), 0% ~ 95% (himidity)

RAL 7035 grey is the standard offer with the possibility to change to RAL 7032 by means of a replacement grille.

Bear in mind the pressure losses caused by the outlet element (grille with filter, ventilation louvre or simple opening) when determining the fan flow rate.

Protection class: E N 60 5 29 I P 5 4 (not suitable for outdoor equipment).

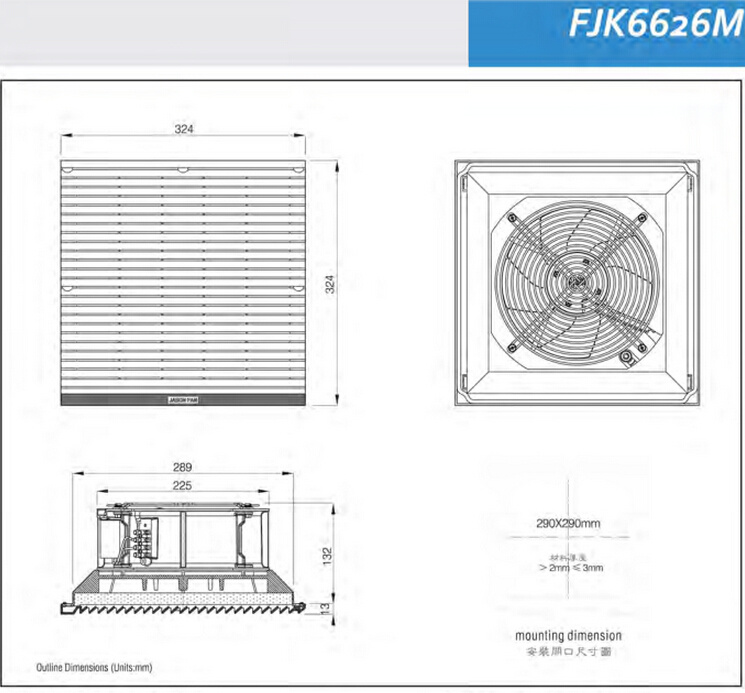

Dimensions

installation: No need of screw, snap-in installation

Power connection: Terminal connection (wire connection)

With seal ring

Maximum weight: 2.97kg

We are specialized in developing and producing axial fan, centrifugal fan and air filter in different sizes with high quality in the cooling and ventilation field. All of our products are reliable and they can work in harsh circumstance efficiently. They are featured in High airflow, Low noise and Endure life.

Jason Fan takes charge in offering the newest techniques information and high-qualified design of products to all corporations. We took the spirit of this city and named our company Jason Fan.

Since our company came into existence, it develops a worldwide market with an unbelievable speed. Now clients from Australia, South Africa, Spain, Italy and other countries all designate to use our products. At the same time, we have set up a selling web-system which covered almost all main cities in China such as Beijing, Shanghai, Chengdu and so on.

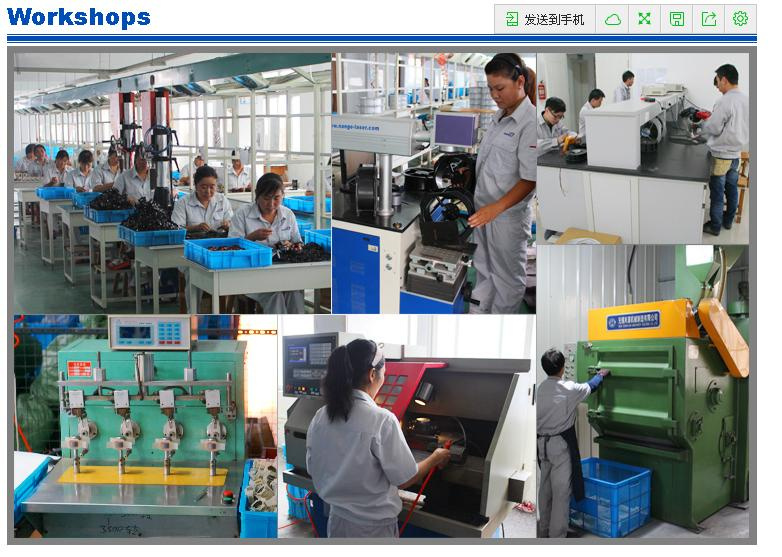

Jason Fan has already passed the ISO9001: 2000 national authentication. And its products have received CSA, RoHS, CE, CCC certificates in and out of China. As our company develops quickly and steadily, up to March 2006, we have owned three factories, covered almost 4, 000 square meters. At present, our monthly capability is more than 200, 000 units fans, 89% of which are produced by ourselves, including mold design, mold pouring, SMT disposal and all other assembling.

Devoting to the development of fan and insisting in high quality is the spirit and principle of our company. We will try our best to satisfy the most rigorous requires of the customers and to make Jason Fan a worldwide welcomed brand.
