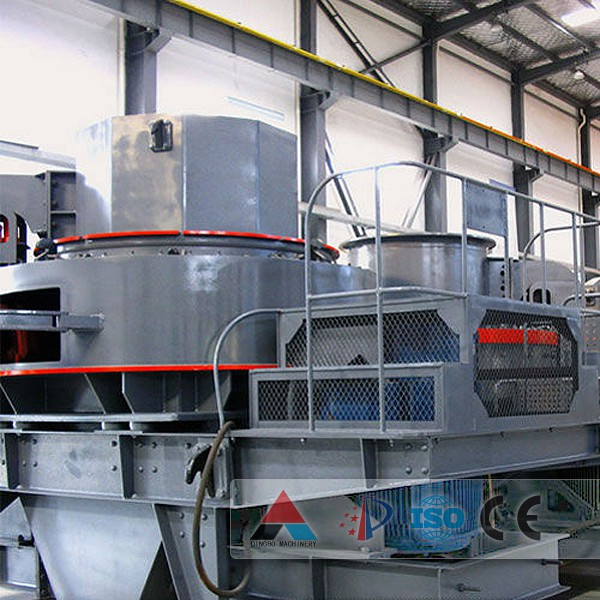

High Performance VSI Crushing Machinery for Sale
Product Specifications
| Prod Model: |
VSI-7611 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Crusher Plant for Sale |
| Warranty: |
One Year |
| Wearing Parts Supply: |
The Whole Life |
| Export Markets: |
Global |
| Crushing Style: |
Impact |
| Drive: |
Electric |
| Finished Surface: |
Cut Off Tool |
| Compressive Strength (',For Crushing): |
>300MPA |
| Application: |
Stone Industry |
| Crushing Degree: |
Coarse Crusher |
| Type: |
Vsi Sand Maker |
Product Description
VSI Sand making machine is a newly researched equipment, with international advanced level.It is especial suitable for making building sand and paving sand. Because of its low wearable feature, sand making machine is also used in high abrasiveness and secondary crushing industry.The sand making machine integrates three crushing modes, and can continuously work for 720 hours. Higher crushing chamber, greater crushing impact. During the parts and material procurement, production and processing, the quality is strictly controlled. Wearing parts is optimally allocated for longer service life.
Working principle:
Stone is crushed by hitting other stones. Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several tomes; Finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported to sand washing machine; However overlarge material will go back to sand maker to be recrushed. Output sizes can be made accoding to customers requirement. If input size is largeer than the designed size, other crushing equipment will be necessary.
Advantages and Features:
Rotor design of deep-cavity is optimized then the amount of matgerials is increased by 30%.
Round guard plate can have a U-turn after partially wearing, thus to improve material utilization.
Special sealing structure in the bottom of the spindle to ensure no oil sealing and leaking.
model | VSI7611 | VSI8518 | VSI9526 | VSI1140 |
| Capacity(t/h) | Feeding at center and sizes | 120-180 | 200-260 | 300-380 | 450-520 |
| All feeding at center | 60-90 | 100-130 | 150-190 | 225-260 |
| Max. feeding size(mm) | Soft material | < 35 | < 40 | < 45 | < 50 |
| Hard material | < 30 | < 35 | < 40 | < 45 |
| Rotating speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 |
| Double electric motor power(kw) | 110 | 180 | 264 | 400 |
| Overall dimension(mm) | 3700*2150 *2100 | 4140*2280 *2425 | 4560*2447 *2778 | 5000*2700 *3300 |
| Weight (t) | 7.8 | 10.3 | 16 | 22 |
| voltage | 380v; 50Hz |
