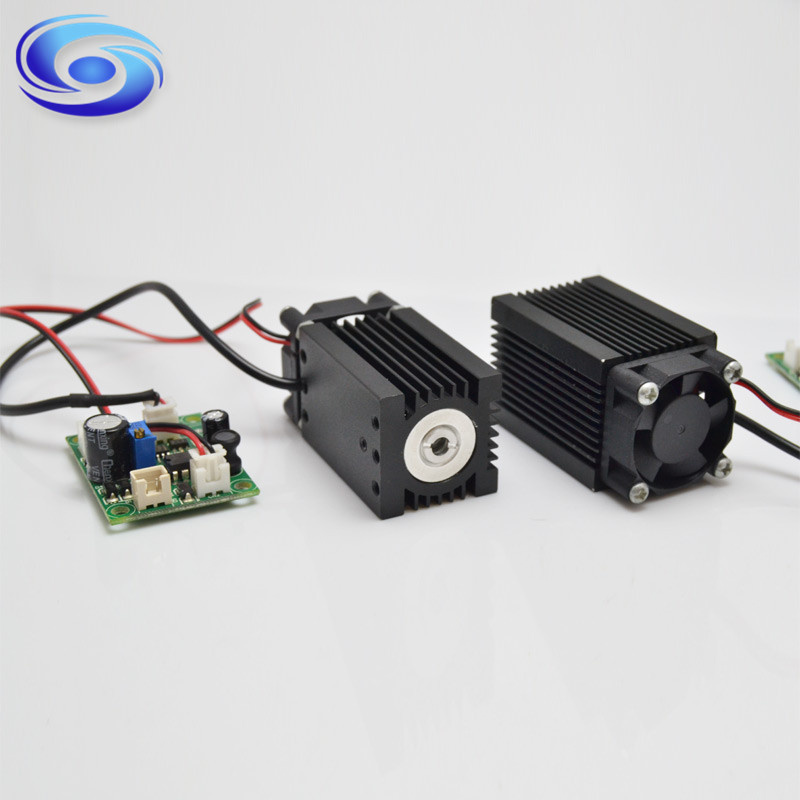

High Power 450nm 1.6W DOT/ Cross/ Line Type Laser Module
Product Specifications
| Prod Model: |
JLM450-1.6W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
440nm~455nm |
| Optical Output Power: |
1.6W |
| Light Color: |
Blue |
| Power Characteristic: |
High Power |
| Life Time: |
10000 Hours |
| External Dimension: |
33*33*60mm |
| Laser Diodes: |
Nichia/Osram |
| Beam Spot: |
DOT/Line/Cross |
| Operating Voltage: |
12V |
| Temperature Control Way: |
Fan |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Laser Diode |
| Package: |
Through Hole |
| Application: |
Lighting, Cutting, etc |
| Model: |
Jlm45160z-N72 |
| Brand: |
Bu |
Product Description
Features:
1. 445nm 1.6w Laser Diode Type
2. Blue Laser Module
3. Dot/Line/Cross Type
Product Description
| NO | Item | Parameter | Unit |
| 1 | Peak Wavelength | 450±5 | nm |
| 2 | Optical Output Power | ≤ 1.6 | W |
| 3 | Operating Voltage | 11 ~ 12 | V |
| 4 | Operating Current | ≥ 1.3 | A |
| 5 | Operating Case Temperature | -5 ~ 45 | ºC |
| 6 | Preheating Time | 0 | Sec |
| 7 | Standard Output Power | 12 | W |
| 8 | Temperature Control Way | Fan | - |
| 9 | TTL Output Power | 10 | W |
| 10 | TTL Working Frequency | 0~10K | Hz |
| 11 | Laser diodes | NDB7472
PLP B450 | NICHIA OSRAM |
| 12 | Safety Grade | Class 4 | - |
| 13 | External dimension | 33*33*60 | mm |
| 14 | Wire Length | 200 | mm |
| 15 | PCB Dimension | W33*L44 | mm |
| 16 | Storage Temperature | -40 ~ 85 | ºC |
| 17 | Life Time | ≤10000 | Hour |
| 18 | Beam Spot | Dot/Line/Cross | - |
