Product Specifications
| Prod Model: |
HL65-100M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life Span: |
> 8, 000hrs |
| Delivery Time: |
10-20day Depending on The |
| Max. Forward Voltage: |
220V |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
Customized |
Product Description
1, Large Optical Power output greater than 200mW
2, Good Alignment
3, Small beam divergence
4, High Brightness
5, With TE cooler

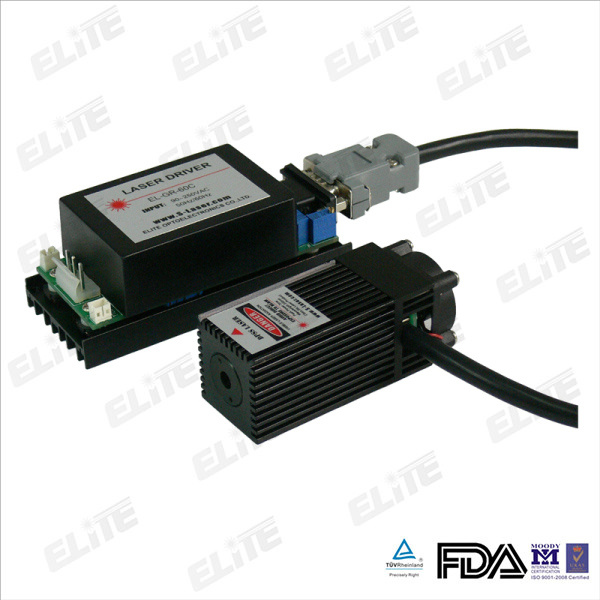

High Power Laser Diode Module HL65-100M
Key Features
1, Large Optical Power output greater than 200mW
2, Good Alignment
3, Small beam divergence
4, High Brightness
5, With TEcooler
High-brightness red laser module is the red laser module with optical power output greater than 200mW. The wavelength is mainly 635nm and 650nm. Such laser module has large optical power output, good alignment, and small beam divergence, which is applicable to the high-brightness working environment as well as the long working distance requirement (such as stage lighting or landscape engineering, etc. )
Model |
HL65-100M |
Wavelength |
650nm |
Output power |
>80mW |
aperture |
<0.2mrad |
Beam size |
8*12mm(@20m) |
Lens |
Glass |
Dimension |
22*80mm 26*70mm 26*90mm 42*42*80mm |
Elite Optoelectronics Co., Ltd. is a leading designer and manufacturer of laser diode modules, DPSS laser module and laser instruments. With experienced R&D team and large-scaled production capacity, Elite is world-class laser diode module supplier. Elite's products have been successfully used in a wide range of diversified applications from industrial level, laser pointer, barcode scan, medical instruments, detecting instruments, laser component, bore sight, laser collimator, laser performance system, laser tools etc.
Elite's product line includes an extensive range of laser modules and systems for the laser/electro-optic industry. Our laser modules come in wavelengths ranging from 405nm to 980 nm with various power ranges. With certificates of ISO 9001: 2000, FDA, IEC, GB, etc, we are assuring our customer with quality, reliable and consistent products deliver.
Elite has successfully developed the Industrial Green Laser Module (GLM) which has a wide working temperature ranging from 0-45° C. The GLM is in stable operation, low power output and small size of 8 x 28mm, 10 x 30mm.
Share your ideas, Elite's experienced, highly skilled and dedicated technical staff will help you to solve your design problem and help with your selection of either stock or customized products for special application.
