High Power Variable Resistor Controlled by Hand (DSR)

Product Specifications

Prod Model:	DSR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance Values:	1r-30kr
Rated Power:	25W-3000W
Temperature Coefficient:	350ppm
Color Of Variable Resistor:	Grey
Material Of Lead:	Chromium Alloy
Adjust Method:	by Hand
The Dimension Of Variable Resistor:	Variable
Delivery Time:	2-5days
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Resistance:	Variable Resistor
Package Type:	Throught Hole
Type:	Variable Resistor

Product Description

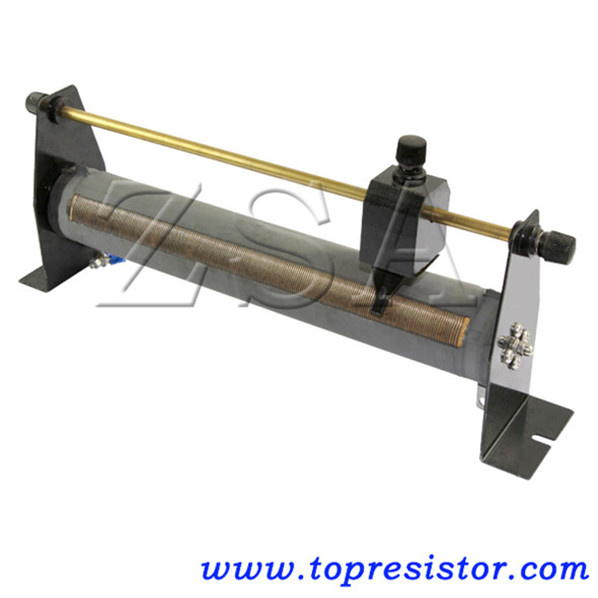

High Power Variable Resistor Controlled By hand
1. Copper wire or chrominum alloy wire is wound on the ceramic tube coated with non-flammable resin, good dissipation, high stability, and long life.

2. High power rating, high overload.

3. The DDR series own higher resistance value than the DQR series.

4. Widely used in power supply, transducer, elevator, arena audio and

Lifting, Braking, Ship, Load equipment, high requirement equipment

Industry, ect.

5. For customer specifications, can be made into variable resistor.

Common specification 50W20Ω , 80W20Ω , 100W20Ω , 100W100Ω ,
150W10Ω , 150W20Ω , 200W20Ω , 200W200Ω , 300W20Ω , 300W150Ω ,
300W200Ω , 400W150Ω , 500W100Ω , 800W75Ω , 1040W50Ω ,
1040W75Ω , 2000W40Ω , 2500W50Ω , 3000W75Ω Ect.
