Product Specifications
| Prod Model: |
N750C-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
7X |
| Objective Lens Diameter: |
50mm |
| Weight(Binocular Only): |
1210g |
| Size(Mm): |
193×78×198 |
| Type: |
Binocular |
| Usage: |
Travel |
| Magnification: |
7X |
| Lens: |
Glass |
| Aperture: |
50-100mm |
| Function: |
Waterproof |
| Structure: |
Binocular |
Product Description
Usage of the calculator dial:
The calculator dial can be used to determine distance quickly and easily without calculation. The calculator dial includes a triangular Angle Index Mark marked "ANGLE", a？rotational？Active？Ring and a Fixed Scale marked "DISTANCE".？
There are two scales in the Active Ring, one above is View Angle Scale and another is Size Scale marked "OBJECT SIZE".
First, measure the view angle value of an object, and rotate the Active Ring and place this value at the Angle Index Mark.Then, find the division indicating the size of the object it indicate a point at the Fixed Scale, look at the Fixed Scale, the distance is shown at that point on the Fix Scale.

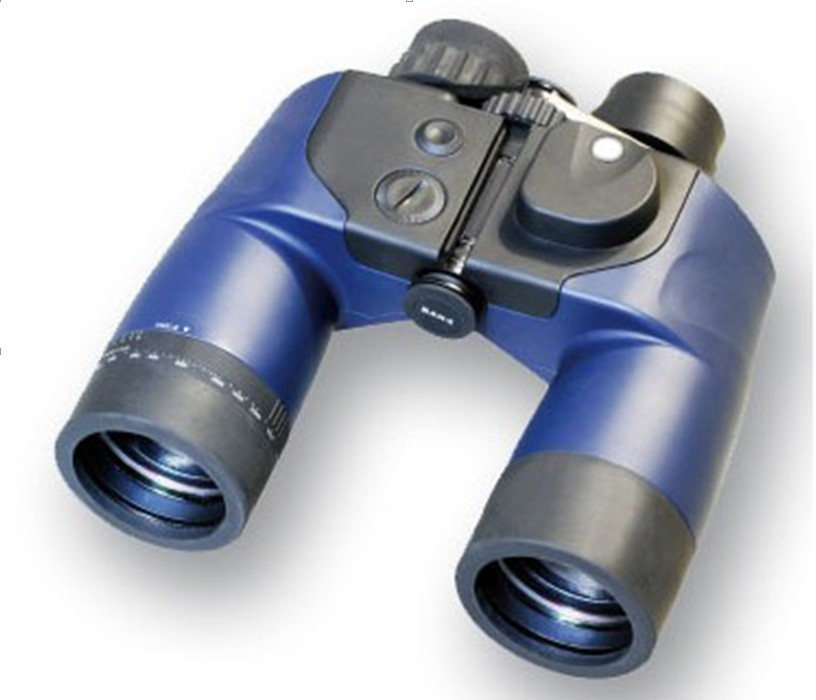

Product Photos:
|
Model No. |
N750C-1 |
|
Magnification |
7× |
|
Objective Diameter(mm) |
φ50 |
|
Exit Pupil Diameter(mm) |
φ6.5 |
|
Field of View(View Angle) |
6.6° |
|
MM/1000M |
116m/1000m |
|
FT/1000YDS |
348ft/1000yds |
|
Eyes Relief(mm) |
23.4 |
|
Minimum Focus Distance(m) |
9 |
|
Relative Brightness |
42.3 |
|
Dusk Index |
17.8 |
|
Resolution(Center) |
≤5.5″ |
|
Type of lens |
Porro Prism |
|
Lens system |
4groups 6pieces |
|
Focus system |
Mid focusing |
|
Focusing lens |
Eye |
|
Diopter System |
Right |
|
Diopter comp |
-4~+4SD |
|
Interpupillary Dist |
56~72 |
|
Nitrogen Filled |
Yes |
