High Precision AC Servo System (0.1KW- 100KW)

Name: High Precision AC Servo System (0.1KW- 100KW)
Brand: China-Manufacturer-Directory.com
SKU: 698018632
Availability: InStock
Rating: 5 (72 reviews)

Supplier:	Wuhan Golden Age Motor Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GK6 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Protection Class:	IP64 or IP54
Insulation Class:	F
Vibration Level:	Class N
Painting Color:	Gray Without Gloss
Function:	Automatic Control
Certification:	CE
Task:	Following
Structure:	Closed-Loop
Signal:	Continuous
Mathematical Model:	Non-Linear
Material:	Aluminum Alloy
Customized:	Customized
Condition:	New

Product Description

Golden Age, focus on servo motor for 14 years, has a wide range of motors(0.1Nm--1000Nm), also, special design according to customers' requirement is available. Golden Age, you best choice of servo motor.

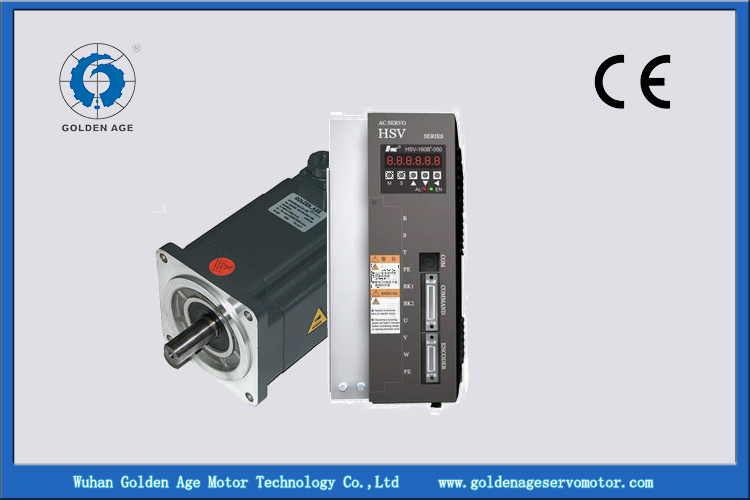

GK6 AC Servo System:

1. Range: 0.1Nm(30W)--------1000Nm(250KW);

2. Standard encoder: 2500ppr incremental encoder, it can also be resolver, absolute encoder or others;

3. It can be special designed according to your requirement;

4. The motor can be matched with our own driver or other brand driver;

5. Features: Compact, high power density;
Low inertia, high response;
Constant nominal torque on overall speed range;
Low noise, low vibration;
Small torque wave at low speed, high balancing resolution, running stable under high speed;
Good performance with competitive price.

6. Service: Your requirement will be replied with 24 hours;
Lead time will be within 15 days for standard type;
Strict quality control system;
Perfect after-sales service, etc.

Technical Specification:

Motor Type	AC Servo Motor (Permanent magnet synchronous motor)
Permanent magnet material	Very high JHC rare-earth permanent magnet material
Insulation Class	Temperature class F for a winding temperature rise of T=100K at an ambient temperature of +40ºC (+104ºF).
Speed Feedback	Standard: Squire wave photoelectrical incremental encoder (with U, V, W signal) Option: 1. Resolver 2. Sin/Cos encoder 2048p/r 3. Absolute encoder
Temperature protection	PTC positive temperature coefficient temperature sensor resistance. Under 20ºC, R<=250Ω Optional: temperature sensor switch.
Mounting position	IMB5 Optional: IMV1, IMV3, IMB35
Protection Class	IP64 Optional: IP65, IP67
Cooling	Natural cooling or Force cooling
Painting	Gray without gloss Optional: All motors can be painted over with commercially available paint
Bearing	Deep Groove Ball Bearing, seals on both sides
Axial seal	Seal ring at the drive end of shaft
Shaft End	Standard: Shaft without keyway Optional: With keyway or Key or according with commercially available
Vibration Level	Class N Optional: Class R, S
Rotation resolution	Class N Optional: Class R, S
Noise	GK603=55dB(A); GK604=55dB(A); GK605=60dB(A); GK606=65dB(A); GK607=65dB(A); GK608=70dB(A);
Connector	Connector(GK603-GK610) Optional: Terminal Box Terminal Box(GK613 above) Optional: connector
Option	High reliable permanent magnet mechanic brake(Made in Germany) high resolution planetary gear box or other

Technical Data Table:

Motor series	Rated power PN (KW)	Standstill torque M0 (Nm)	Rated speed nN (r/m)	Flange size (mm)
GK601	0.03 ~ 0.09	0.12 ~ 0.41	3000 ~ 5000	40
GK602	0.13 ~ 0.40	0.60 ~ 1.60	3000 ~ 5000	60
GK603	0.75 ~ 1.00	3.20 ~ 4.30	3000 ~ 5000	80
GK604	0.25 ~ 1.00	1.60 ~ 3.20	1000 ~ 6000	96
GK605	0.35 ~ 1.32	2 ~ 6	1000 ~ 3000	110
GK606	0.50 ~ 3.30	3 ~ 15	1000 ~ 3000	126
GK607	0.50 ~ 3.30	3 ~ 15	1000 ~ 3000	126
GK608	2.50 ~ 7.00	16 ~ 42	1000 ~ 3000	155
GK610	3.00 ~ 20.00	18 ~ 115	1000 ~ 3000	192(Natural cooling) / 196(Force cooling)
GK613	3.90 ~ 45.00	75 ~ 270	500 ~ 2000	260
GK618	13.00 ~ 168.00	250 ~ 1000	500 ~ 2000	360

Application:

GK6 Series servo motor, together with its driver as a servo system, can be used in lots of applications as following:
Machine Tools; Textile Machinery; Plastic Machinery; Printing Machinery; Packaging machines; Robot; Wood Processing Machinery; Automative Production Line and other Special Purpose Machines.

Following Fairs: Welcome to visit our booth.
1. CIMT 2015

2. CHINAPLAS 2015

Golden Age, as a professional servo motor manufacturer in China, set up in 2001. At present, we have more than 200 staff, the production area is more than 10000 square meters. In the past 14 years, more than 200, 000 Golden Age servo motors are working in lots of industrial area all over the world.

We specialized in research, development and manufacturing of AC permanent magnet servo motor, AC asynchronous spindle motor, AC direct drive torque motor and AC servo kits. There are four series of motors in our production line:

GK6 media inertia AC permanent magnet servo motors:

0.0955Nm ----5000Nm; 30W-250KW

GK8 low inertia AC permanent magnet servo motor:

6KW---100KW

GM7 AC asynchronous spindle motors:

2.2KW----250KW

GZ6 AC synchronous direct drive torque motors:

22Nm----50000Nm

R&D and quality is the core of Golden Age. Listening to customers'special requirement and design the best matched servo motor is the power of innovation for Golden Age.

Golden Age, your best servo motor partner. If you can't find the right motor from the standard catalogue, contact us, we can supply you a proper solution as soon as we can. 12 Senior engineers are waiting for your good idea.
