High Precision Electrical on-Line Water Residual Chlorine

Product Specifications

Prod Model:	DRCL-99
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electrical On-Line Water Residual Chlori:	High Precision on-Line Water Residual Chlorine

Product Description

Product Instruction

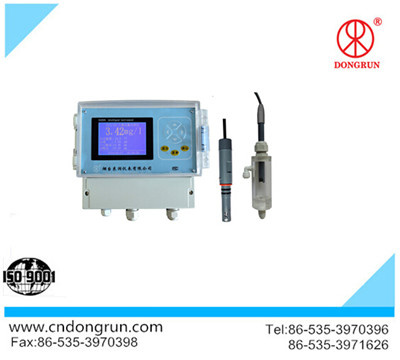

DRCL99 polarography line chlorine analyzer consists of probe, transmitter and flow cell, with a high degree of intelligence and flexibility, which can measure chlorine, hypochlorous acid, pH, temperature, can also be used to detect chlorine dioxide, widely used in electricity, water, medicine, chemical industry, food industry, water for chlorine and pH were measured continuously.

This product contains chlorine sensors, temperature sensors, and pH sensor, chlorine sensor with free calibration, maintenance of high accuracy, small size, low power consumption, temperature sensors as Standard configuration, pH sensor is optional. Display instrument has a slope correction, zero correction, real-time display function measurements, but both automatic temperature compensation, pH value Manual, automatic compensation function, the electrode measured hypochlorous compensated signal into a more accurate calculation of chlorine signal.

Technical parameter



Measurement range	0~5.00ppm (HCLO) 0~5.00ppm (ClO2)
Measurement accuracy	2%FS(0~5.00ppm)
Resolution	0.01ppm
PH	5.5~9
Service life of sensor	≥9 months
Response time	<1min (90%, 20 ºC)
Hydration time	≥1h
Calibration method	Calibration is not needed.
Temperature measurement range	1~40ºC
Temperature resolution	0.1ºC
Working temperature	0~50ºC
Ambient humidity	≤95% without condensed wager
Power supply	220VAC
Dimension	210mm*105mm*185mm(L*W*H)
Plow cell	The lowest flow:  100 L/h (keep constant flow) Interface material: PTFE or PVC Connecting pipe: PU pipe Interface size: 1/4 inch

Welcome to our factory.
Yantai dongrun Instrument Co., Ltd. Was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.
