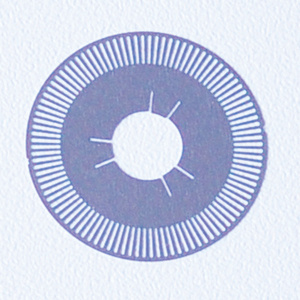

High Precision Encoder Disk (MP-03)

Name: High Precision Encoder Disk (MP-03)
Brand: china-manufacturer-directory.com
SKU: 706699405
Availability: InStock
Rating: 4.5 (77 reviews)

Supplier:	Shenzhen Zhuolida Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MP-03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.05mm
Output:	Digital Sensor
Usage:	Test
Theory:	Biological Sensor

Product Description

Field of application
Encoder disks produced in our workshops are used in many fields such as robotics, servo controls, etc.

Technical data
Encoder disk on film substrate
Thickness of film: 0.18 mm
Diameter: 3 to 120 mm
Min. Split: 0.015 mm
Encoder disk on glass substrate
Thickness of glass: 0.2 to 12 mm
Diameter: 3 to 120 mm
Min. Split: 0.002 mm
Layer: Shiny chromium, anti-reflecting chromium
Material:
Hard enough to prevent transmutation
Tight toleranceAt competitive price.

Main products	Encoder disks, Fine screens, Filters, RFI and EMI shielding, Springs and Contacts, Shims, Covers and Lids, Apertures (Metal material thickness is ranging from 0.02 mm up to 1.5 mm)
Our advantages	1. Advanced & Standardization workshops and facilitates.
	2. High-tech and high precision manufacturing equipment.
	3. Strict ISO14001: 2004, ISO9001: 2008 standards.
	4. RoHS compliant & enviroment friendly products.
	5. Professional technical specialists and management personel
	6. Large project research and engineering partner ship service ability.
	7. Sound quality control reputation from customers all over the world!

Commercial terms & Detailed
Payment terms:	T/T, Paypal
MOQ:	≥ 100 PCS
Sample leadtime	finished in 1-2 days after receive the payment
Leadtime	within 7-15 days after receive deposit
Production capacity	General 60000 pcs per month
Available material	stainless steel, stainless iron, brass, alloy ect.
Specification	At clients' request
Quality control	100% inspection before packing or shipment
Packing	1. According to clients' request 2. Negotiable

Shipment (suggestion )	DHL, EMS, UPS etc

Main products:
Since our establishment in 2002, we have been intensely focusing on the research and production of high precision metal parts by using the chemical etching and laser cutting technology. Typical applications include encoder disks, RF/EMI shields, screens, speaker meshes, lead frames, clean blade for printer, metal sign and many more. The photo etching process (also called photo chemical etching and chemical milling) allows us to produce intricate metal components with close tolerance.
Material and thickness:
Photo etching eliminates the cost of hard tooling, improves design flexibiliby, and shortens lead times while eliminating burring and sress problems. The metal material we can chemical etching including stainless steel, spring steels, copper, Beryllium copper, brass, aluminum, molybdenum. Material thickness is ranging from 0.03 mm (0.0012 inch) upto 1.5 mm (0.06 inch).
Forming and finishing:
Julid manufactures formed parts by combining photochemical etching with inexpensive tooling. We can offer many value added option of surface treatment, includingGold, Silver, Tin plating, plus electropolishing, surface polishing, paint.
