Product Specifications
| Prod Model: |
TFM2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Switching Sensor |
| Usage: |
Liquid Level Sensor |
| Theory: |
Magnetic Sensor |
Product Description
Specifications

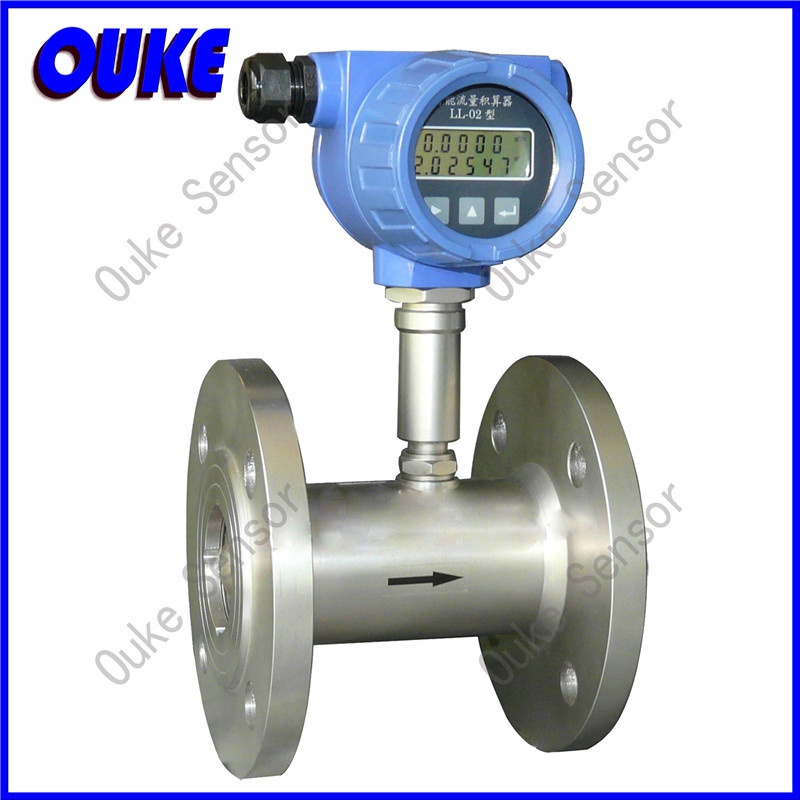

Turbine Flow Meter specially used for various industrial application. The Turbine Flow Meter engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate.
The Turbine Flow Meter senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal. Summation of the pulsating electrical signal is directly related to the total flow. The frequency is linearly proportional to flow rate which is converted to electrical signed 4-20mA.
1. High accuracy and long life
2. Easy maintenance and installation
3. Widely used for factory, oil field, chemical, metallurgy, etc
Applications
The sensor is suitable for measuring the liquid without any impurity such as fiber and particle and which does not corrode stainless steel 1Cr18Ni9Ti, 2Cr13, adamantine spar Al2O3 and rigid alloy.
The instrument parameter given by the inspection certificate is suitable for the situation which the media viscosity is smaller than 5X10-6m2/s in the working temperature. In respect the liquid with the viscosity larger than 5X10-6m2/s, calibrate the sensor according to the actual liquid, and then use as per the new instrument parameter.
If users need to use the sensor of special type, it can order under the negotiation with us. If it needs explosion-proof sensor, specify in the order.
Features
2 Wire System
Simple & Cost Effective Construction.
Provides Wide Flow Ranges
Local Display As 8 X 1 Lcd
Outstan
Main Technical Parameters:
|
Item |
Turbine flow meter |
Nominal Diameter(mm)
and Connection method |
4, 6, 10, 15, 20, 25, 32, 40 (tread connection)
15, 20, 25, 32, 40 (tread and flange connection)
50, 65, 80, 100, 125, 150, 200 ( flange connection) |
|
Accuracy Class |
Regular accuracy ± 1%R, ± 0.5%R,
highest accuracy ± 0.2% R |
|
Measurement Range Rate |
1: 10, 1: 15, 1: 20 |
|
Instrument material |
304 stainless steel; 316L stainless steel; etc. |
|
Medium Temperature ( Dere C) |
-20 ~ +120 C |
|
Ambient Conditions |
Temperature: -10~+55C,
Relative Humidity: 5%~90%
Atmosphere Pressure: 86~106Kpa |
|
Signal Output |
Sensor: pulse frequency signal,
low level≤ 0.8V
high level≥ 8V.
Transmitter: current signal, 4~20mA DC, two wires |
|
Supply Power |
Sensor: +12V DC, +24V DC (option)
Transducer: +24V DC
Scene display type meter: 3.2V Lithium cell |
|
Signal Transmission Line |
STVPV 3× 0.3 (three wires), 2× 0.3(two wires) |
|
Transmission Distance |
≤ 1000m |
|
Signal Line Interface |
Internal thread M20× 1.5 |
|
Explode-proof Class |
ExdIIBT6 |
|
Protection Class |
IP65 |
