Introduction
High accuracy, large measuring range, good stability
Could measure the micro motion

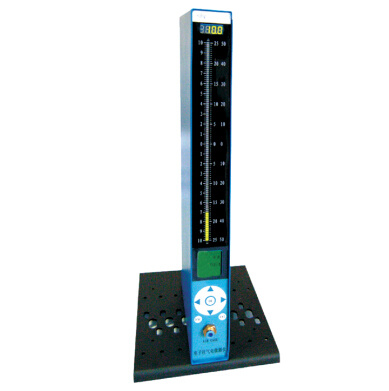

New designed micrometer
New comparative circuit
Simple-structured
Easy-to-read
Could be spliced
Applications
In support use of pressure pneumatic probe and measuring device to measure the dimensions as Inner diameter, outer diameter, slot width, pitch-row, thickness, roundness, conicity, coaxiality, planeness, parallelism, verticality, air impermeability. And Widely applied in the areas of precise machinery manufacturing, bearing, automobile, motorcycle, light textile, national defense scientific research department.
1. Basic Type:
1) Display mode: 1. Tricolor LED column display, 2. Small LCD screen display (with backlight), 3.3-phrase and half measuring scale display
2)Touchable keyboard input, could set measuring range, channels number, operate mode, tolerance zone, display mode (in section or in point), nominal size, communication mode.
3) Stability: ≤ 0.4μm
2. Advanced Type: Functions as signal input&output, control, online communication could be customized
1)Output: Support relay output, OC gate output, BCD code output.
2)Communication Interface: support RS232 or RS485.
3)Support the I/O, program-customized
Model |
Column Resolution Ratio |
LCD Screen Resolution Ratio |
Indication Variation |
Indication Error |
DZL-3D-20 |
0.2μm |
0.1μm |
≤0.2μm |
≤2%F.S. |
DZL-3D-50 |
0.5μm |
0.5μm |
≤0.5μm |
DZL-3D-100 |
1μm |
1μm |
≤1μm |
≤3%F.S. |
Working Environment
Power Source: AC220V±10%
Ordering Instructions
1. Size (mm): 165x50x500
2. Weight: 4.5kg/device
