Product Specifications
| Prod Model: |
QFB-A |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
Product Description
Introduction

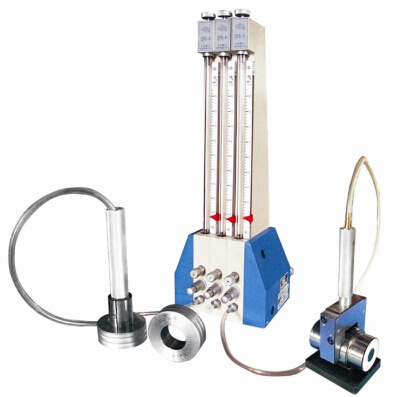

The pneumatic measuring instrument series won the Silver Award of National Best Products with features of high stability, reliable performance, simple structure, high accuracy, easy operation, non-contact measure, etc, and are widely used in the mechanism industry. We offer various types and specialized pneumatic measuring instrument devices according to customer's requirements.
Application
Matched with the measuring head and devices made by our company, the pneumatic measuring instrument could measure the inner diameter, outer diameter, height, slot width, hole distance, depth, thickness, circular degree, conicity, coaxiality, straightness, planeness, depth of parallelism, verticality, center-to-center distance, venting quality, air impermeability and so on.
Features
Compared with traditional mechanical measuring instruments, the float pneumatic measuring instrument is featured with
1. Apply in measuring various sizes, dimensions, shapes, position tolerance, and could apply in the areas that the traditional gauge could not measure such as inner diameter of the deep hole, tiny hole, and the width of the narrow slot, etc.
2. High magnifying power, low personal equation, no hysteresis error;
3. Easy to operate and read the scale, could use in continuous measurement; multiple results could be read out easily when measured by the multiple-tube measuring instrument.
4. Non-contact between the measure head with the component surface to reduce the effect of the physical force and to protect the components which is very good to use in the measure of thin-walled components and metal components
5. Flexible pipe connection between the gauge main part and measure head, so it's convenient to place the measuring instrument and components
6. Simple structure, reliable working performance, convenient to adjust, use and maintain
Working Requirement
Air Source Working Pressure: 0.3 ~ 0.7MPa
Notice for choosing the gauge
1. This product could be installed to multi-tube (10 tubes at most).
2. Dimensions (length*width*height)
Mono-tube: 134×112×524mm
Multi-tube: 29mm added when one more tube is installed
3. Weight: 4.4kg ( 2.3kg added when one more tube is installed)
4. Model description
Product Code: QFB-A-2-1 Q-Pneumatic, F-Float indicator, B-Basic, A-Type A, 2- magnifying power is 2000 times, 1-number of tube.
Notice for ordering the gauge
1. Please choose the suitable magnifying power and tube number according to the dimension tolerance and the measuring requirements.
2. We could assist you to choose the suitable magnifying power and tube number according to your measuring requirements.
