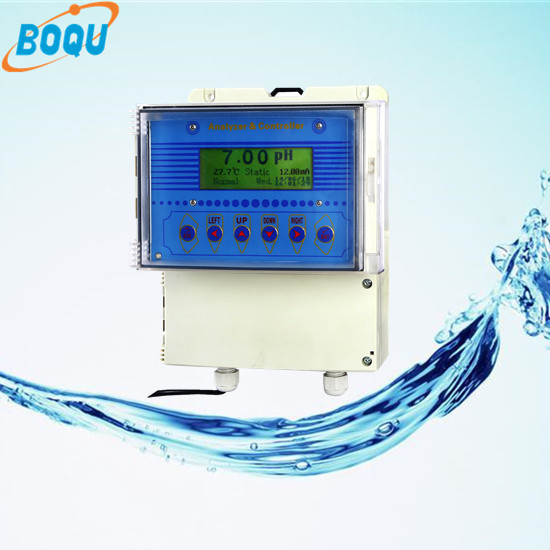

High Precision Online Digital pH Meter (PHG-3081B)
Product Specifications
| Prod Model: |
pHG-3081B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Dimension: |
146 (Length) X 146 (Width) X 180 (Depth) Mm |
| Measuring Range: |
0~14.00pH |
| Size: |
138X138mm |
| Analysis Method: |
Physical Analysis |
| Type: |
Resistance Moisture Meter |
| Portable: |
Online |
Product Description
DescriptionPHG-3081B Industrial pH meter is a new pH analyzer developed by our Company. It is a highly
intelligent on-line continuous monitoring instrument consisting of sensor and secondary meter.
It can be used together with triplex or duplex electrodes to meet various applications. With pure
water and hyperpure water electrode, it can be used to measure the pH value of water with an
electric conductivity less than 3µS/cm (such as chemical supply water, saturated vapor, condensate, etc. ). It can be widely used for continuous pH monitoring of various water in many industries such
as power, chemical engineering, environmental protection, medicine, food, and so on.
Features？ Highly intelligent: industrial pH meter uses high precision AD conversion and singlechip
micro-processing technology, and has such functions as measuring pH value and temperature, automatic temperature compensation, and self-check of the instrument. ？ High reliability: The components are integrated onto a circuit board, without complex function switches, knobs or potential devices. ？ Double high-resistance inputs: It introduces the latest components, and the impedance of the
double high-resistance inputs is up to 1012Ω, providing high protection against interference. ？ Solution grounding: The interference from ground circuit can be eliminated. ？ Isolated current outputs: It introduces light electric coupling technology, providing high protection against interference and realizing long-distance transmission.
Technical indexes1. Measurement range: pH value: 0~14.00pH, precision 0.01pH; Temperature: 0~99.9ºC, precision 0.1ºC; Electric potential: –999.9~+999.9mV, precision 0.1mV. 2. Range of automatic temperature compensation: 0~99.9ºC, 25ºC is the base; 3. Tested water sample: 0~99.9ºC, 0.6MPa; 4. Automatic temperature compensation error of electronic unit: ±0.03pH; 5. Repetition error of electronic unit: ±0.02pH6. Stability: ±0.02pH/24h; 7. Input impedance: ≥1012 Ω; 8. Clock precision: ±1 minute/month; 9. Isolated current output: 0~10mA (load <1.5 kΩ), 4~20 mA (load <750 Ω); 10. Output current error: ≤±1%FS; 11. Data storage quantity: data of 1 month (1 point per 5 minutes); 12. High and low alarming relay: AC220V, 3A; 13. RS485 communication interface; 14. Power supply: AC220V±22V, 50Hz±1Hz; 15. Protection grade: IP65; 16. Outline dimension: 146mm X 146mm X 180mm; Opening dimension: 138mm X 138mm; 17. Weight: 1.8kg; 18. Working condition: Ambient temperature 0~60ºC; Relative humidity <85%; 19. Triplex or duplex electrodes can be used.
Shanghai Boqu Instrument Co., Ltd was established in 2007, and located in Kangqiao Town Pudong New Area Shanghai. It is the professional manufacturer of electrochemical instrumentation and electrode combine with the R&D, production and sales. The main products include pH, ORP, conductivity, ion concentration, dissolved oxygen, turbidity, alkali acid concentration and electrode etc.
Our company focus on product quality and after-sales service, adhere to the quality principle of"Aspiring excellence, Creating perfect", obedience to the work style of "Integrity rigorous, Pragmatic and Efficient", to promote "Innovation, Development and Win-Win " spirit of enterprise, with advanced technology and equipment, professional technology as the foundation, high-quality products and perfect after-sales service won the trust of our customers and partners!
We sincerely hope that on the basis of mutual benefit with friends at home and abroad to join hands in creating development and harmonious! Welcome domestic and foreign merchants to come to seek common cause!
