High Precision Open Channel Flow Meter
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
4-20mA, RS485 (Optional) |
| Response Time: |
0.5s |
| Delivery Time: |
1 to 2 Weeks |
| Sensor: |
Clamp-on/External |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
| Principle: |
Ultrasonic Wave |
| Measuring Principle: |
Transit-Time |
| Accuracy: |
± 1% |
Product Description

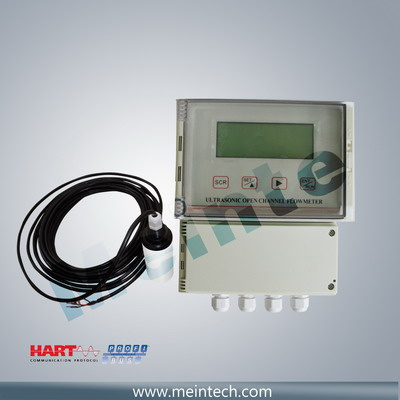

High precision Open Channel Flow Meter
Features
Adopt sing digital signal processing technology ,suit for various condition application.
Advanced signal environment display (oscilloscope technology),calibration ,installation is more easy
High speed reliability Single-Chip Microcomputer processing ,to enhance instrument speed and stability
Multi-data filler shape technology to ensure detection reliability and stability
Using16 Digits D/A converter to enhance current accuracy and resolution
Digital communication output RS232,can be connected to computer or other data logging module
Free maintenance
Specification
1. flow range :0Liter/Sec~100m3/Sec ( Depends on flume type and specification )
2. Total flow : 12digits Decimal values, Accumulated over automatically returns to zero
3. Flow Precision:1-3%
4. Measured distance range :3 meter
5. level precision :0.25%
6. resolution : 1mm
7. Working temperature :-20~70ºC
8. IP degree: Display part IP65; probe part :IP67
9. Power supply : 220VAC or DC24V (please refer wire diagram on instrument)
10. 4~20mA current output ( correspond to instantaneous flow rate)
Maximum load 750Ω
11. RS485 Port (appendix RS485communication instruction)
12. Controller has four relays output13. Screen display :128 64 LCD dot matrix display
Application :
Sewage treatment plants
Industrial discharges
Pre-packaged
Treatment plants
Municipal sewers
Residential developments
Irrigation channels
Agricultural runoff
Storm sewer runoff
|
Model |
OCFM-300K |
|
Flow range |
0 L/S~10m 3 /S(Depends on Parshall flumes weir, Rectangular weir, Triangular weir ) |
|
Total flow |
8 Digits Decimal , it will automatic return to zero as soon as it is full |
|
Precision |
1.00% |
|
Measure distance range |
3 meter |
|
Measure distance precision |
0.25% |
|
Display resolution |
1mm |
|
Ambient temperature |
-20 °C~55 °C |
|
Protection degree |
IP65 |
|
Power supply |
220V±10% or 24VDC |
|
Output |
4-20mA |
|
Control output |
Relay 250VAC 1A or DC30V 1A |
