Product Specifications
| Prod Model: |
BM1000F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
50g |
| Size: |
6*3.5*3cm |
| Color: |
Grey and Orange |
| Screen: |
LCD Display |
| Application: |
Measurement |
| Transmission: |
Bluetooth |
| Date Collection: |
Imported Chip |
| Parameter: |
Blood Oxygen and Pulse Rate |
| Accuracy: |
0.05 |
| Classification: |
Physiological Functions of Diagnosis and Monitoring Equipment |
| Certification: |
ISO9001 |
| Group: |
All Person Group |
Product Description

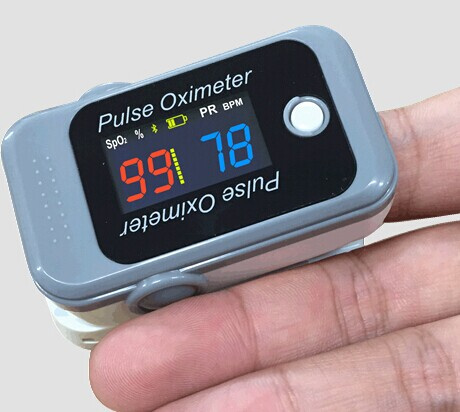

The new LCD screen Fingger Pulse oximeter
Product Instruction
Dynamic blood oxygen monitoring assists to assess the severity of sleep apnea, suitable for obstructive sleep apnea syndrome.
Small in volume, light in weight and convenient in carrying, operation of the product is simple.
Test spo2 and pulse frequency, LCD display, pulse waveform and numerical value can be displayed
Function with Bluetooth, computer playback, Windows analysis software platform
Support iPhone, Android and PC (only suitable for Bluetooth type)
Data can be stored in app at every 10 seconds for 12 hours
Product Specification
1. Support iPhone, Android and PC (only suitable for Bluetooth type)
2.Data can be stored in app at every 10 seconds for 12 hours
3.Compact size, easy installation, high reliability and accuracy
4.Applicable to adult, pediatric patients
5.2 standard 1.5V AAA alkaline batteries, 2 direction of display
6.Graph includes plethysmogram, pulse strength bargraph and PR digits
7.Communication protocol compatible with BCI
8.Converting between Bluetooth
9.Enable all the values displayed in the evaluation software on personal computer
Operation Instructions
IOS/Android App
1. Download 'Spo2' app at App store or Google Play, open 'Spo2' app and Bluetooth.
2. Creating user, search the device 'BerryMed'.
3. Start testing.
PC Software (Please ensure you have a Bluetooth receiver.)
1. Install and open the Spo2.exe.
2. Find the right serial port according to the Bluetooth serial number and connect.
3. Start testing.
Packing List
| The standard configuration |
| Finger pulse oximeter | 1pc |
| 1.5V AAA battery (optional) | 2pc |
| Hang lace (optional) | 1pc |
| The operation manual | 1pc |
Technical specification
| Technical specification |
| Size | 58x34x30 mm |
| Weight | 50g(without battery) |
| Range | Accuracy | Resolution |
| Spo2 | 35-100% | 80-100%: ±2% | 1% |
| 70-79%: ±3% |
| <70%:undefined |
| Pulse rate | 25-250 BPM | ±2 BPM | 1 BPM |
| Temperature | Humidity | Air pressure |
| Operation | 5-40°C | 15-80% | 86kpa-106kpa |
| Transportation and storage | -10-50°C | 10-90% | 70kpa-106kpa |
| OEM/ODM | Client's design is welcome |
Shanghai berry electronic tech Co., Ltd. (berry), supplies a wide range of patient monitoring accessories for both replacement and OEM applications. Berry manufactures a variety of cable interconncet systems as well as modular medical connectors. We also offer a complete line of reusable and disposable pulse oximetry sensors that are compatible with most manufacturers' original equipment.
Berry specializes in bluetooth 4.0 pulse oximeters with android and apple APP. Berry is ISO 13485 certified. Our pulse oximeters are FDA cleared, CE marked and available in five languages. Berry currently distributes its products through agents worldwide. We expect you to be our agent in the future. Berry specializes in bluetooth 4.0 pulse oximeters with android and apple APP. Berry is ISO 13485 certified. Our pulse oximeters are FDA cleared, CE marked and available in five languages. Berry currently distributes its products through agents worldwide. We expect you to be our agent in the future.
