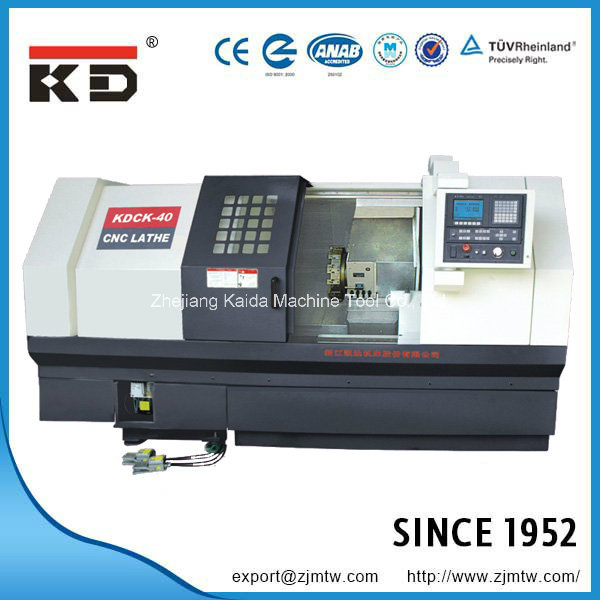

High Precision Slant Bed Metal Turning CNC Lathe Kdck-40

Name: High Precision Slant Bed Metal Turning CNC Lathe Kdck-40
Brand: china-manufacturer-directory.com
SKU: 769109825
Availability: InStock
Rating: 4.3 (68 reviews)

Supplier:	Zhejiang Kaida Machine Tool Co., Ltd.
Price:	US $ 30000-40000/Piece
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	KDCK-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Swing Over Bed:	750mm
Max. Turned Length For Axle Parts:	870mm
Spindle Bore:	105mm
Spindle Nose:	220mm
Main Motor:	15kw
Max. Cross Travel:	350mm
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Linear Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools
Processing Precision:	±0.03mm

Product Description

PRODUCT FEATURES:
Startard accessories
Total sealed fencing system
Solid hydraulic chuck
hydraulic system
Lubrication system
Optional accessories
Bar feeder system
Hollowed hydraulic chuck
Automatic chip conveying system
Hydraulic tailstock

SPECIFICATIONS:

ITEMS	KDCK-40
Max. swing over bed	Ø750 mm
Max. swing over bed	Ø750 mm
Max. cutting dia. For axle parts	Ø350 mm
Maximum turned length for axie parts	870 mm
Max. cross travel (X)	370 mm
Max. longitudinal travel (Z)	1050 mm
Spindle bore	Ø105 mm
Spindle nose	Ø220 mm
Spindle speed	100~2000 rpm
Chuck dia.	12″
Rapid feed for axis X	10m/min
Rapid feed for axis Z	20m/min
Number of tool post	12(Hydraulic)
Outside dia. Of cutting tool shand	25×25 mm
Max. inner dia. Cutting tool shank	Ø32 mm
Guide ways X & Z	Precision linear ball rail
Tailstock sleeve dia.	Ø100mm
Tailstock sleeve travel	210mm
Taper hole of tailstock quill	M.T.No.6
Type of spindle motor	Servo
Spindle motor power	15 KW
Bed structure	30° slant bed
Min. Input	0.001 mm
Repeatability	0.006/0.008 mm
Capacity for coolant	200L
Surface roughness	≤Ra0.8μm(Nonferrous) ≤Ra1.6μm(Steel part)
Overall dimensions(L×W×H)	3375×2250×1965 mm
Net weight	5400

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
