Product Specifications
| Prod Model: |
LM1450C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
According to Customer Requirment |
| Property: |
Vertical and Horizontal Milling Machine |
| Brand Name: |
Dxmc |
| Processing Type: |
Menchanical Processing |
| Precission: |
Hiah Precission Machine |
| Workpiece And Weight: |
Large Machine Tool |
| Certification: |
CE&ISO9001 |
| Warranty: |
12months |
| Automatic Grand: |
Semiautomatic |
| Table Size: |
1600(1800)*320mm |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Controlling Mode: |
Program Control |
| Object: |
Tool |
| Type: |
Worktable Milling Machine |
| Structure: |
Dedicated |
Product Description

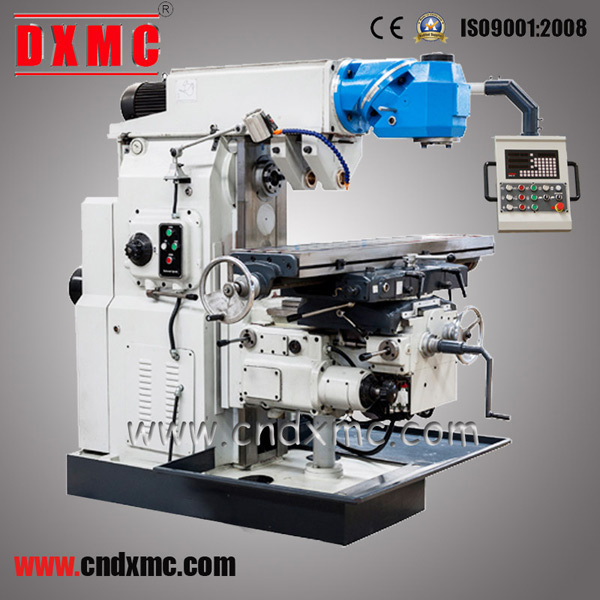

High precission Universal milling machine LM1450C
Brief introduction
1. Three axes hardened
2. Y and Z axis rectangular guideway
3. Table Swivel 45 degree
4. According to customer requirments can be added ball screw
5. Centralized transmission, value stable, easy to operate
Product description
Table size
Mm
1600X320
Numbers, width&distance between T-slot
Mm
3X18X70
Max. Longitudinal travel
Mm
800
Max. Cross travel
Mm
320
Max. Vertical travel
Mm
350-400
The foundation needs special making
Travel of arm
Mm
730
Swivel angle of the vertical milling head
Degree
± 360°
Max. Ritary angle of table
Degree
± 45°
Distance from vertical spindle to column surface(Min)
Mm
270
Distabce from horizontal spindle to RAM bottom
Mm
200
Level spindle taper
Taper
7: 24 N050
Milling head spindle taper
Taper
7: 24 N050
Level spindle speed garde
Steps
18
Level spindle speed range
Rpm
30-1500
Milling head spindle speed garde
Steps
12
Milling head spindle speed range
Rpm
51-1483(50Hz)
Grade of th work-table feeds
Steps
18
Range of feed speeds longitudinal, cross, vertical
Mm/min
23.5-1180 8-394
Speed of rapid travels longitudinal, cross, vertical
Mm/min
2300 770
Milling head spindle drive motor
Kw
4
Level spindle drive motor
Kw
7.5
Performance:
1. Universal milling head swivel ± 360 degree with high performance, can be added slotting head, spindle taper is ISO50
2. Solid, precise, hardened worktable, work table is 45°
3. Two operating handle, easy to operate
4. Electronic cluth, can stop quickly Time relay, can be realized Point move, easy to operate
5. Cabinets with lubrication pump By the cam drive, cycle goes lubrication
6. The lift slide, good sealing, the oil pump supply oil constantly
