High Pressure High Efficiency Screw Compressor (200KW, 20bar)
Product Specifications
| Prod Model: |
SE200A(W)-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Type: |
Screw |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Carbon Steel |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
High Back Pressure Type |
| Mute: |
Not Mute |
Product Description
Middle&High Pressure Screw Compressors
Description
For applications requiring exhaust pressure of 3Mpa, piston and twin-screw tandem middle&high pressure screw compressors are used in the Chinese market. However, those machines have complicated structure, high vibration, high exhaust temperature, high fault rate and poor reliability. The medium and high pressure single screw compressors developed by our company have effectively solved the above mentioned problems.
Related Names
Single Stage Screw Compressor/Energy Saving Air Compressor/Heavy Duty Air Compressor
Features

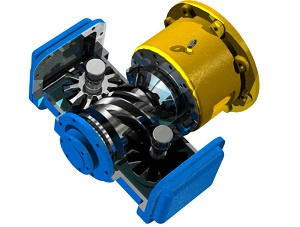

A. The singe screw meshes with the left and right star wheels, ensuring mechanical equilibrium under pressure, as well as low vibration and low noise.
B. The product main parts is equipped with super heavy duty bearings and labyrinth seal, so it is leakage-free.
C. Built-in lubricant channel and gear pump internal pressure adjustment are adopted, which achieves the best lubrication and sealing while prolonging the operating life of the compressing machine.
D. The single-head compressor is simple in structure, durable, and easy to maintain.
E. Our high pressure screw compressor is equipped with a pressure relief device, porviding excellent safety and reliability.
F. Adopting high pressure cooler with special water cooling method, our medium and high pressure screw compressors are able to run at a low temperature under high pressure, thus enjoying extended service life.
Power: 20-340HP
Pressure: 20-30bar(2-3MPa)
Air Flow: 40-800CFM
| Model | SE200A(W)-20 |
| Free air delivery (m3/min) | 18.5 |
| Max working pressure (bar) | 20 |
| Power kW(HP) | 200 |
| Noise level dB(A) | 66 |
| Cooling method | Air cooling/water cooling |
| Driver Motor | Voltage can be customized |
| Protection degree | IP55, F |
| Drive method | Coupling |
| Start Mode | Y-Δ |
| Compressed air control method | Automatic(0-100%) |
| Discharge Temperature | Ambient temp+8~10ºC |
| Connection (mm) | DN80 |
| Dimensions (L×W×H) mm | 2980X2100X1950 |
| Weight (Kg) | 4500 |
About us:
Shanghai Success Engine is the professional screw air compressor manufacturer in China. We are engaging in the design, produce, sell & service of whole air compressor system solution. With the yardstick idea of "outstanding differences, create advantage " and the management mode of European classical factory, we joint home and abroad advanced technology and equipment, relying on the leading position of great economic place of Shanghai Waigaoqiao Free Trade Zone, achieved a low-cost but high quality, low-input but high-yield production of double screw air compressors professional modern ecological factory.
In China market, SUCCESS ENGINE has become the first choice of compressor supplier to high-end users with leading technology, strong sales network and excellent after-sales service. Such as: Shanghai-Hangzhou magnetic train project (The largest air compressor air station of shield machine in Asia), Shanghai Heavy Machinery Plant Co., Ltd(China aircraft carrier bent axle manufacturer), Taikoo(Xiamen) Landing Gear Services Co., Ltd(The second large landing gear services center in the world), Shandong Luxi Chemical Co., Ltd(The largest fertilizer production base in China), Mengzi Metallurgy Co., Ltd(The largest lead Zinc mineral base), China Eastern Shanghai Pudong Airport Aircraft maintenance base, Baosteel moveable compressed air station and other national key projects.
In international market, SUCCESS ENGINE is putting the business forward to globalization, with a series certification of ISO9001, CE, ASME, our compressor rapidly export to Canada, USA, Russia, Brazil, Portugal, Poland, Hungary, South Africa, India, Singapore, UAE, Egypt, Saudi Arabia, Jordan, Kuwait, Turkey, Mongolia, Indonesia, Nigeria, Bangladesh, Pakistan, Vietnam, Peru, Yugoslavia, Chile, Argentina, Uzbekistan, Burma and other more than 60 countries and area.
Corporate Culture:
Stress differences, create advantage.
Attentive to details and pursuit zero of defect.
Customer centric, overstep client' S expectation and manufacture prefect air compressor.
Energy saving and environment protect.
Mix intelligence into innovation, reveal essence form SUCCESS ENGINE.
Product:
As an experienced air compressor manufacturer, we have reached the international advanced level of compressor design and technology. Our main product as:
Stationary screw air compressor
VSD screw air compressor
Non standard screw air compressor
Moveable diesel screw air compressor
Other ancillary equipments: Air receiver, air dryer and high efficiency air filter.
With the features of high-performance, low energy consumption, less trouble, wear-resistant and humanization design, our products are broadly used in steel, energy, electricity, electronics, petrochemical, papermaking, printing, foodstuff, textile, pharmaceuticals industry and other infrastructures fields.
Quality Guarantee:
SUCCESS ENGINE selects high performance compressor air-end, highly efficient heat exchanger cooling system, special compressor motor equipped with heavy load SKF bearing and ABB electric system, meantime, strictly follow the ISO quality management system standards, pay attention to every detail, pursuit of zero defect. Products have got the international certificate of ISO9001, CE, and ASME.
