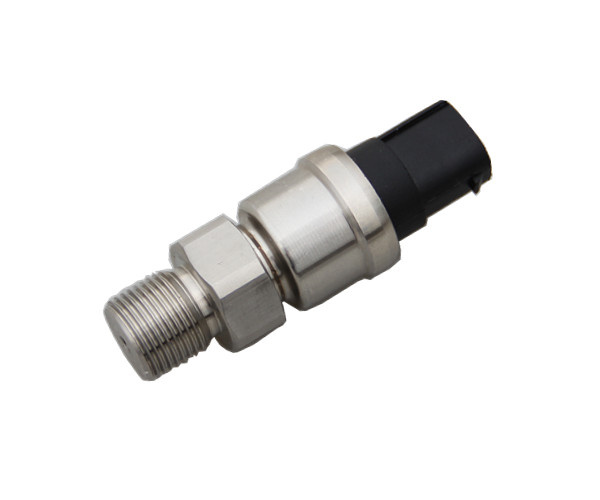

HM5600 series pressure sensor using by patented technology and application specific integrated circuit (ASIC) design and manufacturing technology. High integration, signal amplification processing and temperature compensation to improve the performance of the various aspects of products.
This series of products with characteristics of EMC protection, high and low temperature, vibration, heat shock resistance and resistance to chemical pollution and so on, which suitable for bad environment, and can be customized to different shell and parameters to meet the needs of different models. It also can provide OEM service for customers.
Range: 0~3MPa
Static accuracy ± 1.5%FS
Supply voltage: 5VDC
Output voltage: 0.5~4.5VDC
Pressure connection: 3/8-24UNF(outer)or 7/16-20UNF(inner)
Overload pressure: 5MPa
Output type: Ratio meter type
Pressure cycle life: More than 500, 000 times
Protection grade: IP65
Measure medium: R134a, Freon etc.
Shenzhen Ever-Smart Sensor Technology Co., Ltd. Specializes in Manufacturing Pressure Sensor, Transmitter, Digital Pressure Gauge, Electronic Pressure Switches, etc.
We have inherited more than ten years of achievements and expericence in the field of sensor, With an optimization, Development and innovation team. The products of Ever-smart sensor completely reach or go beyond the criteria of the same kind products abroad.
The main market is Europe, North America, Germany, Iran, Turkey and so on.
