Ningbo Sanheng Refrigeration Control Co., Ltd. >> High Qualitity Refrigerator Compressor (QD30H/ R134A)

High Qualitity Refrigerator Compressor (QD30H/ R134A)

Name: High Qualitity Refrigerator Compressor (QD30H/ R134A)
Brand: China-Manufacturer-Directory.com
SKU: 664629921
Availability: InStock
Rating: 4.7 (35 reviews)

Supplier:	Ningbo Sanheng Refrigeration Control Co., Ltd.
Price:	US $ 25-60/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QD30H /R134a
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	95%
Cop:	93%
Name:	High Qualitity Refrigerator Compressor (Qd30h/ R13
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Portable
Material:	Aluminum
Piston Type:	Closed
Lubrication Style:	Lubricated

Product Description

High Qualitity Refrigerator Compressor (QD30H/ R134A)

Product Description

Product: Compressor
Model: QD30

Brand: SANHENG

Specifications

Feature:
Test Conditions:
(1)Evaporating Temp. = -23.3 (-10F)
(2)Ambient Temp. =32.2(90F)
(3)Condensing Temp. =54.4(130F)
(4)Suction Temp. =32.2(90F)
(5)Sub-cooling Temp. =32.2(90F)
Conversion Table:
1.1watt=3.41BTU/h
2.1watt=0.86Kcal/h
3.1Kcal/h=3.97BTU/h
Tolerance of performance data:
(1)Capacity≥ 95%
(2)Input Power≤ 115%
(3)Current≤ 110%
(4)COP≥ 93% Cooling Type:
S__Static Cooling
F__Fan Cooling
H: R134A Refrigerant
L: LBP

The compressor is the same with refrigeration implement which usually include refrigerator, refrigeration deepfreeze, kitchen refrigeration, display case, revelation tank, dehumidify appliance etc. The main feature: Light compact, high efficiency, good reliability, low noise vibration.

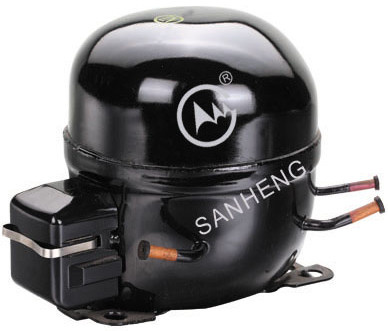

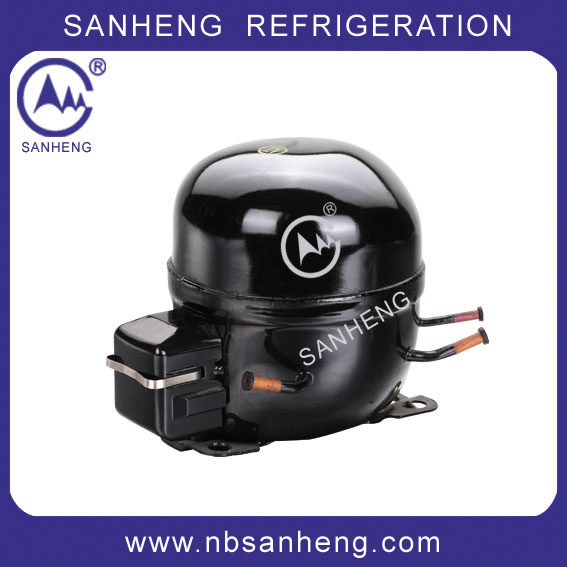

Product Photo

About Us

Ningbo Sanheng Refrigeration Control Co.,Ltd is a refrigeration parts manufacturer from China,which specializes in manufacturing HVAC&Refrigeration parts.

Our aim is to supply the most suitable refrigeration unit parts for

refrigeration unit manufacturers and distributors.

Model	Displ. (cm 3 )	Motor Type	Cooling	Capacity (W)	Input Power (W)		Rated Current (A)	COP (W/W)	VOL/FRE V/Hz
QD30H	3.0	RSIR	S	76	76		0.63	1.00	220/50
QD-36H	3.6	RSIR	S	89	83		0.64	1.07	220/50
QD43H	4.3	RSIR	S	112	102		0.81	1.10	220/50
QD52H	5.2	RSIR	S	127	115		0.87	1.10	220/50
FN57H	5.70	RSIR	S	138	114		0.90	1.22	220/50
FN66H	6.60	RSIR	S	165	135		1.15	1.23	220/50
FN77H	7.70	RSIR	S	190	154		1.30	1.24	220/50
FN91H	9.10	RSIR	S/F	212	180		1.40	1.26	220/50
FN110H	11.00	RSIR	F	284	230		1.60	1.23	220/50
FN128H	12.80	RSIR	F	320	256		2.00	1.25	220/50
FN142H	14.20	CSIR	F	348	276		2.20	1.26	220/50
Test Conditions: ( 1 ) Evaporating Temp.= -23.3 ( -10F ) ( 2 ) Ambient Temp.=32.2 ( 90F ) ( 3 ) Condensing Temp.=54.4 ( 130F ) ( 4 ) Suction Temp.=32.2 ( 90F ) ( 5 ) Sub-cooling Temp.=32.2 ( 90F )						Conversion Table: 1. 1watt=3.41BTU/h 2. 1watt=0.86Kcal/h 3.1Kcal/h=3.97BTU/h
Tolerance of performance data: ( 1 ) Capacity≥95% ( 2 ) Input Power≤115% ( 3 ) Current≤110% ( 4 ) COP≥93%						Cooling Type: S__Static Cooling F__Fan Cooling H : R134a Refrigerant L : LBP
The compressor is the same with refrigeration implement which usually include refrigerator, refrigeration deepfreeze, kitchen refrigeration, display case, revelation tank, dehumidify appliance etc. The main feature: light compact, high efficiency, good reliability, low noise vibration.

Ningbo Sanheng Refrigeration Control Co., Ltd. is located at Xikou Industrial Zone, Ningbo City, Zhejiang Province. It is specializes in developing and manufacturing of refrigeration unit, refrigerated air dryer, Refrigeration Parts, Air Conditioner Parts and Auto A/C Parts, like refrigeration solenoid valves, thermal expansion valves, manifold gauge set, filter drier, ball valve, many kinds of expansion valve for Auto A/C and so on.

After decades of development, we have a profeeional refrigeration technology team with wealth of practical experience, self-developed special-purpose welding lines and unique testing equipment and advanced injection technologies. Meanwhile, we focus on improving the quality and stability of product, keep on investing in the introduction of various high-tech equipment, now we have a complete set of production equipment, such as high-precision CNC lathes, Automated assembly lines and so on. They help us to strictly control product quality and stability. Our company has passed ISO9001-2000 certificate and CE certificate.

Sanheng Company relies on the "Sanheng"spirit, i. e. "Quality Eternal, Service Eternal, and Prestige Eternal". We believe that we will make great contribution to refrigeration industry.
