Monofilament Polyester Screen Printing Mesh(Bolting Cloth).
We have P7110 and P7150 Sulzer Looms from Switzerland,first class heat treatment and washing machines.The maximum width can reach 3.9m.Daily production 5000m².

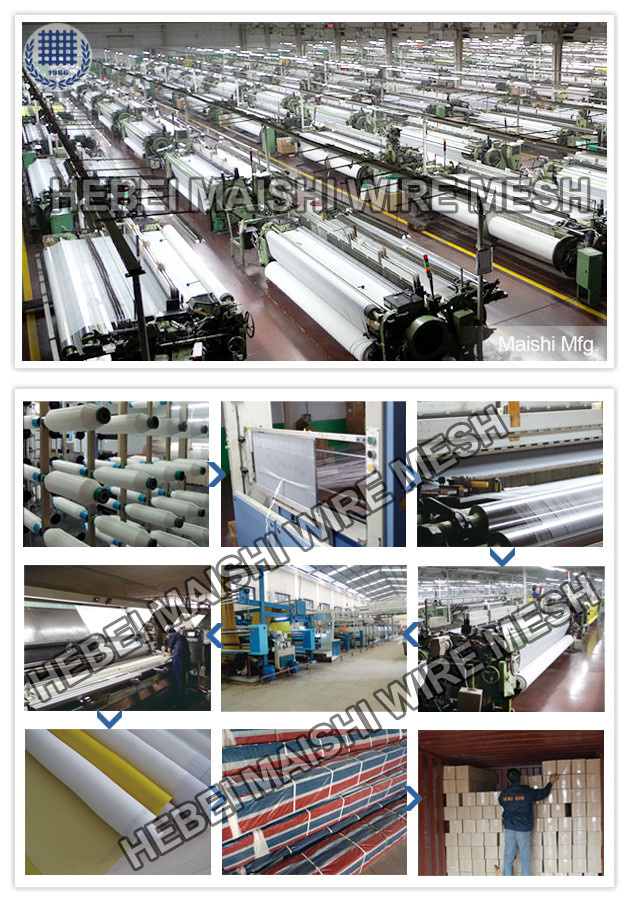

Factory and production
1) Specification
polyester screen printing mesh
| |||||
Mesh Count | weaving | Thread | Pening | Open Area | Tension |
Diameter/um | um | % | N/cm | ||
10T | 1:1PW | 250 | 740 | 53 | 60 |
12T | 1:1PW | 150 | 522 | 47 | 62 |
16T | 1:1PW | 200 | 435 | 47 | 48 |
16T | 1:1PW | 100 | 450 | 70 | 48 |
20T | 1:1PW | 100 | 410 | 68 | 49 |
24T | 1:1PW | 100 | 323 | 58 | 50 |
24T | 1:1PW | 120 | 303 | 51 | 48 |
27T | 1:1PW | 100 | 270 | 58 | 46 |
32T | 1:1PW | 71 | 230 | 60 | 28 |
32T | 1:1PW | 64 | 245 | 61 | 28 |
32T | 1:1PW | 100 | 200 | 43 | 42 |
36T | 1:1PW | 100 | 182 | 42 | 42 |
39T | 1:1PW | 55 | 199 | 61 | 32 |
39T | 1:1PW | 80 | 172 | 46 | 42 |
43T | 1:1PW | 80 | 151 | 43 | 36 |
47T | 1:1PW | 55 | 157 | 55 | 32 |
48T | 1:1PW | 71 | 141 | 44 | 32 |
53T | 1:1PW | 55 | 133 | 50 | 34 |
55T | 1:1PW | 55 | 126 | 49 | 32 |
55T | 1:1PW | 64 | 115 | 39 | 30 |
59T | 1:1PW | 55 | 101 | 42 | 33 |
64T | 1:1PW | 55 | 104 | 43 | 33 |
64T | 1:1PW | 64 | 95 | 36 | 35 |
72T | 1:1PW | 48 | 96 | 46 | 32 |
72T | 1:1PW | 55 | 80 | 30 | 32 |
77T | 1:1PW | 55 | 75 | 28 | 33 |
80T | 1:1PW | 48 | 78 | 30 | 29 |
90T | 1:1PW | 48 | 55 | 26 | 32 |
100T | 1:1PW | 40 | 58 | 32 | 27 |
110T | 1:1PW | 40 | 48 | 27 | 30 |
120T | 1:1PW | 34 | 45 | 30 | 26 |
120T | 1:1PW | 40 | 40 | 20 | 27 |
140T | 1:1PW | 34 | 32 | 19 | 31 |
150T | 1:1PW | 34 | 26 | 20 | 31 |
2) Characteristic
Low Elongation,Higher tension
Excellent tear resistance
Very good dimensional stability
Faster tensioning without damage to the threads.
3) Application
Filteration: Widely used in areas as filtration and separation industry,the industries of petroleum, chemical, metallurgy, cement, environmental dedusting and mine.
Filtration rates can be from 27% to 78%. Such as food industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk etc.
4) Features & Advantages
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy
5) Package
We have two kind of packing type:
1.Fold the mesh into plastic bag ,then in carton.Suitable for small quantity and have no requirement on the crease.
2.Pack the mesh with paper and plastic bag,then in carton.Suitable for large quantity and the mesh has better surface then folding type.
6) Payment Term
100%T/T in advance if order amount less thanUSD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.
L/C payment is workable.
Any other payment term can be negotiatory.
[Detailed Description of our comapny ]
1) Export
We have more than 29 years of export experience.
we have exported to more than 90 countries and 95% repeat orders.
2) Technology
The machinery and apparatus used in production process fully based on the highcomputer technology.
So it is accepted as the only company capable of having TSE (Chinese Standard Institution ) certificate.
3) Our service
1. Customized service is also available for us.
We can customize products according to your requirements.
2. Including design and drawing.
3. Choose the cheapest and safest shipping company.
4. Track the order until you get the goods.
5. Please feel free to contact us.
4) FAQ
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price.
2.Shortest delivery time as we have in stocks(normal size).
3.The goods can be returned or compensated if the quality is not ok.
4.There is no "cheat" and "misunderstanding" in Maishi.
6) Contact
Contact Us | Jessica King |
Phone | 0086-311-89277936 |
Fax | 0086-311-85861285 |
Web | www.boltingcloth.cn |
Looking forward to your feedback!
Prod Model: | MS-WWM |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Length: | 30m 50 M or as Your Request |
Width: | 0.6-3.6m |
Monofilament Style: | Yes |
Mesh Count: | 15mesh-420mesh Per Inch |
Color Available: | White and Yellow |
Sample Service: | Yes |
Certification: | ISO,RoHS,CE |
Application: | Textile,Graphic,Digital,Gla |
Character: | Low Elongation and High Tensi |
Model Number: | 100% Polyester Printing Screen Mesh |
Material: | 100% Polyester |
Weave Type: | Plain |
Printing: | Polyester Screen Printing |
Elasticity: | Low |
