Product Specifications
| Prod Model: |
GR135 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(L*W*H): |
8015X2380X3050mm |
| Weight: |
11200kg |
| Engine Model: |
Cummins 6bt5.9 |
| Operating Weight: |
11200kg |
Product Description

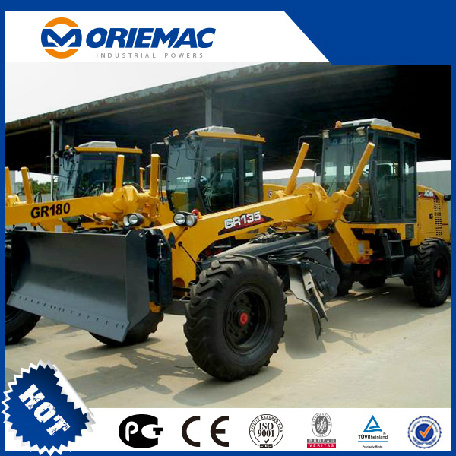

135HP XCMG GR135 Motor Grader with High Performance
The travelling brake system adopts the hydraulic components of Rexroth(Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking brake system is of hub-type hand brake, which ensures the safety during travelling by applying its function on the output shaft of gearbox.
Steering system: Adopting sensor with load. The superior energy-saving fully hydraulic steering system makes it possilbe, with the articulated frame, to achive easy and flexible steering.
ChassisBeing of welded structure, just like a box, so it is strong enough to ensure no deformation.
Cabinwith wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc. The cab is designed to be nice looking and very comfortable.
Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
Operation System: Forward/backward adjustable opertion pannel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.
| Category | Items | Value |
| Engine model |
| Cummins 6BT5.9-C |
| Rated power/speed | km/h | 100/2200rmp |
| Overall dimension | mm | 8015x2380x3050 |
| Operating weight | kg | 11000 |
| Operating weight on front wheel | kg | 3300 |
| Operating weight on rear wheel | kg | 7700 |
| Tire |
| 13.00x24TG RP12 |
| Min. grounding clearance | mm | 410 |
| Clearance between front and rear axle | mm | 5780 |
| Clearance between middle and rear wheel | mm | 1154 |
| Max. steering angle on front wheel | % | 45(left and right) |
| Max. tipping angle on front wheel | % | 17 |
| Max. swing angle on front axle | % | 15 |
| Steering angle of frame | % | 25(left and right) |
| Min. turning radius | m | 6.6 |
| Max. lifting height of shovel | mm | 450 |
| Max. shoveling depth of shovel | mm | 535 |
| Max. side-dumping angle of shovel | % | 90 |
| cutting angle of shovel | % | 28-70 |
| Circle reversing rotation angle of shovel | % | 360 |
| Molboard widthxheight | mm | 3710x610 |
| Forward speed | km/h | 5,8,13,20,30,42 |
| rear speed | km/h | 5,13,30 |
| Max. traction force | kN | 61.3 |
| Max. climb ability | % | 20 |
| Technical specifications are subject to change without notice |
