Product Specifications
| Prod Model: |
KH-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Mechanical Power, 0.12 Kw |
| Usage: |
Vibration Testing Machine |
| Screen Mesh: |
4-500 Meshes |
| Functions: |
Particle Size Analysis |
| Layer: |
1-9 Layers |
| Net Weight: |
37 Kgs |
| Customization: |
Accepted |
| Trade Type: |
Factory |
| Packing Weight: |
53 Kg |
Product Description

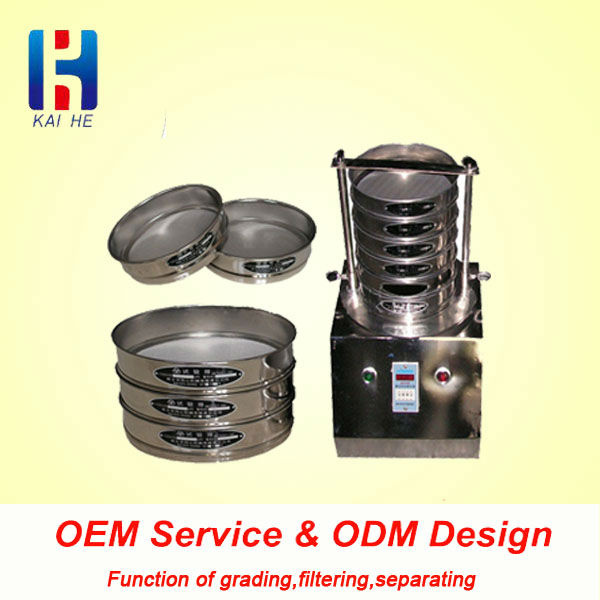

High quality 200mm vibrating testing analytical lab sieve
Analytical lab sieve information
Introduction:
200mm analytical lab sieve are suitable for particles size analysis of grains, powder or solids content test of the liquid in laboratory and Quality Control Department. It has features of low noise, high efficiency and precision.
The Working Principle:
200mm analytical lab sieve uses vertical motor to be power source which can make the movement into 3-D movements: Horizontal, vertical and incline movement, then the movements to be passed to the screen surface, finally achieve the aim of particles size analysis.
Features:
1.200mm analytical lab sieve is used to determine particle size ranges for materials, whatever particles or powder or liquid.
2. Sieve sizes range from 4 mesh (4750 micron opening) to 500 mesh (25 micron opening)
3. Typically requires 50 to 150 g of sample material.
Functions:
Analytical lab sieve determines the particle size distribution, whatever particles, powder or liquid.
Please note:
Before using,
A. Prior to operate the test sieve shaker, ensure all the components are fastened, no broken on the sieves, no damage on the machine body, electrical cables are connected properly.
B. Please check whether the machine model and specification are the same as your order.
C. Power supply is the same as shown on the machine plaque. (Tolerance for voltage is +/- 10%).
Be using,
A. Make sure the machine has been positioned horizontally
B. Check the power and make sure it is in line with the required, check grounding.
C. The machine body cannot contact with other things.
D. Must use the groove or fixing nut to fix the sieves.
After using,
A. Trun off the power
B. Clean the screen after operation, place the machine in the right place.
Should you be interested in it, just tell us How many sieves you need and wire screen mesh sizes of each sieves to get to know the accurate price.
Please note:
Before using,
A. Prior to operate the test sieve shaker, ensure all the components are fastened, no broken on the
Sieves, no damage on the machine body, electrical cables are connected properly.
B. Please check whether the machine model and specification are the same as your order.
C. Power supply is the same as shown on the machine plaque. (Tolerance for voltage is +/- 10%).
Be using,
A. Make sure the machine has been positioned horizontally
B. Check the power and make sure it is in line with the required, check grounding.
C. The machine body cannot contact with other things.
D. Must use the groove or fixing nut to fix the sieves.
After using,
A. Trun off the power
B. Clean the screen after operation, place the machine in the right place.
Should you be interested in it, just tell us How many sieves you need and wire screen mesh sizes of each sieves to get to know the accurate price.
If you are interested in any of our model, do not hesitate to contact! We will give you our best suggestions and price.
Contact information
Contact person: Vickytao
Company name: Shanghai KaiHe mechanical and electrical technology Co., Ltd
Tel: (0086-021) 59553228 Fax: (0086-021) 59553226 Mobile: (0086) 13651980847
Any more products, plz look through our website: http://kaihemachine.en.alibaba.com/
No. |
Item |
Unit |
Data |
1 |
Sieves |
Layer |
8 |
2 |
Diameter |
mm |
200 |
3 |
Material size |
mm |
0.038-3 |
4 |
Noise |
db |
less 50 |
5 |
Inventory rating |
G |
less 200 |
6 |
Vibration amplitude |
mm |
3-5 |
7 |
Vibration motor |
Voltage |
V |
220-240 |
|
|
|
Rotate speed |
Rpm |
1400 |
|
|
|
Power |
KW |
0.12 |
8 |
Overall dimension
(length*width*height) |
mm |
300×360×736 |
9 |
Net weight |
kg |
37 |
