| Supplier: | Qingdao Hua Yushun Commercial Co., Ltd. |
|---|---|
| Price: | US $ 3500/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | blue tooth type |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamp Size: | 24" |
| Battery: | Lithium |
| Monitor: | 20" |
| Veicle Range: | Passenger Car, Pick-up, Ligh-Truck, Bus |
| Hanger: | Plastic |
| CCD Sensor: | 8PCS |
| Transmission: | Zigbee System |
| Data: | More Than 25000PCS |
| Match With: | 4-Post Lift, Scissor Lift |
| Voltage: | 110V/220V/380V |
| Communication Mode: | Bluetooth Wireless Communication |
| Condition: | New |
| Type: | Blue Tooth |

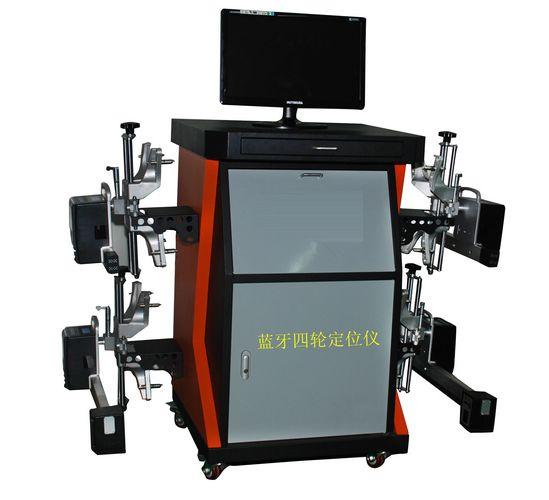

Wheel Alignment Machine For Sale/Price of Wheel Alignment Machine
Main Feature
-Windows XP, Win 7, Win 8, Linux operating system with customer management and data memory.
-6-8 meters long wheel base measuring, suitalbe for passenger car, pickup, truck and bus.
-WiFi wireless communication make the signal transmission more accurate, stabale and reliabale.
-8 tracks CCD measuring with electronic level.
-3 points run-out compensation measurement.
-Over 10000 vehicle data are saved in PC and new data update can be easily downloaded at Doyo's website.
-Wheel base, track width and axle offset measurement.
-Steering wheel angle measurement and difference value measurement between left wheel and right wheel.
-Self diagnosis for system breakdown and error message.
-Caster lock and lifting lock .
-Self-service multi-language display system.
-3000mA Lithium rechargeable battery and intellegent battery charger make system continuously work more than 30 hours.
-Automatic power off about 5 min after working.
Clamp range: 10"-22"
Power supply: 220V/110, 50/60Hz
Monitor: 20" LED
Input power: 600W
Console Dimension: 660X650X1150
| Measuring item | accuracy | Measuring range |
| Toe | ±0.01" or ±0.01mm | ±20" |
| Camber | ±0.01" | ±30" |
| Caster | ±0.02" | ±30" |
| Set Back | ±0.01" | ±20" |
| Thrust Angle | ±0.01" | ±20" |
| Wheel track | ±2mm | 1200-2500mm |
| Wheel base | ±2mm | 2000-5000mm |
| Length of beam | 2600mm | |
| Height of colum | 1400-2340mm |
Zigbee Measurement System
