Hubei Suny Automobile and Machinery Co., Ltd. >> High Quality 4X2 Dongfeng Integrate 10 Ton Middle Duty Wrecker

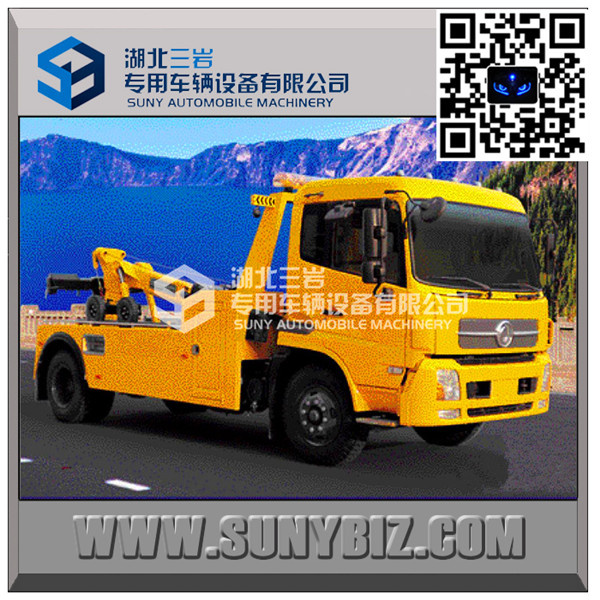

High Quality 4X2 Dongfeng Integrate 10 Ton Middle Duty Wrecker

Name: High Quality 4X2 Dongfeng Integrate 10 Ton Middle Duty Wrecker
Brand: China-Manufacturer-Directory.com
SKU: 770428885
Availability: InStock
Rating: 4.8 (145 reviews)

Supplier:	Hubei Suny Automobile and Machinery Co., Ltd.
Price:	US $ 20000-60000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	6T6D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Retracted Rating Of The Boom:	6000 Kg
Extended Rating Of The Boom:	3000 Kg
Towing Rating:	10000 Kg
Wheel Lift Capacity Fully Extended:	3500 Kg
Wheel Lift Capacity Fully Retracted:	5000 Kg
Capacity Of Winch:	2 Units, 3000 Kg Per Unit
Certification:	SGS, BV
Engine Type:	4 Stroke
Fuel:	Diesel
Condition:	New
Emission Standard:	Euro II, III, IV, V, etc
Towing Tonnage:	10 Ton
Packing:	Nude with Waxing.

Product Description

High Quality 4X2 DONGFENG Integrate 10 ton Middle Duty Wrecker

A. Boom
Model	SY6T6D
Rating of the boom ( lb / kg ) Retracted at 19 ° Extended at 19 °	13200 / 6000 6000 / 3000
Max. Angle ( ° )	26 . 5
Hook height ( inch / mm )	130 " / 3300
The length to the tail of truck fully extended and min. angle ( inch / mm )	64 " / 1625
B. Underlift
Model	SY6T6D - T
Towing rating ( lb / kg )	22000 / 10000
Capacity fully extended ( lb / kg )	7700 / 3500
Capacity fully retracted ( lb / kg )	11000 / 5000
The length to the tail of the truck fully retracted ( inch / mm )	45 " / 1145
The length to the tail of the truck fully extended ( inch / mm )	73 " / 1860
Underlift tilt ( ° )	+ 20 , - 5
C. Winch
Model	SY001
Capacity of winch ( lb / kg )	6600 / 3000
Type of winch	Worm gear
Diameter and length of steel cable	4 / 9 " x 50 ' / 11 x 15000
D. Chassis Recommendations
GVW ( lb / kg )	22000 / 10000 - 26400 / 12000
C.A ( inch / mm )	147 " / 3730 - 165 " / 4200
STANDARD FEATURES
1. Boom 2. Winch 3. Steel Body 4. Underlift 5. Light Pylon 6. Dual Joystick Control 7. Dual Rear Spader 8. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting ) 9. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon ) 10.Tools ( Include 2 pair of Forks, a pair of " L " Bar and a pair of Strap )
Notice: Equipment can be modified according to the customer ' s requirement.

Chassis: Can be DONGFENG, ISUZU or other chassis. We can also produce base on customers ' requirements.

Hubei Suny automobile and machinery Co., Ltd is a professional special vehicles, trailers and construction machinery company who is approved by China Business departments and with the qualification of independent legal person and independent import & export rights.It is the important strategic partner for many famous special vehicle manufacturers in China.The main product achieve to more than 300 types in 20 series.We uphold the tenet----quality first, safety first, attention to details and keep the promise to develop the market domestic and also abroad vigorously.
Now the trade scale of the company growing speedily.We keep the customers demand as direction and customers satisfactory as target.We got big support and trust from customers all over the world by our quality goods, professional and service and excellent reputation.Meanwhile, we will make more continuous effort on innovation to forge ahead.We treat the technology as the core, the quality as the life, the customer as the god and provide the highest cost-performance product and meticulous pre-sale/after sale service to feedback all the customers.

We sincerely hope we can walk with arms linked with you to get eciprocity and mutual benefit together!
