Hubei Suny Automobile and Machinery Co., Ltd. >> High Quality 4X2 Foton Integrate 12 Ton Boom Heavy Duty Wrecker

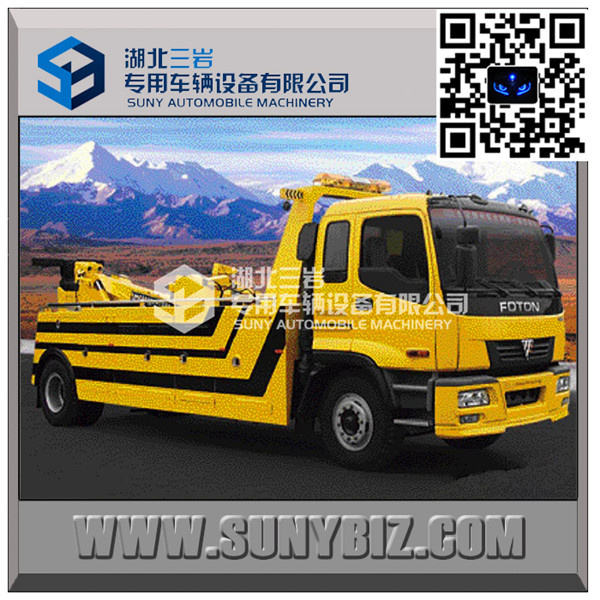

High Quality 4X2 Foton Integrate 12 Ton Boom Heavy Duty Wrecker

Name: High Quality 4X2 Foton Integrate 12 Ton Boom Heavy Duty Wrecker
Brand: china-manufacturer-directory.com
SKU: 770434335
Availability: InStock
Rating: 4.7 (75 reviews)

Supplier:	Hubei Suny Automobile and Machinery Co., Ltd.
Price:	US $ 20000-60000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	8T12D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Retracted Rating Of The Boom:	12000 Kg
Extended Rating Of The Boom:	8000 Kg
Towing Rating:	12000 Kg ~ 16000 Kg
Wheel Lift Capacity Fully Extended:	5000 Kg
Wheel Lift Capacity Fully Retracted:	8000 Kg
Capacity Of Winch:	2 Units, 8000 Kg Per Unit
Certification:	SGS, BV
Engine Type:	4 Stroke
Fuel:	Diesel
Condition:	New
Emission Standard:	Euro II, III, IV, V, etc
Towing Tonnage:	12 Ton
Bearing Capacity:	Heavy
Packing:	Nude with Waxing.

Product Description

High Quality 4X2 FOTON Integrate 12 Ton Boom Middle Duty Wrecker

A. Boom
Model	SY8T12D
Stage	2 stages
Rating of the boom ( lb / kg ) Retracted at 30 ° Extended at 30 °	26400 / 12000 17600 / 8000
Max. Angle ( ° )	36
Hook height ( inch / mm )	200 " / 5080
The length to the tail of truck fully extended and min. angle ( inch / mm )	115 " / 2920
B. Underlift
Model	SY8T12D - T
Capacity fully extended ( lb / kg )	11000 / 5000
Capacity fully retracted ( lb / kg )	17600 / 8000
The length to the tail of the truck fully retracted ( inch / mm )	61 " / 1559
The length to the tail of the truck fully extended ( inch / mm )	112 " / 2845
Underlift tilt ( ° )	- 7 ~ 5
C. Winch
Model	SY002
Capacity of winch ( lb / kg )	17600 / 8000
Type of winch	Worm gear
Diameter and length of steel cable	7 / 10 " x 98 ' / 18 x 30000
Steel cable impaction	Air Impaction
D. Chassis Recommendations
GVW ( lb / kg )	35200 / 16000
C.A ( inch / mm )	175 " / 4445 - 190 " / 4826
STANDARD FEATURES
1. Boom 2. Winch 3. Steel Body 4. Underlift 5. Dual Rear Outrigger 6. Light Pylon 7. Dual Joystick Control 8. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting ) 9. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon ) 10.Tools ( Include 5 pair of Forks, a pair of " U " Underlift Attachment and a pair of Safety Chain )
Notice: Equipment can be modified according to the customer ' s requirement.

Chassis: Can be FOTON, ISUZU or other chassis. We can also produce base on customers ' requirements.
