Hubei Suny Automobile and Machinery Co., Ltd. >> High Quality 4X2 Isuzu 7 Ton Light Duty Rotator Tow Truck Wrecker

High Quality 4X2 Isuzu 7 Ton Light Duty Rotator Tow Truck Wrecker

Name: High Quality 4X2 Isuzu 7 Ton Light Duty Rotator Tow Truck Wrecker
Brand: china-manufacturer-directory.com
SKU: 770442405
Availability: InStock
Rating: 4.7 (72 reviews)

Supplier:	Hubei Suny Automobile and Machinery Co., Ltd.
Price:	US $ 20000-50000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	3DZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Retracted Rating Of The Boom:	4000 Kg
Extended Rating Of The Boom:	2000 Kg
Towing Rating:	7000 Kg
Wheel Lift Capacity Fully Extended:	2500 Kg
Wheel Lift Capacity Fully Retracted:	4000 Kg
Capacity Of Winch:	2 Units, 3000 Kg Per Unit
Certification:	SGS, BV
Engine Type:	4 Stroke
Fuel:	Diesel
Condition:	New
Emission Standard:	Euro II, III, IV, V, etc
Towing Tonnage:	7 Ton
Brand:	Isuzu
Bearing Capacity:	Heavy
Packing:	Nude with Waxing.

Product Description

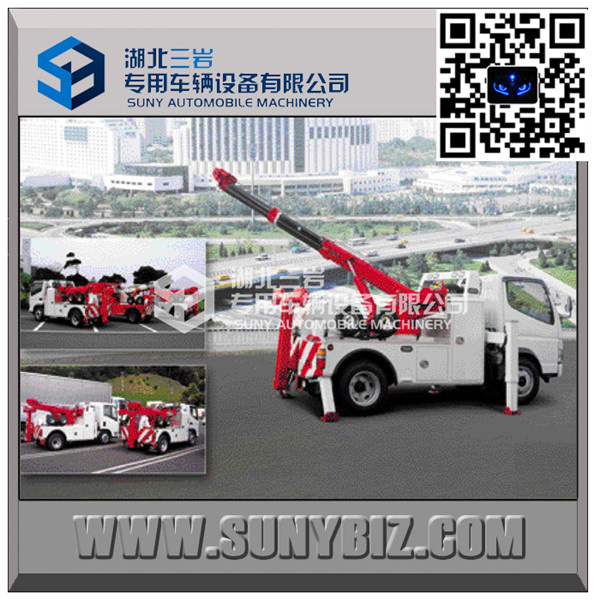

High Quality 4X2 ISUZU 7 Ton Light Duty Tow Truck Wrecker

A. Boom
Model	SY3DZ
Rating of the boom ( lb / kg ) Retracted at 19 ° Extended at 19 °	8800 / 4000 4400 / 2000
Max. Angle ( ° )	46
Rotator Angle ( ° )	180
Hook height ( inch / mm )	163 " / 4130
The length to the tail of truck fully extended and min. angle ( inch / mm )	88 " / 2235
B. Underlift
Model	SY3DZ - T
Towing rating ( lb / kg )	15400 / 7000
Capacity fully extended ( lb / kg )	5500 / 2500
Capacity fully retracted ( lb / kg )	8800 / 4000
The length to the tail of the truck fully retracted ( inch / mm )	47 " / 1195
The length to the tail of the truck fully extended ( inch / mm )	76 " / 1925
Underlift tilt ( ° )	+ 25, - 4
C. Winch
Model	SY001
Capacity of winch ( lb / kg )	6600 / 3000
Type of winch	Worm gear
Diameter and length of steel cable	4 / 9 " X 50 ' / 11 X 15000
D. Chassis Recommendations
GVW ( lb / kg )	16500 / 7500 - 18700 / 8500
C.A ( inch / mm )	79 " / 2000 - 118 " / 3000
STANDARD FEATURES
1. Boom 2. Winch 3. Steel Body 4. Underlift 5. Light Pylon 6. Dual Joystick Control 7. Dual Front and Rear Spader 8. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting ) 9. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon ) 10.Tools ( Include a pair of Fork, a pair of " L " Bar and a pair of Strap )
Notice: Equipment can be modified according to the customer ' s requirement.

Chassis: Can be MAN, MERCEDEZ BENZ, ISUZU or other chassis. We can also produce base on customers ' requirements.
