Specifications

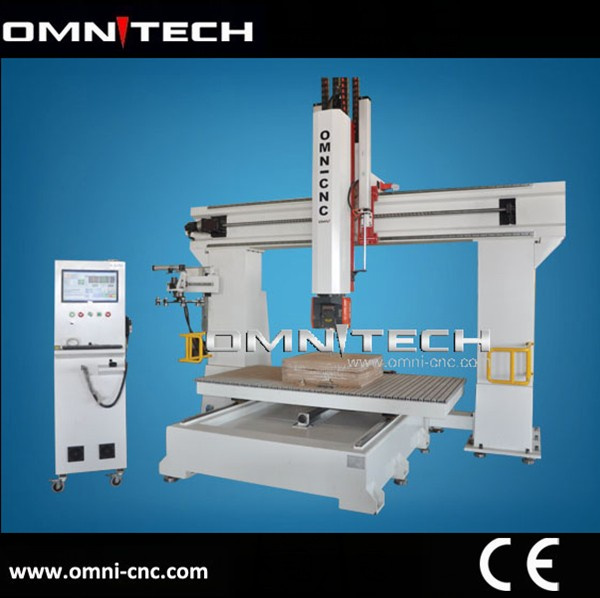

5 axis CNC router for mold industry
1.Europe OSAI control system
2.suitable for 3D engraving
3.Diversified control system
Machine Features |
|
| X,Y,Z working area | 1300*2500*900mm |
| Table size | 1500*3040mm |
| Spindle | 9kw HSD spindle, 1000-24000rpm |
| Motor | Yaskawa Servo motor and driver |
| Moving mode | Table moving |
| C travelling | ±180° |
| A travelling | ±112.5° |
| Beam spacing(MM) | 4260 |
| Beam Height(MM) | 2150 |
| Vacuum pump | Dry Vacuum pump 5.5kw |
| product fixed form | vacuum table |
| Tool magazine | Round tool tool magazine (6 positions) |
| X, Y, Z Travelling Potioning Accuracy | ±0.03/300mm |
| X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| Frame | Cast steel |
| X, Y structure | rack and pinion drive, THK rail linear bearing from Japan |
| Max Rapid Travel Rate | 45,000mm/min |
| Max working speed | 30,000mm/min |
| Z Axis | 20m/min |
| c Axis | 20m/min |
| A Axis | 20m/min |
| Machine size | 4260*2150*3300 |
| Total Power(kw) | 24KW |
| Maximum lifting weights | 20T |
| Working voltage | AC380V/50Hz |
| Command languages | G code,F/S |
| Control system | OSAI |
| Collet | BT40 |
| Limit switch | Omron |
Applicable industriesMold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry: 3-d surface engraving and shape cutting of large-scale instruments.
1. Diversified control processing speed can control the working speed, traveling speed, dropping tool speed, lowering tool speed, greatly improve the quality and efficiency.
Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.
2. Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional surface..
3. Adopt Europe OSAI numerical control system, high machining accuracy and high speed. The Japan THK rails.and the Germany original rotating arm ensure the accuracy and strength of the mechanical
Jinan OMNI CNC Technology Co., Ltd. is enterprise specializing in manufacturing, marketing and R&D of CNC router, laser and CNC plasma cutting machine. OMNI supply machines to a wide variety of manufacturing sectors including aerospace, automotive, marine, recreational vehicles, 3D sculpture, concept models, pattern making, formed plastics and wood working, sign.
