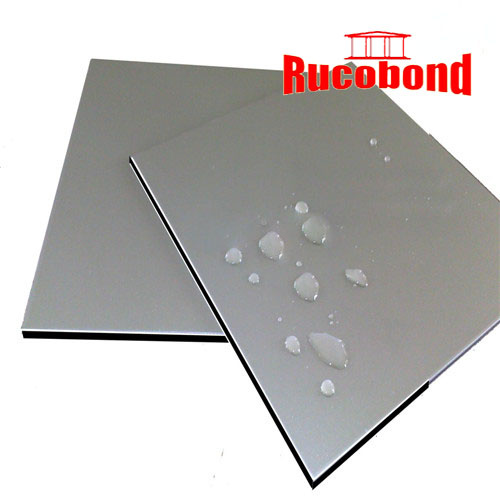

High Quality ACP Panel ACP Sheet (RB-0902)

Materials
1) Front: Aluminum plate coated with PVDF or polyester
2) Back: Aluminum Plate coated with Polyester
3) Core: Fireproof plastic / Polythene

Specifications
1) Aluminum thickness: 0.08, 0.12, 0.15, 0.21, 0.30, 0.35, 0.40, 0.45, 0.50mm
2) Panel thickness: 2, 3, 4, 5, 6mm
3) Standard size(W*L*T):
A)1220*2440mm;
B)1270*2750mm;
C)1550*5800mm;
D)1500*3660mm;
E)1570*5800mm;
Width: A) 1220mm to1550mm, b) Length: Any length as costomers request.
4) Normal color: : 28 kinds for normal aluminum composite panels, 9 kinds of for granite grain panel and brushed panel. Any two color within one panel, fashional design, hot sale.

Characteristics
1) Super peeling strength
2) Excellent surface flatness and smoothness
3) Superior weather, corrosion, pollutant resistant
4) Even coating, various colors
5) Fireproof, excellent heat and sound insulation
6) Superior impact resistance
7) Lightweight and easy to process
8) Easy to maintain

Applicatiuon Scope

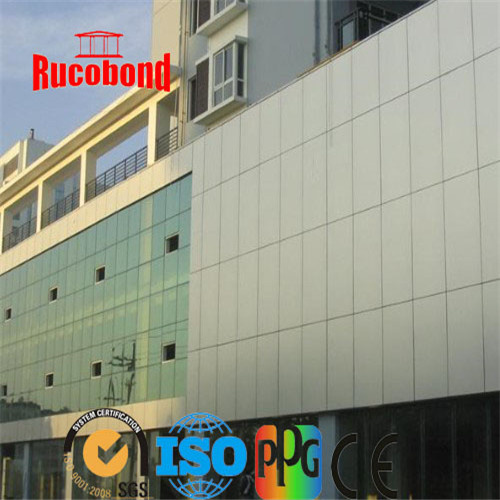

1) Building exterior curtain walls
2) Decoration and renovation additions for old buildings
3) Decoration for interior walls, cellings, bathrooms, kitchens, balconies
4) Shop door decorations
5) Advertisement board display platforms and signboards
6) Wallboard and cellings for tunnels
7) Industrial materials, materials for vehicles and boats

Thanks again for being interested in our Aluminum Composite Panel (ACM, ACP)

Item	Total Thickness(mm)	AL thickness(mm)	Width(mm)	Length(mm)
Standard	4	0.5	1220	2440
Option	2,3, 5, 6	0.12~0.5	900 ≤ W ≤ 1550	Customized

Profermance:

Surface Properties	Pencil Hardness	> HB/> 2H
	Temperature Resistance	-50 º C  to +80 º C
	Impact strength    (kg. cm)	50
	Boiling water adhesion	NO blistering or peeling
	Muriatic acid resistance	NO blistering or other visual change
	Alkaline Resistance	Unconverted
	Oil Resistance	Unconverted
	Impregnant resistance	Unconverted
	Rinse resistance	Unconverted by 10000 times
	Peel Strength 180 º C	180º C<11.2 newton/mm
Product Properties	Sound Absorption NRC	0.05
	Sound Attenuation RW db	23/24/25
	Water Absorption % by volume	0.0047/0.0057/0.0012
	Core Composition	LDPE Polyethylene, Non- Combustible Material

Packing	If packing with pallet, will load less, depend on the detailed size of the panel. Wooden Pallet(less quantity,LCL); In bulk (large quantity,like 20FT,FCL)
Loading Capacity	4500sqm for 20'container
Lead Time	10- 15 days after receive 30% in advance.
Quality warranty:	a)  PVDF ACP: 20 years
	b) PE ACP:  15 years
OEM	OEM service available
