Product Specifications
Prod Model: |
DSSD722 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Current(a): |
3*1.5(6), 3*5(20), 3*10(40), 3*15(60), 3*20(80), 3 |
Rated Voltage(V): |
3*100V, 3*380V, 3*220/380V |
Rated Frequency(Hz): |
50 or 60 |
Accuracy Class: |
Active :0.5 Reactive 1.0 or Active 1.0,Reactive2.0 |
Display: |
Digital |
Usage: |
Standard Electric Energy Meter |
Electric Equipment: |
Three-phase Four-wire |
Theory: |
Electronic Meter |
Power Meter Connection: |
Terminal |
Measured Signal: |
Continuous Wave |
Type: |
Energy Meter |
Product Description

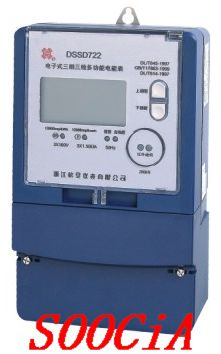

DSSD722 type three-phase multi-function watt-hour meter
1.Brief introduction of product
The DSSD722 type three-phase electronic multi-function watt hour meter is a new type of multi-function meter;
It accords with the correlative standards, rules of the nation. It has the function as high-accuracy, well stability, advanced technology and easy operation. The performance index of the meter accord with the technical requirements of nation standard, such as GB/T17215.321-2008 class 1 and 2 Static AC Active watt-hour meter, GB/T17215.322-2008 class 0.2s and 0.5s static A.C Reactive Watt-hour meter, GB/T17215.323-2008 class 2 and 3 Static AC Reactive watt-hour meter and DL/T 614-2007 multi-function watt-hour meter, the communication agreement accord with DL/T645-1997.
2.Function and Features
-Measure forward direction, reverse direction and 4 quadrants reactive power and max demand, the time of max demand occurs.
-Spit phase power measuring.
-4 rates, 4 time zones, 6 time period, 10 day time, 12 public holiday.
-Record loss voltage, loss current.
-The data can be congeal auto and record data of 12 months .
-The active forward &reverse direction and the reactive 4 quadrants output via pulse.
The pulse width can be setup by controller or RS485.
-The infrared controller will display the item.
-The lineate communication and the infrared wireless communication are accord to DL/T645-1997.
-It can be mounted the meter key stoke-display or circle-display when power is off. All the data can be setup by controller of software.
-Recording affairs parameters function.
-Meter reading function at power off.
-Recording the load.
-It is easier of electric department centralized management.
-Alarming over load function.
-Transformer magnification can be setup.
-All the data and information can be displayed via LCD.
-Measuring the voltage, current, power of the each meter all the time.
-It has the recording feature of loss voltage, loss current, coincidence rate of the voltage, power off, programmer, adjust the time and so on.
-It has the function of program forbid and demand replacement.
-Power break awakening function.
-Two sets of battery, one(3.6V) is used for keeping data, and another(6V) is used for copying. They are easier to change.
3.Main Technical Data
Rated Current(A): 3*1.5(6), 3*5(20), 3*10(40), 3*15(60), 3*20(80), 3*30(100)
Rated Voltage(V): three-phase three-wire3*100V or 3*380V three-phase four-wire3*220/380V or 3*57.7/100V
Rated Frequency(Hz): 50or 60
Accuracy class: Active :0.5 Reactive 1.0 or Active 1.0,Reactive2.0
Clock Error: <=0.5sec/per day(reference temperature); <=1.0sec/per day (the backup lithium battery working time)
Battery: Imported lithium battery voltage: 3.0 or 3.6V; capacitance >1000mAh; 1200bps~19200bps; it has the program both in inside and outside; update the date per 0.01 degree; two sets of battery keep the clock and relative data; setup the alarm data of the battery; loss and press blanking timing and electric consumption rate switches over time in the minimum interval for one minute.
