Product Specifications
Prod Model: |
HYY-18 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe |
Copper Thickness: |
1-5 Oz |
Board Thickness: |
0.5-5.0mm |
Layers: |
1-16 Layers |
Max. Board Thickness: |
5.0 mm |
Min. Line Width/Space: |
0.1mm |
Min. Letter Line Width: |
0.15mm |
Type: |
Rigid Circuit Board |
Flame Retardant Properties: |
V0 |
Dielectric: |
Aluminum Base Board |
Base Material: |
Aluminum Base Board |
Material: |
Aluminum Base Board |
Brand: |
Hyy |
Product Description
Product Description:

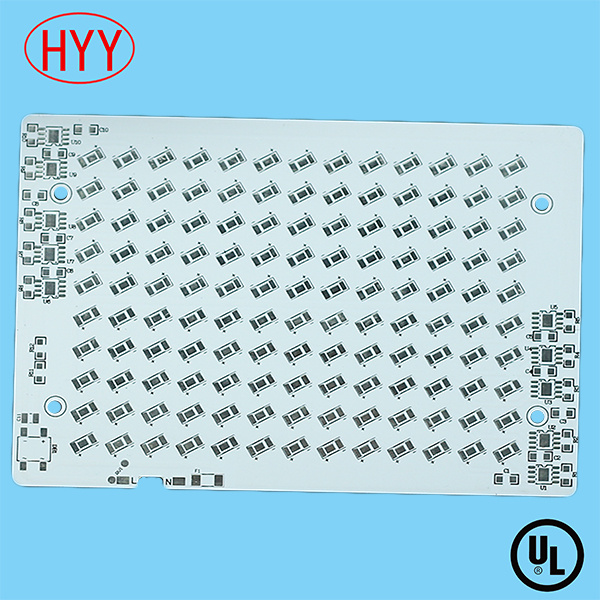

Aluminum PCB board
Board material: Normal
Board thickness:1.0mm
Copper thickness: 1oz
Thermal conductivity: 1.5W/MK
Withstanding voltage: 2000V
Solder resist: White
Surface finishing: solder coating
Special drill hole: NO
Certification: UL, ISO14001, ISO9001, SGS, TS16949
Used for high power led, electronics, machinery, industrial lighting and so on.
Good price and best price.
Factory Manufacture Capability |
NO | ITEM | Techinical capabilities |
1 | Materials | FR-4, CEM-3, Al Base, Cooper Base. |
2 | Material Type | TOTKING T111, EASTPOWER EPA-M0 |
3 | Layers | 1 Layer |
4 | Min. core material | PP |
5 | Max. board size | 600mm *1200mm |
6 | Copper Thickness | 1-5 OZ |
7 | Min. board thickness | 0.5 mm |
8 | Max. board thickness | 5.0 mm |
9 | Min. line width/space | 0.1mm |
10 | Min. Letter line width | 0.15mm |
11 | Min. Letter height | 0.8mm |
12 | Min. hole size | 0.75mm(NPTH) |
13 | Hole dia. tolerance | ±0.05mm |
14 | solder Mask | White, Black, Green |
15 | Outline Tolerance | ±0.15mm |
16 | Modeling | Punching, Routing, V-cutting |
17 | Special Hole | Blind hole, Blind slot, T-hole, T-slot, Counter sink hole, Cup hole |
18 | Peel Strength | >=1.3N/mm |
19 | Thermal Stress | 288ºC, 2min |
20 | Thermal Conductivity | >=2.0 W/m-k |
21 | Thermal Resistance | ≤0.55 ºC/W |
22 | Test Voltage | 5 V |
23 | Surface Finish | HAL , OSP , Immersion Gold |
24 | File Format | Gerber , DPF, HPGL,CAM,DXP,CADM,PADS |
25 | Dielectric Breakdown | >=2.5 KV |
26 | Max. Package Size | 1200mm*600 mm |
How to get a quote?( need provide us these information as below:)
Project | | Surface Finish | |
Note | | Stencil Manufacturing | |
Number of Layers | | Stencil Material | |
Material | | Stencil Thickness(um) | |
Material Thickness(mm) | | Stencil Format | |
Copper Thickness(um) | | PCB Dimensions(mm) | |
Solder Mask Color | | Min Finished Hole Size(mm) | |
Silk Screen Color | | Min Clearance(mm) | |
Milling | | Min Track Width(mm) | |
Remarks: please send gerber file with these formats: .PCB / .P-CAD / .DXP / .CAD / .Gerber
a) Base material: FR4/ AL/ FPC/ CEM-1/ CEM-3/ 94v0/ Rogers
b) Board thickness: 1.6mm-3.2mm/ 0.3mm-1.2mm
c) Copper thickness: Hoz/ 1oz/ 2oz/ 3oz/ 4oz, ect
d) Surface treatment: eg. Immersion gold/ OSP
e) color of solder mask and silkscreen: Green/White/Black/Red/Blue/Yellow
f) Quantity and board size
Delivery Timescales
Sample
*Single layer 4days
*Double Side 4-6days
*Aluminum PCB 7-10days
* Urgent Routing sample could be pushed 2-3 days earlier with premium.
Mass Production
*Single layer standard 10 days
*Double Side standard 12days
*Aluminum PCB standard 15days
*Material availability dependant.
Package & Shipping Method:
1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement
Payment method
1. T/T
2. Paypal
3. Western Union
Primary Competitive Advantages:
Country of Origin
Green Product
Price
Product Performance
Quality Approvals
Service
Small Orders Accepted
SHENZHEN HYY TECHNOLOGY Co., Ltd is a professional company engaged in developing and manufacturing single layer, double layers aluminum based PCB, copper based Printed Circuit Board (MBPCB/MCPCB)
With an investment of over 1.3 million US dollars, HYY TECH quickly grew to a point prominence in the industry, boasting an ultra-modern 4500 square meter manufacturing facility and a highly skilled team of 150 working staff, engineers, and technicians dedicated to producing and marketing state-of-the-art printed circuitry products world-wide. With a monthly production capability of 8, 000 square meters of circuitry, HYY TECH is poised to meet nearly all customer needs - small, medium, or large.
HYY TECH produces various types of high precision, Metal base printed circuit boards. Use and application of HYY TECH circuitry include and range from communication equipment, industrial control/Power, LED TV, instrumentation, automotive to consumer and industrial electronics and so on.
Certifications and international standards include US UL Certification, IS09001: 2008 Management System Certification, and 14001: 2004 Environmental Management System Certification. All products are subject to meeting and performing under IPC -A-600G standards.
HYY TECH proudly announces it value-added staff and personnel qualifications dedicated to producing high quality products and services essential to being a world leader of Metal printed circuitry.
