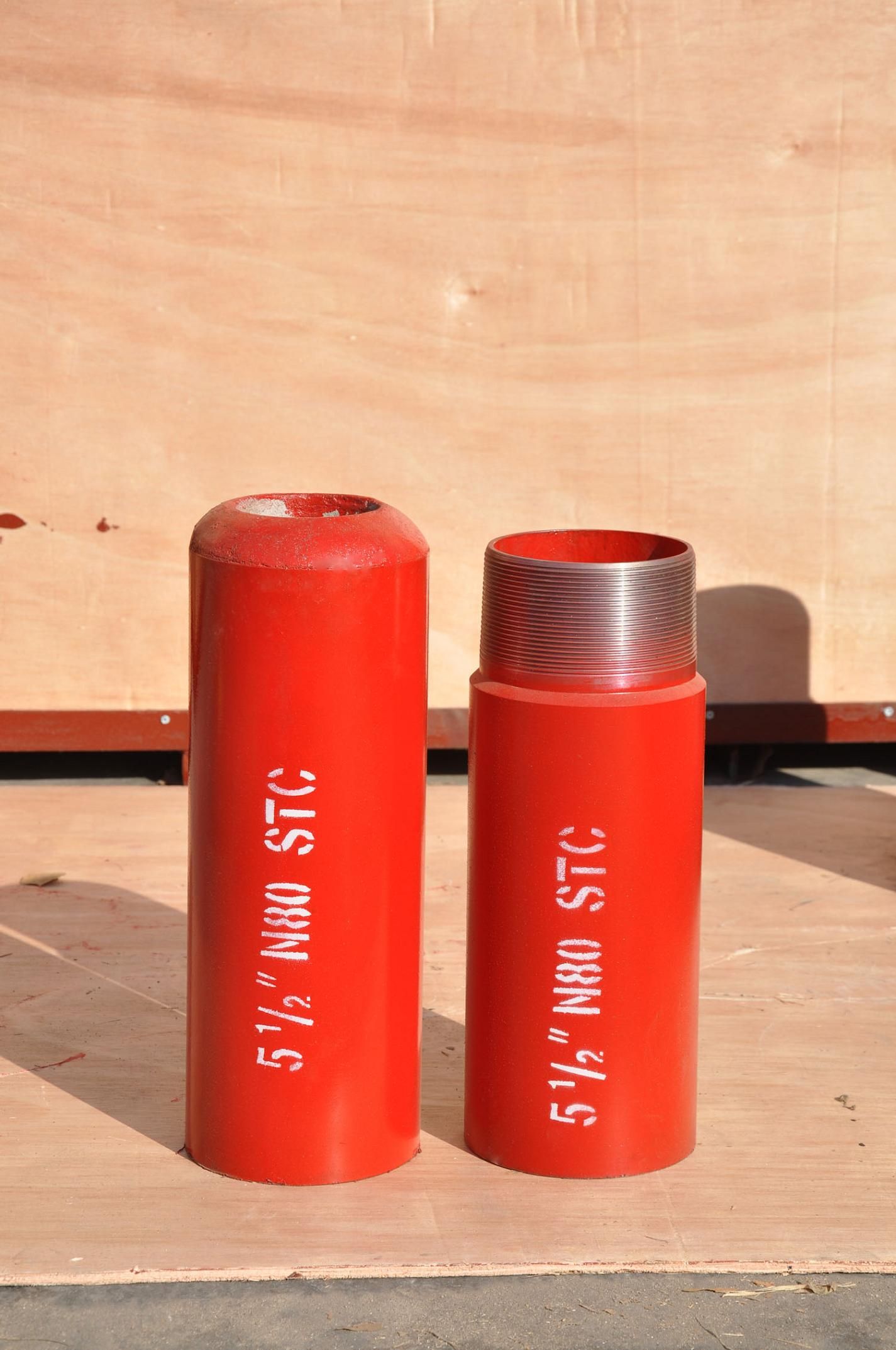

High Quality API 11e Cement Type Float Shoe

Product Specifications

Prod Model:	FS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Fx-Fzq
Condition:	New
Thread Type:	Stc/Btc/Ltc
Color:	Red, Blue or as Requested
Type:	Petroleum Drilling Tool & Accessory
Usage:	Well Drilling Machinery
Certification:	API 11e

Product Description

Float collar and float shoe are improved product developed by ourselves based on the modern technique inland and overseas. The inner component of the equipment is made up of drillable aluminium alloy, has the advantage of special configuration high tensity, light, strong pressure bearing, and good air proof capability, can be applied widely.

Size (in)		Bore O.D(in)	Bore ID(in)	Min. Bore parameter(in)	Thread type	Ib(in 2
Float coupling	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7"LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8	13 3/8" LCSG	3626
Float shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8	7"LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8	13 3/8" LCSG	3626

Casing Size	Max O.D.		Min.I.D.		Overall Length
in.	mm	mm	mm	in.	mm	in
7	208	8.189	157	6.181	1140	44.882
7-5/8	230	9.055	174.2	6.858	1140	44.882
9-5/8	282.5	11.122	220.5	8.681	1170	46.063
10-3/4	310	12.205	252	9.921	1211	47.677
13-3/8	384	15.118	315	12.402	1211	47.677
Casing Size	Max O.D.		Min.I.D.		Overall Length
in.	mm	mm	mm	in.	mm	in
7	208	8.189	157	6.181	1140	44.882
7-5/8	230	9.055	174.2	6.858	1140	44.882
9-5/8	282.5	11.122	220.5	8.681	1170	46.063
