FAQ about sand making machine:
Q: What're the main wearing parts of the sand making machines?
A: Mainly including cone for separating stuff, impacting plate, chutes, etc.
Q: How long can the VSI wearing parts be used?
A: The impacting plate can be used about 12-15 months, chutes 2-3 months, cone for separating stuff 2-3 months
Q: How to construct a sand making plant with Capacity 80T/H?
A: Using one JCE604 for primary crushing, 2 sets JCE1003 for secondary crushing, and one VSI1140 to make the materials into Sands, and one YZS1548 for screening.
Q: What else the sand making machine can be used for?
A: Sand making machine can be used for shaping the sands also, in order to get good shape.
Q: Do you have customers in Russia who are using your sand making plant?
A: Yes, there are seven sand making plants in Siberia.
Q: What's the lubrication system of the VSI crusher?
A: VSI crusher using rare oil lubrication and automatic maintenance system, the machines can operate one month uninterrupted.

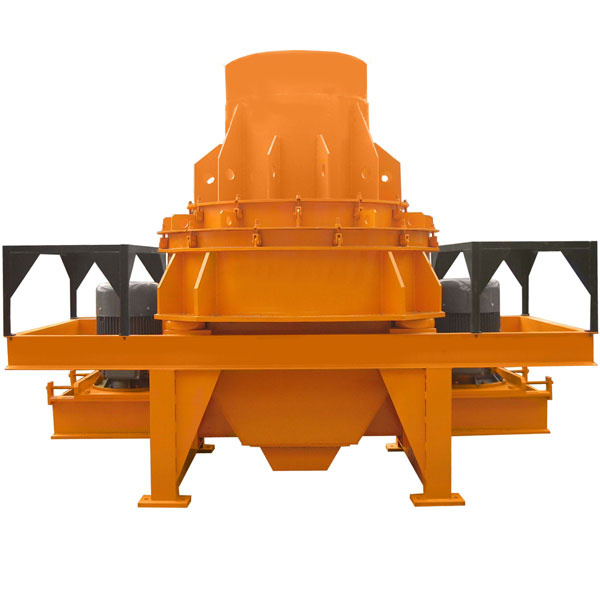

VSI Sand Making Machine, Sand Maker, sand making machinery
Our Sand Making Machine is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand. Zenith B Series Sand Making Machine is one of the most advanced impact crushers nowadays. It introduces high quality roller bearings like Sweden SKF and America TIMKEN, which ensure the smooth running of main unit. Personalized design is used in upper cap, sand making machine is easy and convenient to maintain and replace spare parts. Sand Making Machine is our sole patent using central feeding & central cascade feeding, which can be changed based on customers' needs.
Sand Making Machine Features:
1. The structure is simple, and the operating cost is low.
2. High efficiency, and low consumption.
3. Sand Making Machine is slightly influenced by the humidity of material, and the max humidity is 8%.
4. Sand Making Machine is more suitable for crushing mid-hardness materials and high-hardness materials.
5. Its product is cubic, and the density of piling up is high and the iron pollution is low. 6. The working noise is less than 75 decibels and dust pollution is little
|
Model |
B-7615DR |
B-8522DR |
B-9532DR |
B-1145DR |
|
Throughput Capacity (t/h) |
Cascade and central feeding |
150~280 |
240~380 |
350~540 |
500~640 |
|
Central feeding |
70~140 |
120~200 |
180~280 |
250~360 |
|
Max.Feeding dimension (mm) |
Soft material |
<35 |
<40 |
<45 |
<50 |
|
Hard material |
<30 |
<35 |
<40 |
<45 |
|
Rotation speed(r/min) |
1700~1900 |
1500~1700 |
1300~1510 |
1100~1310 |
|
Double motor power (kw) |
110~150 |
180~220 |
260~320 |
400~440 |
|
Overall dimension (LxWxH)(mm) |
4100×2330 ×2300 |
4140×2500 ×2700 |
4560×2600 ×2900 |
5100×2790 ×3320 |
|
Weight(t) |
8.6 |
11.8 |
17.5 |
27.5 |
|
Power |
380v,50Hz |
|
Labrication System |
Double pump motor power |
2X0.31kW |
|
Safety |
Altemative double pump oil supply;machine stops automatically without oil flow or oil pressure.water cooling,motor warm start in winter. |
|
Overall dimension (LxWxH) |
820X520X1270 |
|
Gasoline tank heating power |
2KW |
Ming Xu Heavy Machinery Co., Ltd. Yuzhou City, Henan Province
Founded in 1989, is a professional manufacturer of crushing and screening equipment and has large steel castings private enterprises. Has more than 600 employees, including 20 senior management and more than 50 intermediate technical personnel. The company located in Yuzhou Garden West industrial area, two kilometers from Zheng stone high-way and the Yongdeng high-way. Transportation is very convenient, strong technical experience well-equipped with all kinds of machine tools.
Smelting and testing equipment: 20 ton electric arc furnace, 5 ton electric arc furnace, Germany Spike spectrum analyzer. Improved detection methods, advanced process.
The main products are jaw crusher, impact crusher, cone crusher equipment, products widely used in mining, chemical, metallurgy, building materials, coal, and refractory industry.
We have our own foundry plant where lots of spare parts of the crushing and screening equipment are manufactured and plenty stored, which help us to meet our customer demand by offer them spare parts conveniently.
It implements Total Quality Control (TQC) and has passed ISO9001, ISO14001 Quality Management System Certification and Environmental Management System Certification.
The company's products are sold in Ningxia, Lanzhou, Harbin, Xinjiang, Xuzhou, Xi'an, MSC, Taiyuan, Guizhou, Guangzhou and other provinces within China and our products has been exported to Russia, Kazakhstan, Azerbaijan, Turkey, Kuwait, South Africa, Nigeria, Egypt, Vietnam, Malaysia, India, Australia, Korea, Canada and other countries.
We have quick responds after sales services, all the spare parts are also manufacture from our company that is why we stand best among our competitors. We see customers demand as motility and our principle is honoring our customers domestically, overseas with best quality at affordable price.
Our aim is: quality first, service first, reputation first, dedicated service for our customers.
