Qingdao Jiuyong Hydraulic Power Co., Ltd. >> High Quality Barb Hose Tail Fitting (1/4")

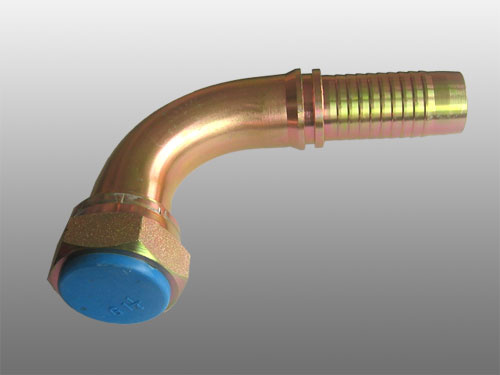

High Quality Barb Hose Tail Fitting (1/4")

Supplier:	Qingdao Jiuyong Hydraulic Power Co., Ltd.
Price:	US $ 1/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	1/4"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Yellow or Clear Zinc Plating
Material:	Medium Carbon Steel
Standard:	BSW
Connection:	Female

Product Description

High Quality Barb Hose Tail Fitting(1/4")
1. Product Name: BSP FEMALE MULTISEAL hose fitting/Hydraulic Hose Fitting
2. Hose fitting use with braided hose
3. Description: BSP Female Fitting Cone Seal fitting
Material: Carbon Steel, Stainless Steel pipe fittings

Standard: BSP Fitting
ST'S Standard Or As customers's drawings for steel fitting and pipe fittings

Our BSP Hydraulic Hose Fittings also have three types: 90° Degree, Staight, 45° Degree hose fitting.
We produce Hydraulic Hose and Hose Fittings. Anything pls feel free to contact me.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S1	S2	H
29691 -04-04	G1/4"-19	6	04	8	19	19	38
-04-05	G1/4"X19	8	05	8	19	19	41
-06-06	G3/8"-19	10	06	9	22	22	45.8
-08-08	G1/2"-14	12	08	12	27	27	53
-10-10	G5/8"X14	16	10	11.5	30	30	61
-12-12	G3/4"-14	20	12	13.5	32	32	69
-16-16	G1"-11	25	16	16	41	41	76.5
-20-20	G1.1/4"-11	32	20	18.5	50	50	90
-24-24	G1.1/2"-11	40	24	19	55	55	105

Qingdao Jiuyong Hydraulic Power Co., Ltd is a specialized SGS China factory with hydraulic hose assembly, hydraulic hose, hydraulic fittings and concrete pump production experience for many years.

Our managing scope relates to various fields such as hydraulic system etc; Including all kinds of the materials with different pressure levels, the flexible hydraulic hoses with various size criterions, hydraulic fittings, hose fittings, adaptor, elbow, tee, cross, ferrule, flange etc.

We have advanced imported crimping machine for hydraulic hose assembly. Providing reliable products at reasonable prices has won us customers all over 20 countries and regions, such as Russia, Brazil, Pakistan, Vietnam, Spain etc. Welcome to visit and negotiate business.

We are looking forward to established long-term cooperation relation with you, and create a better future together.
