Zhangjiagang Blissum Machinery Co., Limited >> High Quality Beverage Processing System

High Quality Beverage Processing System

Name: High Quality Beverage Processing System
Brand: china-manufacturer-directory.com
SKU: 755489315
Availability: InStock
Rating: 4.7 (76 reviews)

Supplier:	Zhangjiagang Blissum Machinery Co., Limited
Price:	US $ 20000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BLS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania
Delivery Time:	60days After Payment
Material:	Stainless Steel
Certificate:	ISO/CE
Shipment Terms:	by Sea or by Train
Composition:	Filling Machine

Product Description

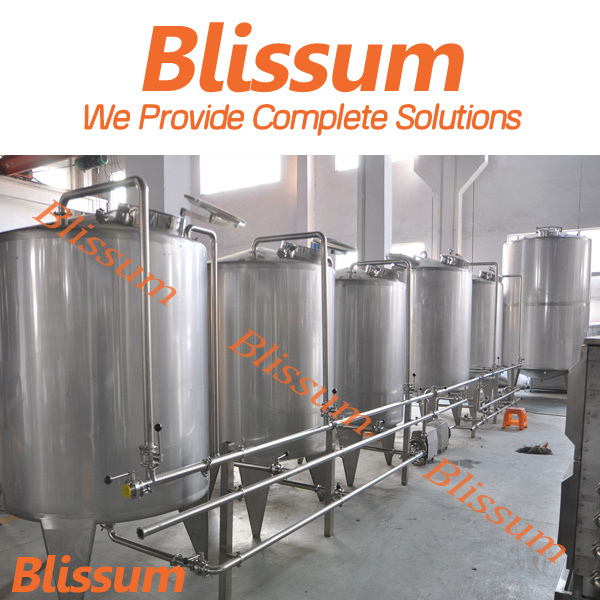

Water Tank & Beverage Processing Machines & Liquid Filling plant
This Beverage equipments produce several types of beverage, Juice ,water ,Carbonated drinks.
It is widely used in Beverage drink industrial production Plant.
When you need any help ,Blissum will help you more.
Main Processing equipments of Blissum:

Equipment list of PET beverage processing line
Flow No.	Name	Size	Brief Specification
A	hot water generating system
A-1	hot water tank	V=2000L	SUS304 stainless steel, PU insulation, cone cover, sealed manhole, digital show thermometer, air vent, overflow pipe, anti-eddy plate, adjustable legs, thickness of tank wall is 3mm, outer 2mm, glas tube level indicator
A-2	hot water pump	Q=5T/h	SUS304 stainless steel , pump lift 24M , Hard Alloy Mechanical Seal
A-3	plate heater	Q=5T/h	SUS304 stainless steel, use A3 supporter,cladding with stainless steel, use steam for heating, hot water, one stage,hasp type gasket sealed
A-4	temperature control system	Q=5T/h	Germany Burkert steam regulating valves, UK Spirax Sarco steam reducing valve, Germany temperature sensor, pneumatic two position and three way valves are made in China
B	sugar and glue melting and mixing system
B-1	high speed emulsification tank	V=1000L	SUS304,double layer with PU insulation, high speed mixer mounted from top to bottom, the speed is 2900rpm, CIP cleaning balls, adjustable legs,breath valve, inside with graduation
B-2	high speed mixing tank	V=1000L	SUS304,double layer with PU insulation, quadrate shape,high speed mixer mounted from top to bottom, the speed is 2900rpm, CIP cleaning balls, adjustable legs,breath valve, inside with graduation
B-3	CIP return pump	Q=20T/h	SUS304 stainless steel , pump lift 24M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
B-4	milk pump	Q=10T/H	SUS304 stainless steel , pump lift 36M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
B-5	platform for mixing material		SUS304 , stainless steel stairs and handrail, stainless steel checkered plate on surface, 350010001000mm
B-6	duplex filter	Q=10T/H	SUS304 , tube type , 100M
B-7	plate cooler	Q=10T/H	SUS304 , A3 supporter,one stage, cool by tower water, hasp type gasket sealed
C	juice concentrate blending system
C-1	vertical type screw pump	Q=2T/h	food sanitary grade, manual adjustable
C-2	blending tank	V=6000L	SUS304 stainless steel , single layer , top off- center vertical agitator 36rpm , airtight manhole , conical head , CIP spraying ball,glass tube level indicator, breather valve , supporters with adjustable feet
C-3	milk pump	Q=10T/h	SUS304 stainless steel , pump lift 24M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
C-4	CIP return pump	Q=20T/H	SUS304 stainless steel , pump lift 24M , Hard Alloy Mechanical Seal , Inner Shell Bright-Polished
C-5	duplex filter	Q=10T/H	SUS304 , tube type , 100M
D	pasteurizer , degassor and homogenizer system
D-1 ~ 7	tubular sterilizer	Q=6T/h	milk enter at ( 25~30 °C) - degass at ( 70 °C) -homogeninze at ( 65 °C) -sterilization at 137 °C hold for 15S- discharge at ( 85-92 °C) ,product return at 30-40 °C , fully controlled by PLC, with frequency inverter, this machine used for hot filling
D-2	degassor	Q=6T/h	fully auto controled, include pressure transmitter and water ring type vacuum pump
D-3	homogenizer	Q=6T/h	working pressure 25MPa , include frequency inverter, and liquid pressure control, starting box
E	PET hot filling system
E-1	equipments before PET hot filling	Q=6T/h	include bottle blowing machine, air delivery duct,Vial distributing machine,capper,cap cleaning belt etc.
E-2	PET filling machine	Q=6T/h	12000P/H , hot filling
E-3	processing system after filling	Q=6T/h	include turning over sterilization chain, spraying tunnel, labeling, blow drier, package etc.
F	semi-automatic CIP system
F-1 ~ 7	semi-automatic CIP system	3×1500L	Germany Burkert temperature auto control system, heating by tube , acid/alcali concentrate adding system , plastic buket 80L×2SUS304 , semi-automatic , one line
F-8	CIP return pump	Q=10T/h	SUS304 , pump head 36M
G	installation part
G-1	installation		include stainless steel and carbon steel pipes and fittings,electric installation material etc

Established in 2002, Blissum is one of the professional & reliable China manufacturers & provide of liquid & semi-liquid filling machinery, sealing capping machinery & other liquid packaging machinery with reliable machine quality & after sale service!

Our extensive experience of liquid & semi-liquid filling & packaging and container handling enables us to offer complete solutions to designs, manufactures, supplies, installs, maintains, troubleshoots, and upgrades plants for complete processing and packaging lines with special emphasis on bottling in glass, PET, Jar, can, and kinds of container

With a flexible approach, we are able to provide the right solutions for a diverse customer base, from small start up companies through to major national companies. Our many satisfied customers come from a very wide range of industries, including toiletries, cosmetics, pharmaceuticals, food, drink, household products and chemicals.

Blissum with ethos focus on after sale customer service, strive to achieve excellence, from our initial response to your enquiry to our after sales support and spares service.
