Product Specifications
| Prod Model: |
BF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sale Service: |
Whole Using Life |
| Installation: |
Technical Guidance |
| Price: |
Negotiable |
| Type: |
Flotation Separator |
| Voltage: |
380V |
| Color: |
Multi Color |
| Certification: |
CE |
| Customized: |
Customized |
| Warranty: |
1 Year |
| Condition: |
New |
| Weight: |
270kg~8970kg |
Product Description

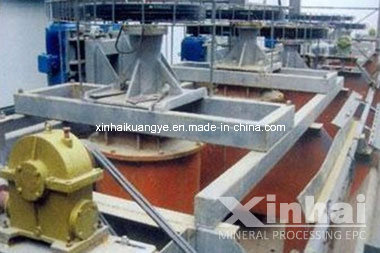

BF Floatation Cell
Flotation Cell— Introduction
A mechanical agitation type floatation cell unit with self-air suction and combination of slurry suction/no slurry suction
Flotation Cell— Effective Volume
0.15~ 24m3
Flotation Cell— Product Improvement
BF flotation cell has two types: Type I and type II. Type I is improved as suction cell referring to model SF; Type II is improved as direct flow cell referring to model JJF. Both are briefly called model BF.
Flotation Cell— Advantages
Large air suction volume, low energy consumption
Each tank with air suction, slurry suction and floatation function does not need any accessory equipment to form floatation circle, which is convenient for process flow changing
The reasonable slurry circulation minimizes coarse sand sediments
Auto-control device of slurry volume, convenient adjustment
Flotation Cell— Work Principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Flotation Cell— Product Structure
BF floatation cell is composed of impeller, cover plate, main shaft, the center tube, and tank etc...The impeller is installed on tank main beam driven by V-belt and motor. The impeller is composed by double cones that produce strong slurry lower circulation. In addition, slurry auto-control device adjusts liquid surface
BF flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to roughing and cleaning of large and middle scale floatation plants.
|
Model |
Effective Volume
(m 3 ) |
Length×Width×Height
(mm) |
Diameter
of
Impeller
(mm) |
Peripheral Speed
of
Impeller
(m/s) |
Air Suction Volume
(m 3 /m 2 .min) |
Motor Model |
Motor Power (kw) |
Capacity
(m 3 /min) |
Single Tank Weight
(kg) |
|
BF-0.15 |
0.15 |
550×550×600 |
200 |
6 |
0.9-1.05 |
Y112M-6 |
2.2 |
0.06-0.16 |
270 |
|
BF-0.25 |
0.25 |
650×600×700 |
250 |
6 |
0.9-1.05 |
Y100L-6 |
1.5 |
0.12-0.28 |
370 |
|
BF-0.37 |
0.37 |
740×740×750 |
286 |
7.2 |
0.9-1.05 |
Y90L-4 |
1.5 |
0.2-0.4 |
470 |
|
BF-0.65 |
0.65 |
850×950×900 |
300 |
7.35 |
0.9-1.10 |
Y132S-6 |
3 |
0.3-0.7 |
932 |
|
BF-1.2 |
1.2 |
1050×1150×1100 |
450 |
7.02 |
0.9-1.10 |
Y132M2-6 |
5.5 |
0.6-1.2 |
1370 |
|
BF-2.0 |
2 |
1400×1450×1120 |
500 |
7.5 |
0.9-1.10 |
Y160M-6 |
7.5 |
1.0-2.0 |
1750 |
|
BF-2.8 |
2.8 |
1650×1650×1150 |
550 |
8.06 |
0.9-1.10 |
Y180L-8 |
11 |
1.4-3.0 |
2130 |
|
BF-4.0 |
4 |
1900×2000×1200 |
650 |
8 |
0.9-1.10 |
Y200L-8 |
15 |
2.4-4.0 |
2585 |
|
BF-6.0 |
6 |
2200×2350×1300 |
700 |
7.5 |
0.9-1.10 |
Y225S-8 |
18.5 |
3.0-6.0 |
3300 |
|
BF-8.0 |
8 |
2250×2850×1400 |
760 |
7.5 |
0.9-1.10 |
Y225M-8 |
22 |
4.0-8.0 |
4130 |
|
BF-10 |
10 |
2250×2850×1700 |
760 |
7.52 |
0.9-1.10 |
Y225M-8 |
22 |
5.0-10 |
4500 |
|
BF-16 |
16 |
2850×3800×1700 |
850 |
8.7 |
0.9-1.10 |
Y280S-8 Y280M-8 |
37 45 |
8.0-16 |
8320 |
|
BF-20 |
20 |
2850 ×3800×2000 |
850 |
8.7 |
0.9-1.10 |
Y280S-8 Y280M-8 |
37 45 |
10.0-20 |
8670 |
|
BF-24 |
24 |
3150×4150×2000 |
920 |
8.7 |
0.9-1.10 |
Y280M-8 |
45 |
12.0-24 |
8970 |
