High Quality Ceramic Fiber Module/Block for Furnace Insulation

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Refractoriness (',℃):	1580< Refractoriness< 1770
Feature:	Long Time Materials
Type:	Refractory Material
Shape:	Block
Material:	Alumina Block

Product Description

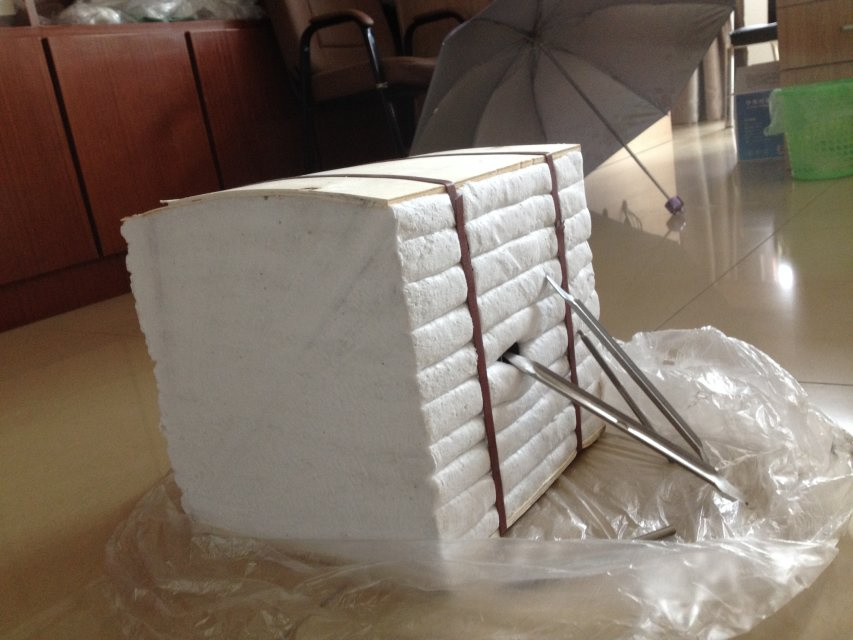

Ceramic insulation fiber module

Ceramicfiber module are widely used in annealing furnace, forging furnace, aluminum melting furnace, sintering furnace, carbonization furnace, cover insulation lining, rotary furnace, various types of heat treatment furnace, glass furnace, high temperature test furnace, roller kiln, shuttle kiln, tunnel kiln, special ceramic firing kiln, cracking furnace, transformation and hydrogen furnace, vacuum furnace, coke oven etc.

Advantages of ceramic fiber module for furance kiln:

	Petrochemical furnaces,cracking furnaces
	Steel industry furnace,annealing furnace,roller hearth furnace,etc
	The aluminum industry for hot furnace, furnace for ceramic,industry tunnel kilns,intermittent kilns
	Waste recycling,combustion chamber
	High-end household appliances insulation device
	Furnace lines of various industrial furnace
	heating equipment in metallurgy, machine, construction and material, petrol-chemical and ferrous metal industry.

Technical index of ceramic fiber module for furance kiln:



Item      products		COM	STD	HP	HA	HAZ	HZ
Classification Temperature(ºC)		1100	1260	1260	1360	1360	1430
Working Temperature(ºC)		<1000	1050	1100	1200	1200	1350
Density kg/m3		220±15	220±15	220±15	220±15	220±15	220±15
Chemical Composition %	AL2O3	42-44	45-46	47-49	52-55	45-46	39-40
	AL2O3+SIO2	96	97	99	99	-	-
	AL2O3+SIO2 +ZrO2	-	-	-	-	99	99
	ZrO2	-	-	-	-	5-7	15-17
	Fe2O3	<1.2	<1.0	0.2	0.2	0.2	0.2
	Na2O+K2O	≤0.5	≤0.5	0.2	0.2	0.2	0.2
specification(mm)		Ordinary:600×240-300×100-200(No anchoring parts)300×300×250(Contain anchoring parts) the module can be made according to customers' requirement

Packaging & Shipping
Packing and shipping of ceramic fiber module for furance kiln:
Packing:PE bag inside PP woven bag outside or carton box outside
Shipping: about 7-15 days after confirm the order
