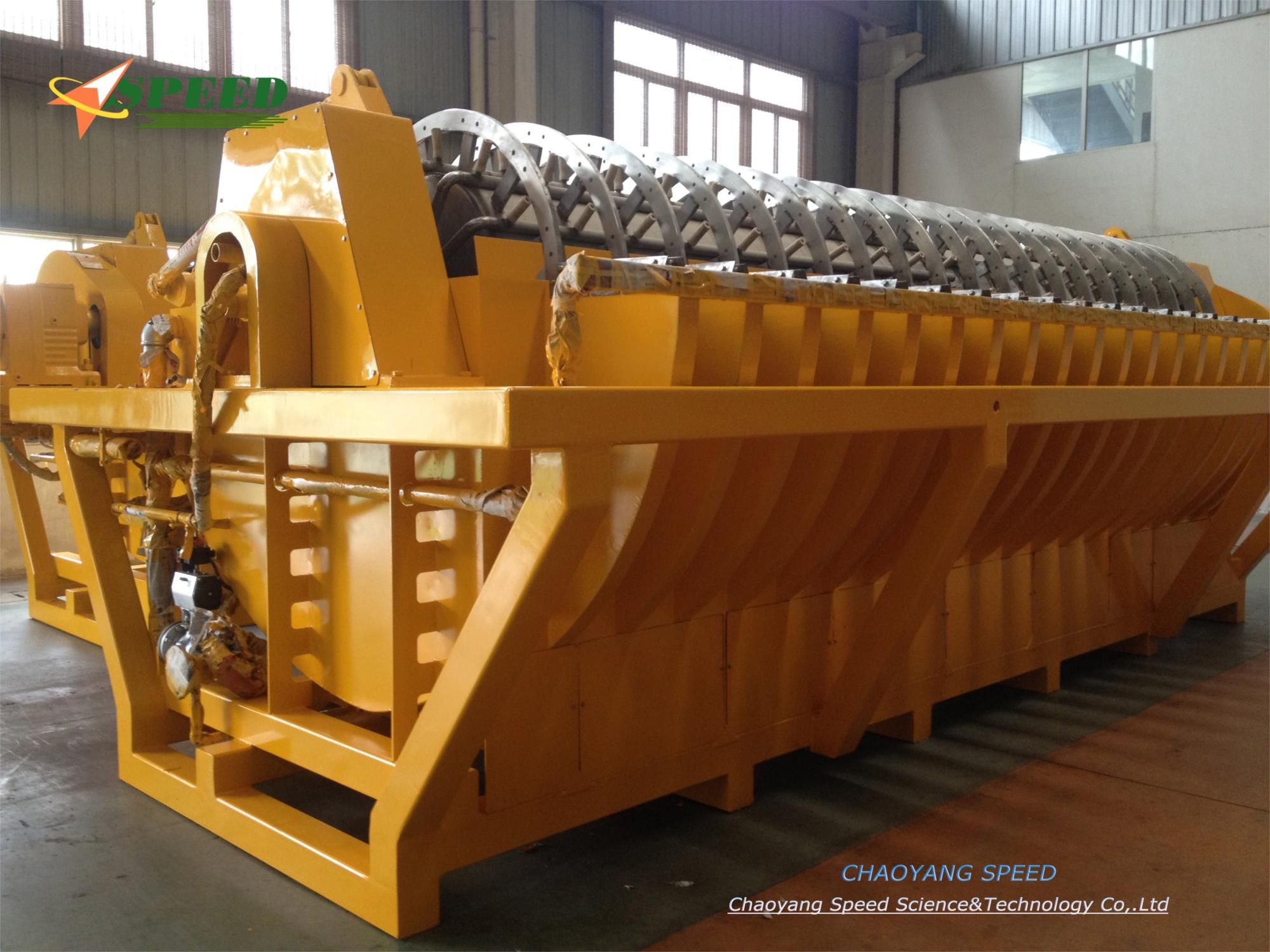

High Quality Ceramic Filter
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mode No.: |
Tt |
| Usage: |
Industria, Mining |
| Centrifuge Installation: |
Horizontal |
| Motive Force: |
Electric Power |
| Color: |
Customized |
| Performance: |
Efficient Filtration |
| Installation: |
Technical Guidance |
| After Sale Service: |
Whole Using Life |
| Price: |
Negotiable |
Product Description
Speed High Quality Ceramic filter
1.Working principleWorking of special ceramic filter is based on the principle of the micron pores. Which takes the ceramics with micron pores as the filtering medium, by utilizing the solid liquid separating device designed by adopting the principle of capillary function owe to their big quantity of the micron pores and the round disk filter working under negative pressure, making use of the special feature of the micron pores ceramic plate through which the water can go and air can not pass vacuuming the inner chamber of the ceramic plate and establish the press difference with the outside of the plate, and the suspending material and be absorbed on the ceramic plate under the negative pressure while the solid material stay on the surface of the plate because they can not go through the micron pores cermic plate, and because of the existing of the vacuum pressure difference and the hydrophilicity of the ceramic plate, the liquid can be discharged or rcycled by passing through the plate and entering the gas-liquid districution device(vacuum drum) and thus achieve the goal of the solid-liquid separating.
One Operating circle of the rotating parts(ceramic plate) can be divided into four sections: Slurry section, drying section, material discharge section, cleaning, and these four sections cycling continously during the running of the filter.
2.Product Feature1.High efficient.Energy saving and Environmental protection
2.Stable performance
3.A high degree of intelligence
4.Filter board supervisor performance
5.Distributing valve device
6.Ultrasonic cleaning system
7.Stirred device
8.Backwashing system
9.Automatic drainage system
10.Special cleaning device
3.Product Application AreasAs the key product of the nation and brand product of Speed company,the TT series ceramic filter has strong proccessing ability with broad applicable scope. I t has already successfully gained market access into 25 province of China,and even some countries such s Bengal,Kazakhstan,Armenia,South Korea,Zambia,Brazil,Chile, etc.The TT series ceramic filter has been widely and successfully applie in numerous solid-liquid sepration industry fields such as iron,iron tailings,concentrated gold,concentrted copper, gypsum filtering,slag, nonmetllic ore, unclean acid and sewage process.
| Main Technical Parameters of the TTSpecial Ceramie Filter | TT-4 | TT-12 | TT-18 | TT-24 | TT-30 | TT-45 | TT-60 | TT-80 | TT-100 | TT-120 |
|
|
area of ceramic plate
(m2/a disk) | 2 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 6 |
| QTY of ceramic plate(piece) | 24 | 48 | 72 | 96 | 120 | 108 | 144 | 192 | 240 | 240 |
| QTY of disk (disk) | 2 | 4 | 6 | 8 | 10 | 9 | 12 | 16 | 20 | 20 |
| filtering area(m2) | 4 | 12 | 18 | 24 | 30 | 45 | 60 | 80 | 100 | 120 |
| power of machine(kw) | 7.6 | 9.2 | 12.5 | 15.8 | 19.75 | 25.45 | 35.4 | 49 | 63.9 | 81.9 |
| running power(kw) | 6.6 | 7.4 | 9.9 | 12.4 | 15.55 | 19.85 | 28 | 39 | 51.5 | 67.5 |
| weight(kg) | 2000 | 5000 | 6000 | 7500 | 9000 | 11500 | 13800 | 18500 | 21500 | 24500 |
| length(mm) | 2460 | 3200 | 4600 | 5200 | 5800 | 5170 | 6600 | 7990 | 9190 | 9190 |
| width(mm) | 2480 | 3060 | 3100 | 3170 | 3170 | 3450 | 3450 | 3720 | 3720 | 3850 |
| height(mm) | 2100 | 2450 | 2490 | 2530 | 2530 | 2900 | 2900 | 2960 | 2960 | 3180 |
Water Content for the Filteration of Some Material| mineral types | size distribution | concentration range % | output kg/m2.h | water content % |
| iron concentrate | -200 eyes account for 52% | 45~65 | 500~1000 | 7~10 |
| sulfur concentrate | -200 eyes account for 75% | 40~55 | 400~800 | 10~13 |
| copper concentrate | -200 eyes account for 33% | 40~55 | 400~600 | 10~15 |
| gold concentrate | -200 eyes account for 74% | 40~55 | 300~450 | 11~13 |
| zinc concentrate | -200 eyes account for 99% | 45~55 | 500~700 | 12~13 |
| phosphorus concentrate | -200 eyes account for 30% | 45~65 | 550~700 | 10~13 |
| sulfur mine tailings | -400 eyes account for 92% | 45~55 | 300~400 | 13~15 |
| cyanide residue | -325 eyes account for 839% | 40~55 | 350~550 | 25~27 |
| iron mine tailings | -200 eyes account for 83% | 45~55 | 350~600 | 11~13 |
| copper mine tailings | -400 eyes account for 90% | 45~55 | 350~450 | 11~15 |
| molybdenum mine tailings | -200 eyes account for 80% | 50~55 | 350~450 | 12~15 |
| phosphorus mine tailings | -400 eyes account for 80% | 50~60 | 350~700 | 12~15 |
If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials, feeding size, you required output size, capacity and other special requirement. Our engineer will choose the optimum type and our salesman will send you the reasonable price. Thank you.
Chaoyang Speed Science & Technology Co., Ltd. ("Speed" for Short) is located by Daling River in Chaoyang City, with convenient traffic conditions and attractive landscape. Speed integrates the products development, technical consultation, equipment manufacture and installation, as well as products sales. Speed has strong technical strength. The main technical staffs are medium and senior engineers holding solid theoretical basis and rich experience in the fields of cement, metallurgical and mining machineries, who have laid the foundation for the development of Speed.
Speed specializes in the business of cement equipments, building materials, as well as metallurgical and mining equipments.
The production base of Chaoyang Speed Science and Technology Co., Ltd is Chaoyang Heavy Machinery Manufacture plant which is located in Chaoyang City, Liaoning Province which is the large-sized key enterprise in National Building Material Machinery Industry. The registered capital of our company is RMB 40 Million. There are total eight subsidiary companys with independent legal person that is Machining Plant, Metallic Structure Company, Large-sized Casting Company, Large-sized Gear Company, Electric Control Company, IMP&EXP Company, Equipment Sales Company. All the subsidiary companys take Chaoyang Heavy Machinery Manufacture plant as core combinated with production design, machining, producing, assembly, supervision and service after sale. Our company is a large-sized comprehensive equipments producing company which mainly produce cement and metallurgy equipments and our company is one of the largest cement equipments producing companys in the East-North of China. The total capital of our company is RMB 0.85 Billion and there are total 1863 employees. The area of our company is 800 acres.
The main equipment of our company is Dia. 8m Vertical Lathe, Dia. 10m gear hobbing machine, 8m Gantry milling machine, 200mm floor-type boring and milling machine, 3200mm blending machine, 150t crane and 40t electric furnace that is controlled by national improved CUP automatically.
The main production of our company is rotary kiln, ball mill, stacker-reclaimer, dryer, grate cooler, vertical mill, roller press, crusher, pre-heater, packing machine, high efficiency separator, electric dust collector, medium-speed coal mill, mixer, nodulizer and etc. The production capacity of our company is 30, 000 tons of equipments and structure parts and 20, 000 tons of casting parts.
Our company has a completed management system and our productions have been selled to 27 provinces all around China. Our company has import&export right ourselves and the productions have been exported to many other countries such as Brazil, Angola, Russia, Vietnam, Mongolia and etc. Our company build a Technology Research Center in 2006 with strong independent researching capacity. Now our company can produce the completed set of cement equipments for 5000t/d class.
