High Quality Clock Movement with I Shaft

Name: High Quality Clock Movement with I Shaft
Brand: China-Manufacturer-Directory.com
SKU: 701033722
Availability: InStock
Rating: 4.7 (52 reviews)

Supplier:	Dongguan Jiahao Clock Manufacturing Co., Ltd
Price:	US $ 0.49-1.0/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

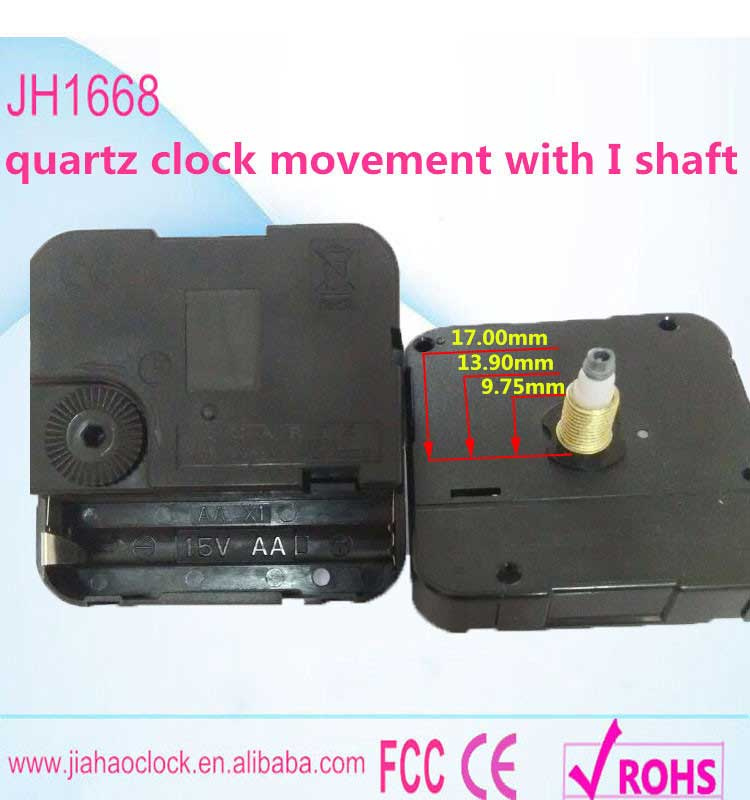

Prod Model:	JH1668HTSA-17
Markets:	Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe
Minute Shaft Length:	17.00mm
Hand Shaft Length:	13.90mm
Centre Screw Height:	9.75mm
Battery Size:	AA Size
Battery Life:	2 Years
Defective Rate:	No More Than 0.3%
Time Keeping Accuracy:	+/-1sec/Day at 1.5V DC 25°
Warranty:	2 Years
Certification:	CE FCC RoHS
Applications:	Wall Clock
Type:	Clock Movement
Material:	Plastic
Display Methods:	Analog
Style:	Antique

Product Description

More details about this model:

Description	Standard Clock Movement High Torque Extended I Shaft for Wall Clock
Model	JH1668HTSA-17
Minute Shaft Length	17mm
Hand Shaft Length	13.90mm
Centre Screw Height	9.75mm
Material	ABS
Size(mm)	565616.3
Accessories	hexagon nut, rubber pad, metal washer
Packing	500pcs/ctn with foam tray
Carton size(cm)	37* 39*41
Delivery time	12 days
MOQ	500pcs
Payment	T/T, Western Union

Different Models:

Calibre	Minute Shaft Length	Hand Shaft Length	Centre Screw Height	Dial Fixing Mode
Calibre	Minute Shaft Length	Hand Shaft Length	Centre Screw Height	Centre Screw	Snap in
JH1668HTSA-13	13.00mm	9.90mm	6.05mm	*
JH1668HTSA-14.5	15.00mm	11.90mm	6.95mm	*
JH1668HTSA-15	17.00mm	16.90mm	7.95mm	*
JH1668HTSA-17	17.00mm	13.90mm	9.75mm	*
JH1668HTSA-20	20.00mm	16.90mm	12.45mm	*
JH1668HTSA-23	23.00mm	19.90mm	15.62mm	*

Technical Parameter

Crystal Oscillator	32.768KHz
Operating Voltage	1.3V to 1.7V
Operating Temperature Range	-10°C to 50°C
Torque At Second Hand	Over 280 uNm
Current Consumption	Less than 130uA at 1.5V DC
Time Keeping Accuracy	+/-sec/day at 1.5V DC 25°
Battery Life	Approx 10 months
Warranty	2 years

Our company are specializing in producing standard quartz clock movements step movements, switch movements, sweep movements, alarm movements and pendulum movements clock hands, Thermometer etc. If you are interested in any of our products, please don't hesitate to contact with us. Your inquires are always welcome. We sincerely look forward to building up good relationship with you. Believe us and develop together. You ar welcome.
