High Quality Conference System UHF&Pll Synthesized Wireless Microphone

Name: High Quality Conference System UHF&Pll Synthesized Wireless Microphone
Brand: china-manufacturer-directory.com
SKU: 695925582
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,EXW
Min Order:	100/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

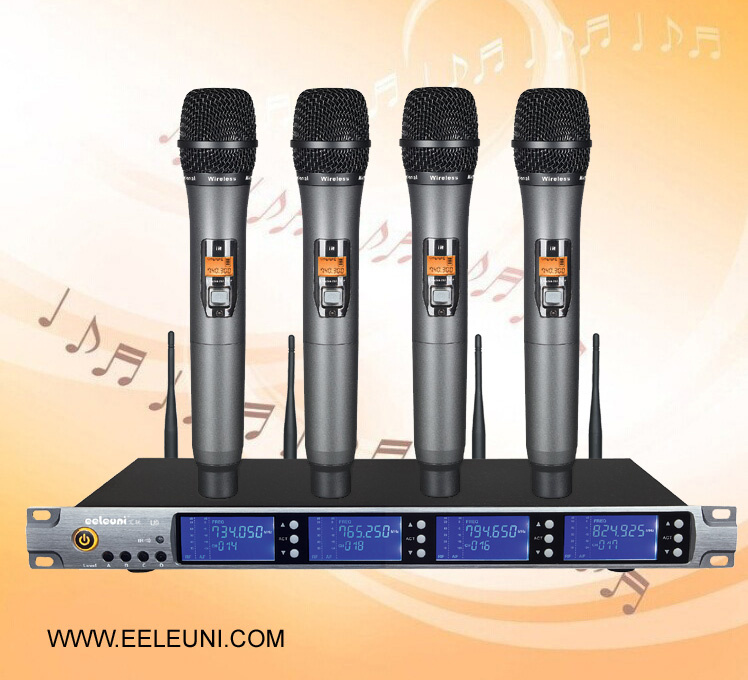

-- There are 4 channels in one receiver, can supply 4 transmitters to use.
-- 99 selectable frequencies in each channel.
-- It can use 4 receivers in the same place; it means 16 transmitters can be used at the same time.
-- The front panel of the receiver is provided with a power supply indicator lamp and the signal lamp which can reflect the working status clearly.
-- Using 4 card antennas for receiving.
-- Using distance is 80 meters in the perfect place.

Receiver
Carrier Frequency Range	UHF 730-850 MHz
Frequency Stability	±0.001%
Max Deviation Range	±50KHz
Modulation Mode	FM
S/N Ratio	>105dB
T.H.D	<0.5%@1KHz
Sensitivity	1.2/UV@S/N=12dB
Power Supply	DC 14V 800mA
Audio Output	Independence: 0-400mV Mixed Style: 0-300mV


Transmitter
Oscillation Mode	PLL Synthesized
Carrier Frequency Range	UHF 730-850 MHz
Frequency Stability	±25KHz
Power Supply	DC 3V (1.5V AA*2)
Power Consumption	100mA
S/N Ratio	>105dB
F/N Ratio	>80dB
Dynamic Range	≥100dB
Type	Condenser / Dynamic
Polar Mode	Super Heart-Shaped Directivity
Frequency Response	40Hz – 20KHz
Sensitivity	-47±3dB@1KHz
Temperature Range	-10ºC - +40ºC

Prod Model:	U9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Receiver Size:	48021050mm
Application:	Conference
Sound Channel:	Mono
Signal Transmission:	Wireless
Wireless Technology:	UHF
Output Impedance:	50-1000Ω
Connector(',s):	XLR 3 Pin

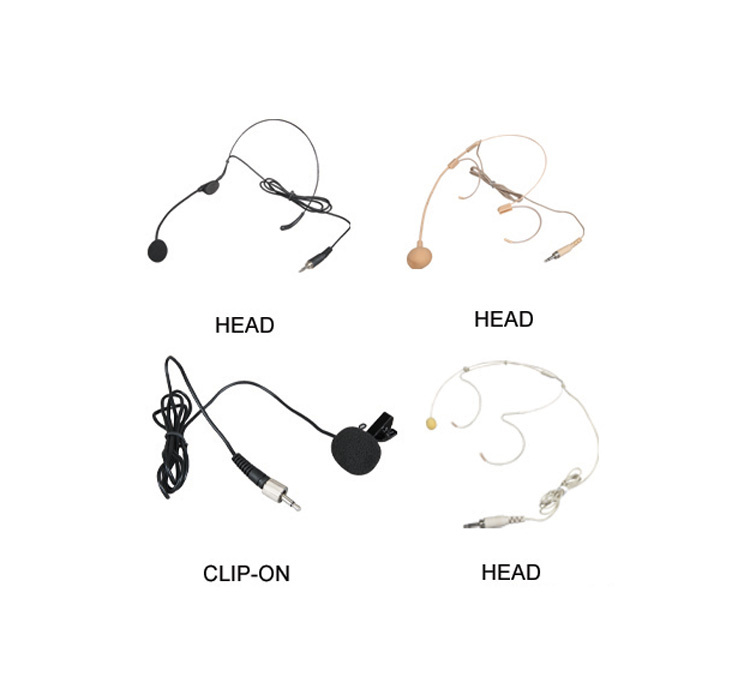

Style:	Headset Mic, Clip-on Mic, Handheld Mic
Directivity:	Super Heart-Shaped Directivity
