Shenzhen Xinjiaye Electronics Technology Co., Ltd. >> High Quality Copper LED PCB Board/Double Side LED Circuit Board

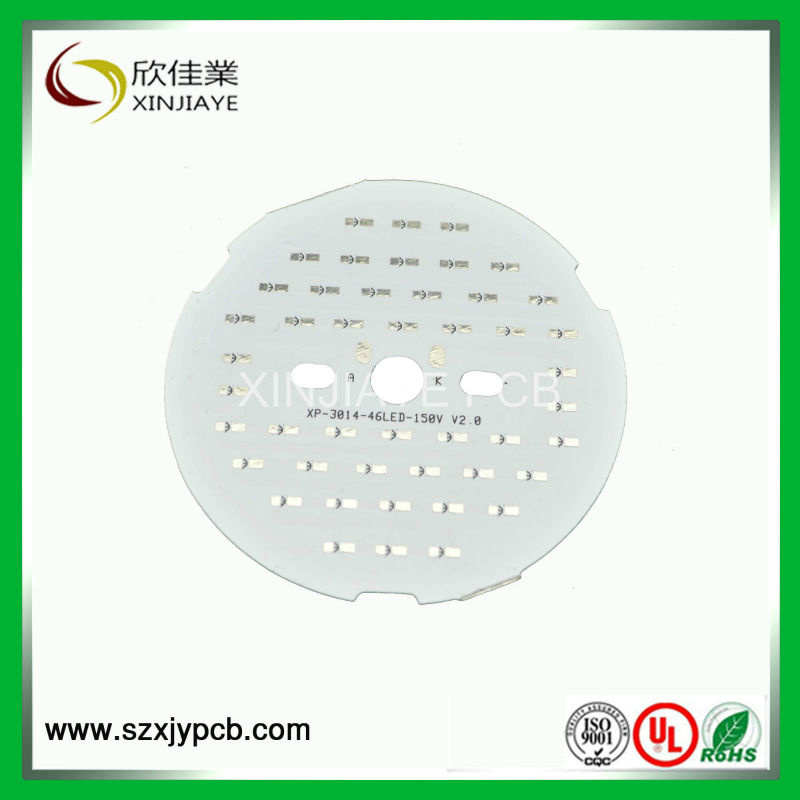

High Quality Copper LED PCB Board/Double Side LED Circuit Board

Name: High Quality Copper LED PCB Board/Double Side LED Circuit Board
Brand: china-manufacturer-directory.com
SKU: 700635112
Availability: InStock
Rating: 4.6 (117 reviews)

Supplier:	Shenzhen Xinjiaye Electronics Technology Co., Ltd.
Price:	US $ 0.1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	XJY-PCB 211
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness:	0.21mm to 7.0mm
Layer:	1 to 28 Layers
Meterial Type:	Fr-4, Cem-1, High Tg, Fr4 Halogen Free, Rogers
Copper Thickness:	1oz
Min Line Width:	3mil
Min Line Spacing:	3mil
Min Hole Size:	0.2mm
Solder Mask Color:	Green, Blue, White, Red, Ect
Package:	Vacuum
Certificate:	UL, RoHS, SGS, ISO 9001, Ect
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Welcome to XJY----------

Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields.

Quick Details

Place of Origin:	Guangdong China (Mainland)	Brand Name:	XJY PCB	Model Number:	xjypcb 211
Base Material:	FR4	Copper Thickness:	0.5 OZ to 7.0 OZ	Board Thickness:	1.6mm
Min. Hole Size:	0.2mm	Min. Line Width:	0.075mm(3 mil)	Min. Line Spacing:	0.075mm(3 mil)
Surface Finishing:Y	Immersion Gold & Immersion Gold

Currently, the use of the tablets is common as the cellphones but the large screen function is more popular. Tablet producers need more stable and long lifespan printed circuit board to support the large screen.

Here is the smart choice for you, double sided PCB board for tablets comes with 1.6mm board thickness and immersion gold surface finish, ONE piece order accepted.

Specification
Layers: 2L
Material: FR4
Board Thickness: 1.60mm
Surface Finish: HASL lead free
Surface Finish : Immersion Gold
Min Line Width : 0.075mm(3 mil)
Min Line Space : 0.075mm(3 mil)
Special Requirements : Board Thickness 0.40mm+/-0.05mm

Features

* Low water absorption rate

* Hard to be deformed

* High mechanical strength

* Good electric performance wether under the moist or dry environment, Flame retardant grade could reach 94-V0

* High temperature resistant,high dielectric performance and mechanical processing performance.

PCB manufacture and PCB assembly

* PCB board file with parts list provided by customer

* PCB board made, circuit board parts purchased by us

* PCB board with parts assembled

* Electronic testing circuit board or PCB

* Fast delivery, anti-static package

* RoHS Directive-compliant, lead-free

* One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test,

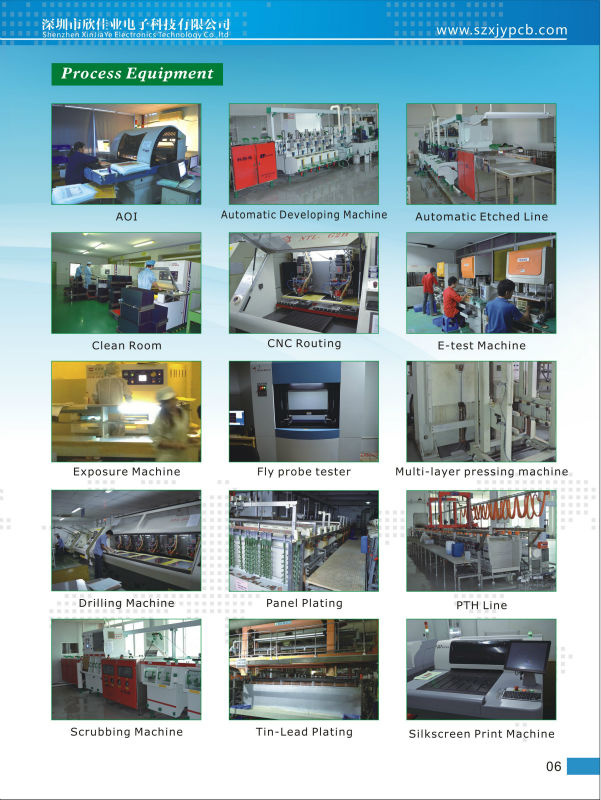

PCB manufacturer Testing procedures

* Visual Inspection

* Flying probe

* Impedance control

* Solder-ability detection

* Digital metallograghic microscope

* AOI (Automated Optical Inspection)

What we need

*For PCB enquiry, gerber file or any other pcb production file is needed. Any details are also welcomed if no Gerber file,

such as schematic or a sample.

*For PCBA enquiry,BOM(Bill of Materials) is needed besides.

*Reverse engineering and PCB clone services are available if given a sample.

Why XJYPCB or PCBA?

* We are professional PCB board manufacturer with 10 years' experience

* We are reliable, skillful and proficient PCB and PCBA service supplier.

* We are flexible supplier and can offer customizable orders and sampling service.

* We are innovative and can do OEM Assembly,Design,Prototype Service .

* We are full of technology and able to complete multilayer complex PCB board.

Application
XINJIAYE PCB offers OEM service for this type PCB board, which can be used for a wide range of Tablet sets.

Our Production Capability for PCB :

Layer	1 to 28 layers
Material type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board thickness	0.21mm to 7.0mm
Copper thickness	0.5 OZ to 7.0 OZ
Copper thickness in hole	>25.0 um (>1mil)
Size	Max. Board Size: 23 × 25 (580mm×900mm)
	Min. Drilled Hole Size: 3mil (0.075mm)
	Min. Line Width: 3mil (0.075mm)
	Min. Line Spacing: 3mil (0.075mm)
Surface finishing	HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
Tolerance	Shape tolerance: ±0.13
Tolerance	Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Certificate	UL, ISO 9001, ISO 14001
Special requirements	Buried and blind vias+controlled impedance +BGA
Profiling	Punching, Routing, V-CUT, Beveling
Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.

If you have any need for PCB & PCBA,welcome to contact me!

Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.

XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.

8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.

Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.

We are serving our customers all over the world and gain their testimonials.

Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.

Hi-Quality: Matching the requirements of advanced electronic products

Hi-Precision: Building up the conception of fabricating elaborate artwork, supplying hi-quality products

Special type: Insisting on the orientation of special feature, meeting the new and special requirements

Express lead time: Rapid response, delivery in short time.

XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
