Yueqing Maxwel Electric Co., Ltd. >> High Quality Digital DC Panel Meter 72 X 72

High Quality Digital DC Panel Meter 72 X 72

Name: High Quality Digital DC Panel Meter 72 X 72
Brand: China-Manufacturer-Directory.com
SKU: 704906295
Availability: InStock
Rating: 4.9 (96 reviews)

Supplier:	Yueqing Maxwel Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DP-D72V-DC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	72X 72mm
Phase:	Single
Consumption:	<3.2va
Max Signal Consumption:	< 0.3va
Theory:	Electronic Meter
Usage:	Meter for Industry and Home Use
Display:	Digital
Power Source:	DC

Product Description

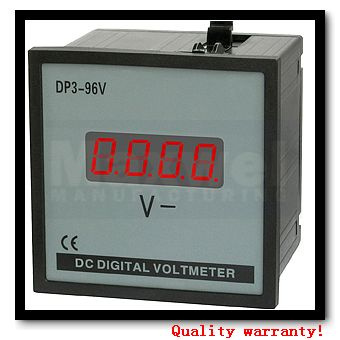

Digital DC Voltmeter

Model: DP-D96V-DC, DP-D72V-DC, DP-D48V-DC

Feature:

1. Display: 3 1/2 digital, LED display(red or green)
2. Accuracy: 0.5%± 1 digit
3. Auxiliary power: AC 110V± 10% 50/60Hz, AC220V± 10% 50/60Hz
4. Input signal: DC current
5. Measuring range: 0-600V DC or according to your own requirement
6. Consumption: <3.2VA
7. Max signal consumption: < 0.3VA
8. Operating environment: Temperature -10° C to +50° C humidity: ≤ 85%
9. Storage environment: Temperature -30° C to +60° C humidity: ≤ 70%
10. Heat resistance: Case of non-combustible plastic material
11. Voltage testing: Over 2000V
12. Fastening: By means of nuts, absolately safe, fast, robust, side-by-side.

Quality warranty!
Competive prices!

Digital meters ,DC
Nominal Size	96×96, 72×72, 48×48, 96×48, 72×36
Accuracy	+-0.5% +-bytes
For through current	0.1A 0.5A 1A 1.5A 2A 3A 4A 5A
For through voltage	50V 100V 200V 300V 400V 500V 600V
Transformation ratio	1- 9999A or 1- 9999KA
Transformation ratio	Adjustable
