Product Specifications
| Prod Model: |
2PGC600*750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crusher: |
Stone Crusher |
| Mining Equipment: |
Roll Crusher |
| Type: |
Roller Crusher |
| Application: |
Stone Industry |
| Drive: |
Electric |
| Crushing Style: |
Grinding & Impact |
| Crushing Degree: |
Intermediate Crusher |
| Finished Surface: |
Outer Surface Process |
| Color: |
According to Customers ' Needs |
Product Description
Machinery Factory of Gongyi City:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you

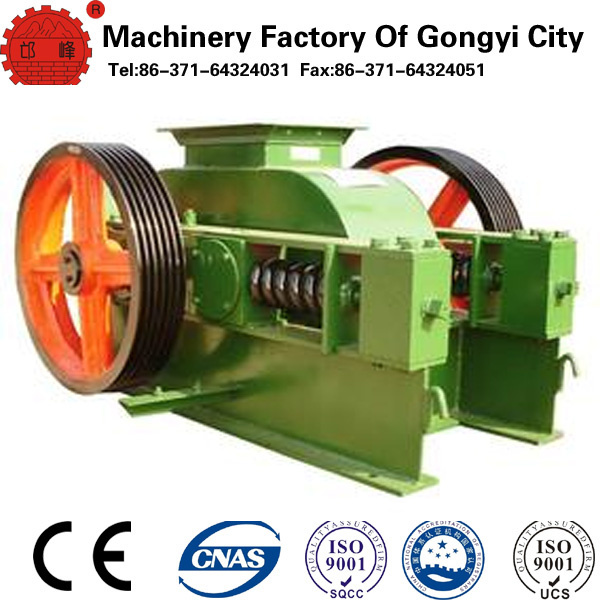

Double roll stone crusher introduction
This type double roll stone crusher could be widely used for mine industry,thermoelectricity industry.cement industry, ceramics industry, metallurgy industry, chemical industry, building material industry and so on.
Double roll stone crusher application
This stone crusher can crush various hard and soft stone and ores: quartzite, granite, basalt, iron ore, gold ore, copper ore, coal, limestone, phosphorus ore, asphalt and so on.
1- feed size <150mm, partical size 0.5mm -- 30mm, more granule,
2- the compression strength of the material is < 300Mpa,
3- the material moisture is < 30%, also used for wet material,
Double roll stone crusher working principle
Double roll crusher has two wear-resistant grinding rolls.Driven by the motor on both sides, the two rollers rotate inward to squeeze the material.
Firstly, feed the material is into the space between the two rolls from the tope inlet, the material suffered both extrusion and shear force from the two grinding roll.
Second, after the rolling, cutting and grinding of the rotating roll, the raw material is crushed into the required size.
Finally, the output product discharge from the below chute and sent out by the transmission equipment.
Double roll crusher specification
description
of goods |
specification and model |
input size(mm) |
output szie(mm) |
capacity (t/h) |
power (kw) |
protection mode |
transmission mode |
double roll crusher | 2PG0402PT | <10 | 0.5-5 | 1.5-10 | 6 | spring or hydraulic | V-belt or coupling |
| 2PG0404PT | <30 | 0.5-10 | 3-30 | 11 |
| 2PG0605PT | <40 | 0.5-20 | 6-50 | 30 |
| 2PG0806PT | <60 | 0.5-20 | 10-100 | 37 |
| 2PG0812PT | <60 | 0.5-20 | 40-180 | 74 |
2PG1008PT(Y) |
<80 | 0.5-30 | 15-130 | 60 |
| 2PG1212PT (Y) | <90 | 0.5-30 | 40-350 | 110 |
| 2PG1612PT (Y) | <110 | 0.5-30 | 60-420 | 150 |
| 2PG1816PT (Y) | <130 | 0.5-30 | 90-700 | 264 |
| 2PG2018PT (Y) | <150 | 0.5-30 | 100-900 | 400 |
