High Quality Ductile Iron 90 Degree Elbow with FM/UL Approval

Name: High Quality Ductile Iron 90 Degree Elbow with FM/UL Approval
Brand: China-Manufacturer-Directory.com
SKU: 706342432
Availability: InStock
Rating: 4.9 (79 reviews)

Supplier:	Weifang Yinuo Casting Co., Ltd.
Price:	US $ 1/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XGQT06
Markets:	North America,South America,Southeast Asia,Africa,Mid East
50:	83 3.267mm/in
Shape:	Equal
Angle:	90 Degree
Material:	Iron
Technics:	Casting
Certification:	GB
Color:	Red
Wall Thickness:	FM & UL

Product Description

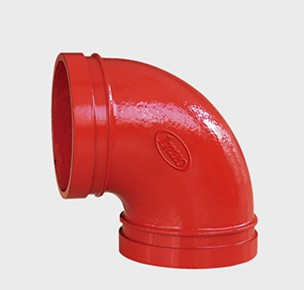

Name: 90° Elbow
Material: Ductile Iron (ASTM A536 Grade 65-45-12)
Gasket Material: EPDM/ Silicon Rubber/NBR
Surface Treatment: Epoxy-(Red/Blue/White), Painted-(Orange/Red), Galvanized
Size: 1"-12"
Working Pressure:300 psi
Certification: UL, FM, ISO 9001:2008
Connect Type: Grooved & Thread
Payment term: T/T, LC
Package: Cartons with pallet/ Wooden case

:
Application: As one of the most popular fittings in fire fighting systems, the grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, oil&gas pipeline, mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.

Size	Pipe O.D mm/in	90°Elbow
		Standard	Short
		L	L
DN in	mm in	mm in	mm in
25 1	33.7 1.327	57 2.244	57 2.244
40 1½	48.3 1.900	70 2.75	60 2.36
50 2	60.3 2.375	83 3.267	70 2.75
65 2½	73.0 2.875	95 3.74	76 2.99
100 4	114.3 4.500	127 5	102 4.016
150 6	168.3 6.625	165 6.5	140 5.511
200 8	219.1 8.625	197 7.75	175 6.89
250 10	273.0 10.750	229 9	215 8.464
300 12	323.9 12.750	254 10	245 9.646

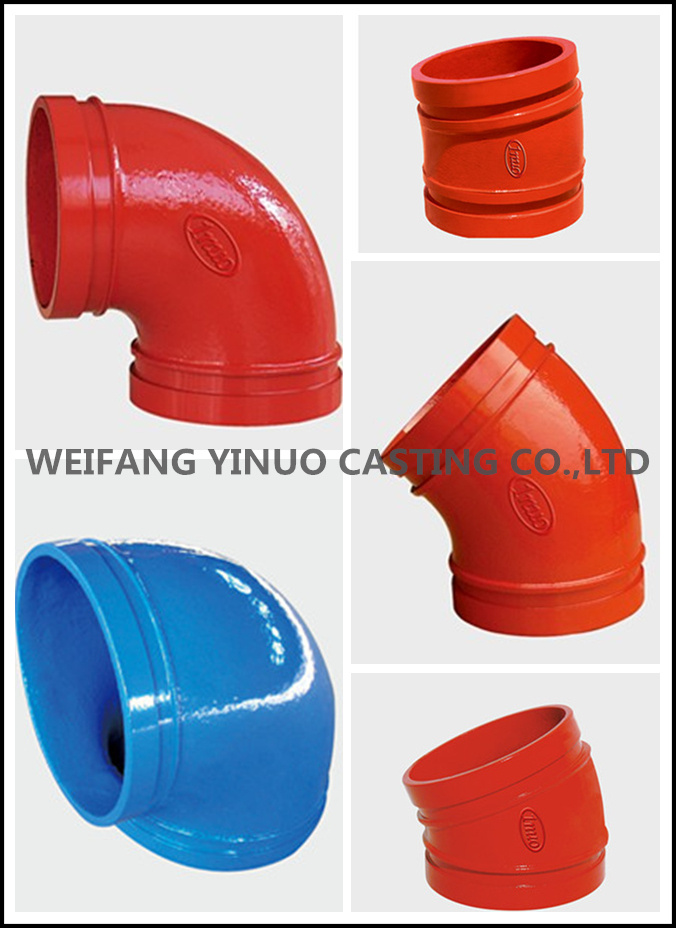

Our company is specialized in grooved fittings, valves and pipe processing of the Corrosion prevention. We make great contributions for improving the qualities and reducing the cost of the project in field of feed water, fire protection, mineral, electrical power. All grooved fittings & valves use the modern casting tooling of electric furnace smelting, auto-casting, vermicularizing control. The all machining use the CNC machine.
