High Quality Ductile Iron Grooved Split Flange with FM/UL Approval

Name: High Quality Ductile Iron Grooved Split Flange with FM/UL Approval
Brand: china-manufacturer-directory.com
SKU: 706310992
Availability: InStock
Rating: 5 (128 reviews)

Supplier:	Weifang Yinuo Casting Co., Ltd.
Price:	US $ 2.3/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XGQT19
Markets:	North America,South America,Southeast Asia,Africa,Mid East
50:	60.3 2.375mm/in
Standard:	FM & UL
Manufacturing Way:	Casting
Type:	Grooved
Material:	Iron

Product Description

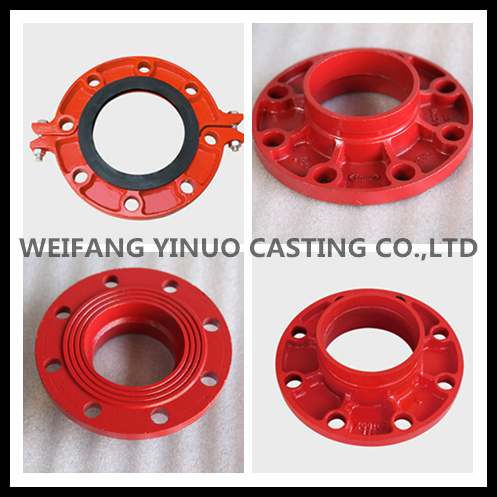

Grooved Split Flange
Material: Ductile Iron (ASTM A536 Grade 65-45-12)
Gasket Material: EPDM/ Silicon Rubber/NBR
Surface Treatment: Epoxy-(Red/Blue/White), Painted-(Orange/Red), Galvanized
Size: 1"-12"
Working Pressure:300 psi
Certification: UL, FM, ISO 9001:2008
Connect Type: Grooved & Thread
Payment term: T/T, LC
Package: Cartons with pallet/ Wooden case

:
Application: As one of the most popular fittings in fire fighting systems, the grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, oil&gas pipeline, mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.

Nominal Size mm/in	Pipe O.D mm/in	Working Pressure PSI/MPa	Dimensions mm/in				Bolt Size
Nominal Size mm/in	Pipe O.D mm/in	Working Pressure PSI/MPa	A mm/in	B mm/in	C mm/in	D mm/in	No.-Size mm
50 2	60.3 2.375	230 1.6	222 8.740	23 0.906	165 6.496	125 4.921	4-M16
65 2½	73 2.874	230 1.6	234 9.212	23 0.906	185 7.283	145 5.708	4-M16
100 4	114.3 4.500	230 1.6	278 10.945	24 0.944	220 8.661	180 7.086	8-M16
125 5.5OD	139.7 5.500	230 1.6	318 12.5	24 0.944	250 9.842	210 8.267	8-M16
150 6	168.3 6.625	230 1.6	346 13.622	24.5 0.965	285 11.22	240 9.448	8-M20
200 8	219.1 8.625	230 1.6	414 16.299	30 1.181	340 13.38	295 11.614	12-M20

Our company is specialized in grooved fittings, valves and pipe processing of the Corrosion prevention. We make great contributions for improving the qualities and reducing the cost of the project in field of feed water, fire protection, mineral, electrical power. All grooved fittings & valves use the modern casting tooling of electric furnace smelting, auto-casting, vermicularizing control. The all machining use the CNC machine.
