| Price: | US $ 15200/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

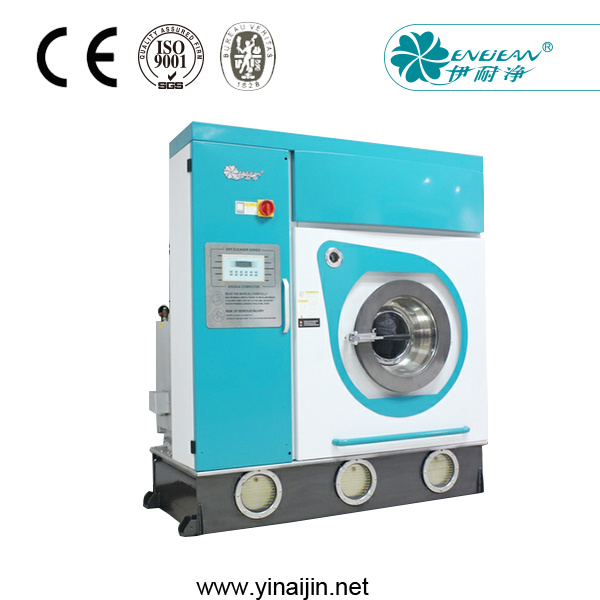

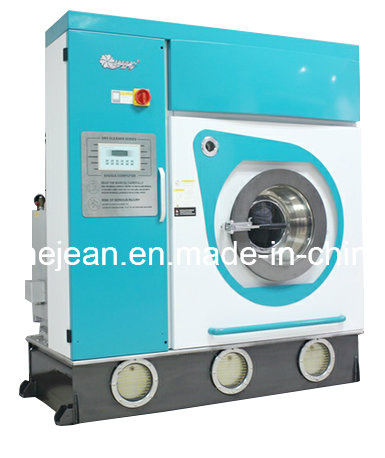

1.The new panel, three cylinder double filter structure, meet the requirements of high clean degree of light color ,
2. The dry cleaning is automatic control, use the power for 380 V.
3.Key components for high quality stainless steel, bearing used domestic comprehensive performance of the best bearing.
4.European style and beautiful outlook, reliable performance, economical and practical, for 15 to 20 after washing machine distillation once.
5.Computer board and VFD display ,with large diameter loading door, double temperature control distillation is safe and reliable.
6.Fluff collector, button collector, with the unique transparent design reduce solvent leakage, equipped with solvent box and sight glasses as washing function.
7.The dry cleaning machine rear of the valve are manual control, filter cleaning for electric operation.
Model | unit | YNJ-120DQ |
Water Capacity | KG | 6 |
Washing Cylinder | mm | 590×460 |
Capacity/Load Ratio | L/kg | 20 |
Washing Speed | r/min | 40 |
Spinning Speed | r/min | 400 |
No.1 Oil Cylinder Capacity | L | 70 |
No.2 Oil Cylinder Capacity | L | 70 |
No.3 Oil Cylinder Capacity | L | 100 |
Distillation Tank Capacity | L | 130 |
Nylon Filter Capacity | L | 25L/ piece |
Power of Washing Motor | Kw | 0.4 |
Power of Spinning Motor | Kw | 1.5 |
Power of Pump | Kw | 0.75 |
Power of Air Blower | Kw | 0.75 |
Power of Nylon Filter Motor | Kw | 0.37 |
Power of Drying Heater | Kw | 5.4 |
Distillation Power220V/380V | Kw | 5.4/7.2 |
Power of Compressor | kw |
|
Noise (< ) | dB(A) | 70 |
Weight of Whole Machine | KG | 700 |
Weight of Packing Case | KG | 70 |
Power Supply | V | AC220V /380V /50Hz |
(electric heating/external steam)Installde Capacity | Kw | 14/3.3 |
Pressure of Inlet Water | Mpa | 0.2--0.4 |
Pressure of Compressed Capacity | Mpa |
|
(no electricity heating type ) Steam Pressure | Mpa | 0.4-0.5 |
Water Consumption | Kw/h | 4.5/1 |
Water Consumption | L/h | 260 |
Compressed Air Consumption | L/h |
|
(no) pressure type Steam Consumption | KG/h | 22 |
Contour Dimension | mm | 1490×1080×1680 |
Contour Dimension of Pac | mm | 1600×1200×1800 |
(electric heating/external steam) Power Input Wire | mm² | 6/2.5 |
Compressed Air Inlet | mm |
|
Water outlet | inch | G1/2 |
Water Inlet | inch | G1/2 |
External Steam Inlet | inch | G1/2 |
External Steam Outlet | inch | G1/2 |
Our products
Our certificateds
Related products
Company information
Guangzhou ENEJEAN Washing Equitment Manufactory CO.,Ltd is one of high-tech enterprises which including the development , production and sale of dry cleaning equipment , washing equipment , laundry equipment , shoes washing and repairing equipment and so on . We have our own factory and enjoy a good reputation in commercial washing machine line .If any of our products be of interest you , please feel free to let us know and contact us.
Contact us
Guangzhou ENEJEAN Washing Equipment Manufacturing Co. Ltd.
| Prod Model: | YNJ-120DQ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: | High Pressure Cleaner |
| Condition: | New |
| Place Of Origin: | : Guangdong, China (Mainland) |
| Brand Name: | Enejean |
| Model Number: | Ygx |
| Feature: | Critical Cleaning / Residue Fre |
| Fuel: | Electric |
| Certification: | CE ISO |
| Use: | Container / Bottle Cleaning, Reliab |
| How To Use: | Automatic |
