Product Specifications
Prod Model: |
6641 |
Markets: |
North America,Africa,Oceania,Mid East,Eastern Asia |
Thickness: |
0.17,0.20,0.25,0.30,0.35mm |
Width: |
1000mm |
Package: |
Carton and Pallet |
Storage Life: |
1 Year |
Application: |
Winding Wire Coating Insulation |
Type: |
Solid |
Chemistry: |
Organic Insulation |
Material: |
Paper |
Thermal Rating: |
F 155 |
Maximum Voltage: |
<10KV |
Product Description

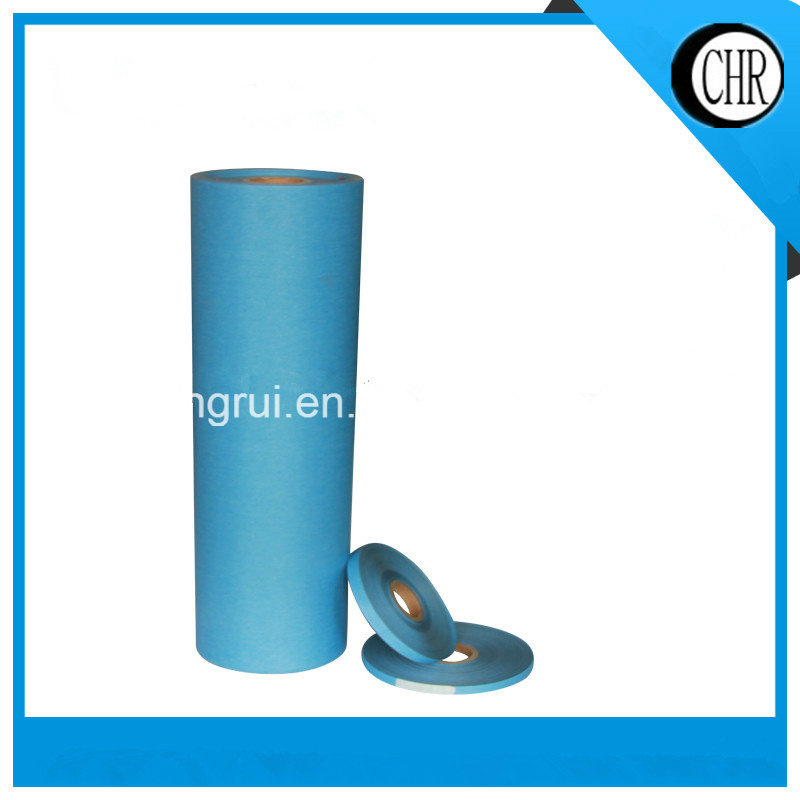

6641 F-DMD insulation paper
DMD CLASS-F polyester film flexible composite is made from high melting point polyester film and hot-rolling polyester fiber non-woven fabric. The polyester film and polyester non-woven fabric are bondedd by F-class adhesive.
Temp. Class F( 155 degree class)
Excellent dielectric property, high mechanical strength and immersing the function
As slot, interphase and liner insulations for F-grade motors and electric apparatus.
Availibity form: Roll, sheet, strip
Thickness: 0.17mm 0.20mm 0.25mm 0.30mm 0.35mm
Width: 1000mm Color: Pink, Blue and White
Form: In rolls.
Pacage: Carton and Pallet Storage life---1 year
Items | Unit | Values |
0.18mm | 0.20mm | 0.25mm | 0.30mm | 0.35mm |
Thickness tolerance | mm | +/-0.025 | +/-0.03 | +/-0.03 | +/-0.03 | +/-0.04 |
Density | g/m | 190+/-28 | 210+/-32 | 260+/-39 | 310+/-46 | 390+/-58 |
Breakdown voltage | KV | 8 | 9 | 11 | 13 | 15 |
Tensile strength,MD | N/10mm | 100 | 120 | 150 | 170 | 200 |
Ultimate elongation | % | 15 | 15 | 5 | 5 | 5 |
