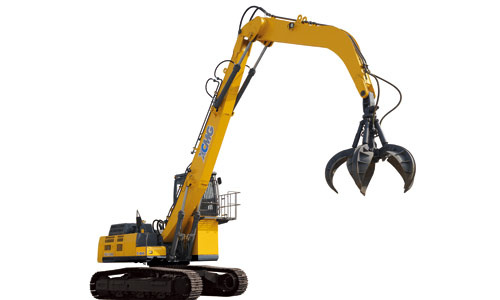

Excavator XE470C
Operating weight:46100KG
Standard bucket capacity:1.9-2.3m3
Cylinder amount:6
| XE470C |
| Model | Unit | XE470C |
| Operating weight | kg | 46100 |
| Standard bucket capacity | m³ | 1.9~2.3 |
| Engine | Engine Model | / | Cummins QSM11 |
| Direct injection | / | √ |
| Four strokes | / | √ |
| Water cooling | / | √ |
| Turbo charged | / | √ |
| Air to air intercooler | / | √ |
| No. of cylinders | / | 6 |
| Rated power/speed | kw/rpm | 250/2000 |
| Max. torque/speed | N.m | 1790/1400 |
| Displacement | L | 11 |
| The main performance | Travel speed | km/h | 5.4/3.2 |
| Swing speed | r/min | 9 |
| Max. gradeability | / | ≥30 |
| Ground pressure | kPa | 82.7 |
| Max.Bucket digging force | kN | 271 |
| Max.arm crowd force | kN | 231 |
| Max.traction force | kN | 338 |
| Hydraulic system | Main pump | / | 2 Plunger pump |
| Rate flow of main pump | L/min | 2×360 |
| Max pressure of prime relief valve | MPa | 31.4/34.3 |
| Max pressure of travel system | MPa | 34.3 |
| Max pressure of swing system | MPa | 28.4 |
| Max pressure of pilot system | MPa | 3.9 |
| Oil capacity | Fuel tank capacity | L | 650 |
| Hydraulic tank capacity | L | 360 |
| Engine lubrication | L | 38 |
| Overall dimensions | A Overall length | mm | 12030 |
| B Overall width | mm | 3580 |
| C Overall height | mm | 3842 |
| D Overall width of upperstructure | mm | 2995 |
| E Track length | mm | 5220 |
| F Overall width of undercarriage | mm | 3580 |
| G Crawer width | mm | 600 |
| H Track length on ground | mm | 4180 |
| I Crawer gauge | mm | 2392/2890 |
| J Clearance under counter weight | mm | 1360 |
| K Ground clearance | mm | 703 |
| L Min.tail swing radius | mm | 3665 |
| Working range | A Max. digging height | mm | 10675 |
| B Max. dumping height | mm | 7409 |
| C Max. digging depth | mm | 7337 |
| D 8inch horizonal digging depth | mm | 7117 |
| E Max. vertical wall digging depth | mm | 5225 |
| F Max. digging reach | mm | 11631 |
| G Min. swing radius | mm | 4909 |
| Angle of arm deflection | Degree | |
