Product Specifications
| Prod Model: |
BHD 3100 SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
30-70W |
| Luminous Flux: |
3300-7700 |
| Color Temperature: |
Pure White |
| IP Rating: |
IP67 |
| Emitting Color: |
Yellow |
| Irradiated Area: |
15-30㎡ |
| Input Voltage: |
220v |
| LED Chips Brand: |
Philips Lumileds |
| Lamp Body Material: |
Aluminum Alloy |
| Base Type: |
E40 |
| Certification: |
RoHS |
| Power: |
30-70W |
Product Description

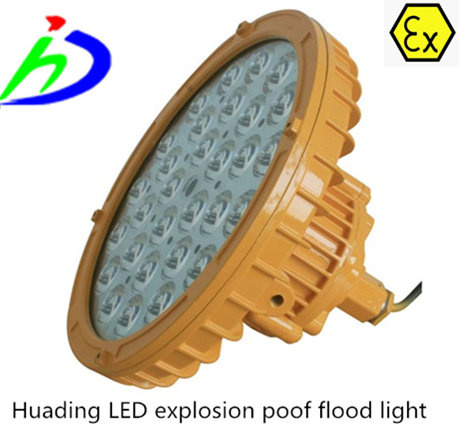

High Quality Explosion proof Lighting
Company profile:
Huading weiye Energy Technology Co., ltd is the leading manufacturer of Chinese explosion-proof industry. Our company specialized in manufacturing explosion proof light, explosion proof flood light, explosion high bay light, industrial light, high power street light etc...As the general affair unit of China Explosion proof Electric Association, we are the standing council unit of China energy saving technology and green energy association and China Hi-tech Association. We are dedicated to providing you high quality and durable lighting product. Please feel free contact us for any question or sample. Thanks. Welcome to visit our factory in China.
Features:
Δ Economical explosion proof light of LED reflector revolving type.
Δ Small and light product of aluminum which has excellent durability and anti-corrosion.
Δ Material: Filter-PC, Body-die-cast aluminum, Reflector-heat resisting, Lens-explosion proof tempered glass, Protection cage- SUS316L.
Δ Explosion proof glass: ExdIICT6GB
Characteristics:
1 BHD3100 series explosion-proof flood light adopted LED source design which is environment-friendly type. And this kind of lighting is small in size, light, long life, no pollution, free maintenance, safety, energy saving, durable etc.
2 The floodlight shell of ZL102 is made of high pressure die casting aluminum with high anti-corrosion and high intensity.
To reduce injuries resulting from lighting to labors during abnormal work.
Water proof O-rings are made from NBR rubber with good anti-aging and anti–corrosion performance.
Reflector is made of foreign material and effectively reduce death ray in secondary reflection.
Using integration structure design of lighting source accessories and shell, easy to installation and maintenance; Selection American lighting chips which is energy-saving, environment friendly, high light
Main application and applicable scope
Widely used for various dangerous outdoor or indoor lighting such as oil production, oil refining, metallurgy, coal, chemical industry, military industry, ocean oil platform, cruise ship etc.
This lighting is Class IIexplosion-proof electrical device with explosion-proof mark 'ExdIICT6GB, DIPA20TA, T6'.
This kind of LED lighting is suitable to explosion area zone1, zone2 and IIA, IIB, IIC explosive gas atmospheres.
Shipping:
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping. Or L/C, or Western Union for small amount.
2. Lead time: Normally in 5~10 days after deposit received.
3. Sample policy: Samples are always available for each model. Samples can be ready in 3~7 days once payment received.
4. Shipping port: Qingdao, China
5. Discounts: We offer discount for big quantity.
| Type | BHD3100A-30 | BHD3100A-40 | BHD3100A-50 | BHD3100A-60 | BHD3100A-70 |
| Rated power | 30W | 40W | 50W | 60W | 70W |
| LED quantity | 30 | 30 | 30 | 30 | 30 |
| LED type | Philips Lumileds | Philips Lumileds | Philips Lumileds | Philips Lumileds | Philips Lumileds |
| Certificate | ExdIICT6GB | ExdIICT6GB | ExdIICT6GB | ExdIICT6GB | ExdIICT6GB |
| Color temperature | 6000-6500 | 6000-6500 | 6000-6500 | 6000-6500 | 6000-6500 |
| CRI | >72 | >72 | >72 | >72 | >72 |
| Beam angle | >30° | >30° | >30° | >30° | >30° |
| Input voltage | 220V | 220V | 220V | 220V | 220V |
| Frequency | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ |
| PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| LED luminous efficiency | >120lm/W | >120lm/W | >120lm/W | >120lm/W | >120lm/W |
| Lamp luminous efficiency | >85lm/W | >80lm/W | >75lm/W | >70lm/W | >70lm/W |
| Efficiency | >90% | >90% | >90% | >90% | >90% |
| IP | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working life | >50000hrs | >50000hrs | >50000hrs | >50000hrs | >50000hrs |
| Temperature | -20ºC~+40ºC | -20ºC~+40ºC | -20ºC~+40ºC | -20ºC~+40ºC | -20ºC~+40ºC |
| Humidity | ≤85% | ≤85% | ≤85% | ≤85% | ≤85% |
| Body material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Size | 175*296mm | 175*296mm | 175*296mm | 175*296mm | 175*296mm |
| Net weight | 6.0KG | 6.0KG | 6.0KG | 6.0KG | 6.0KG |
